- Type
- 3D Print Files (STL, G-code, etc.)

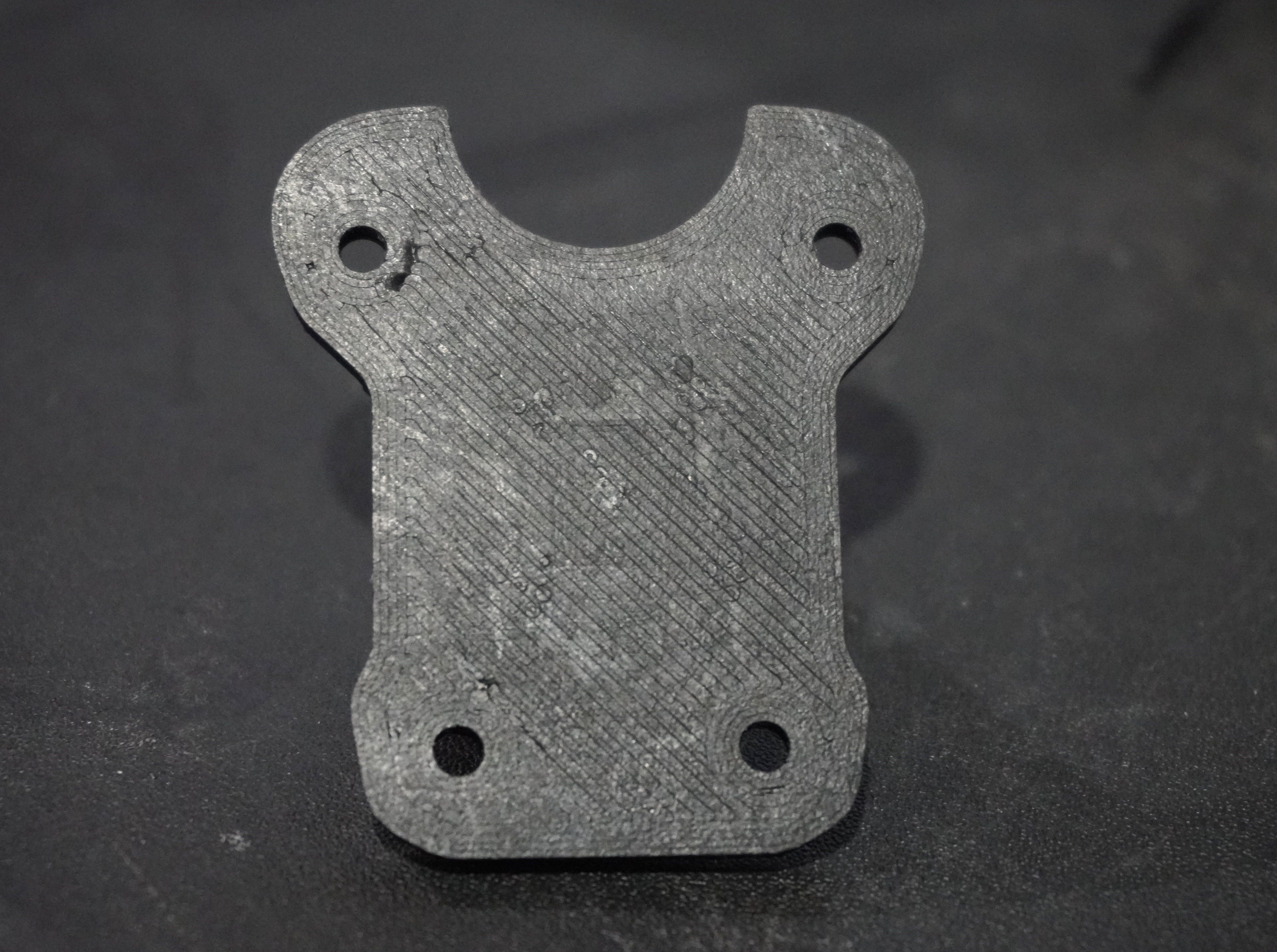

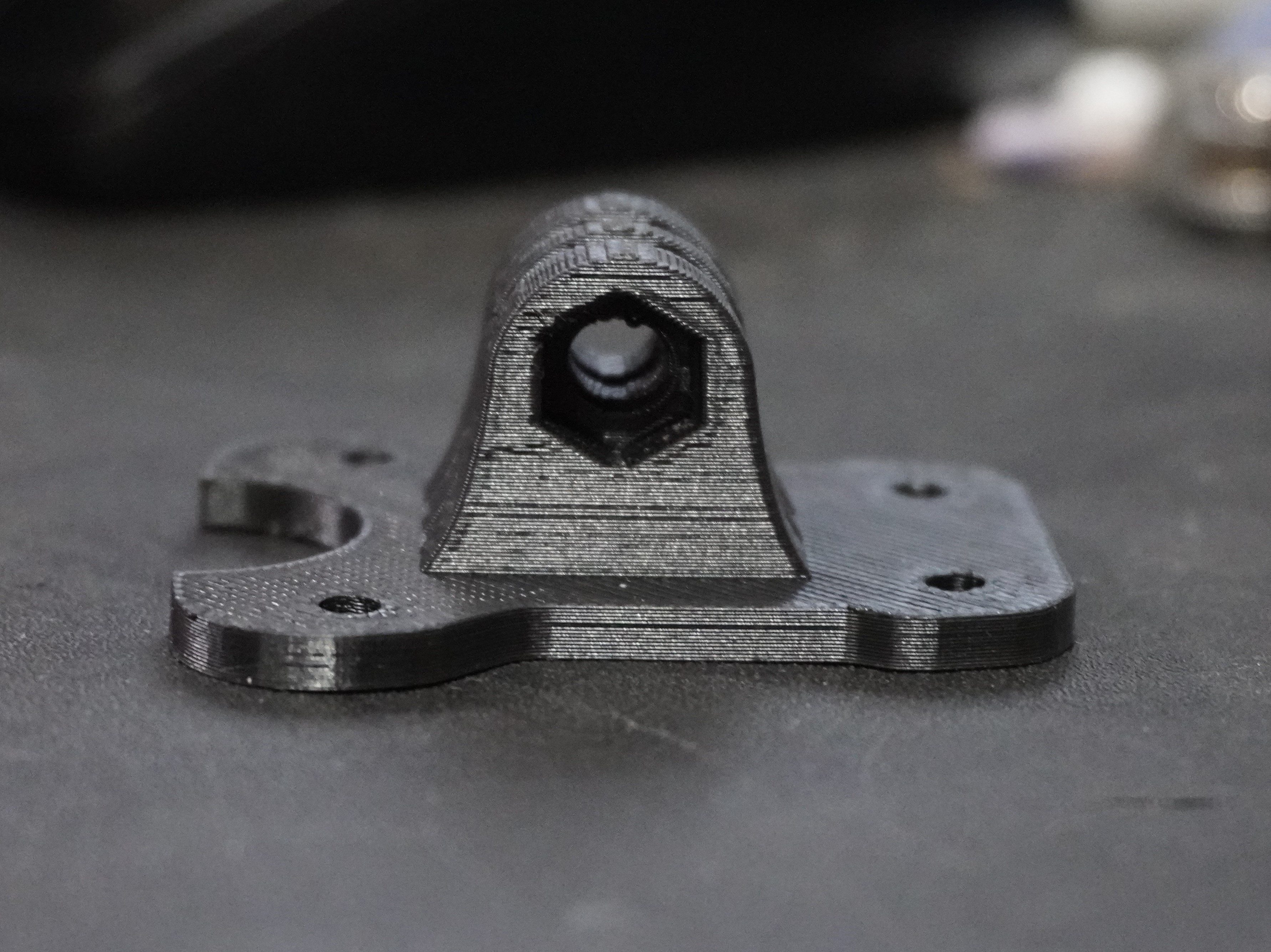

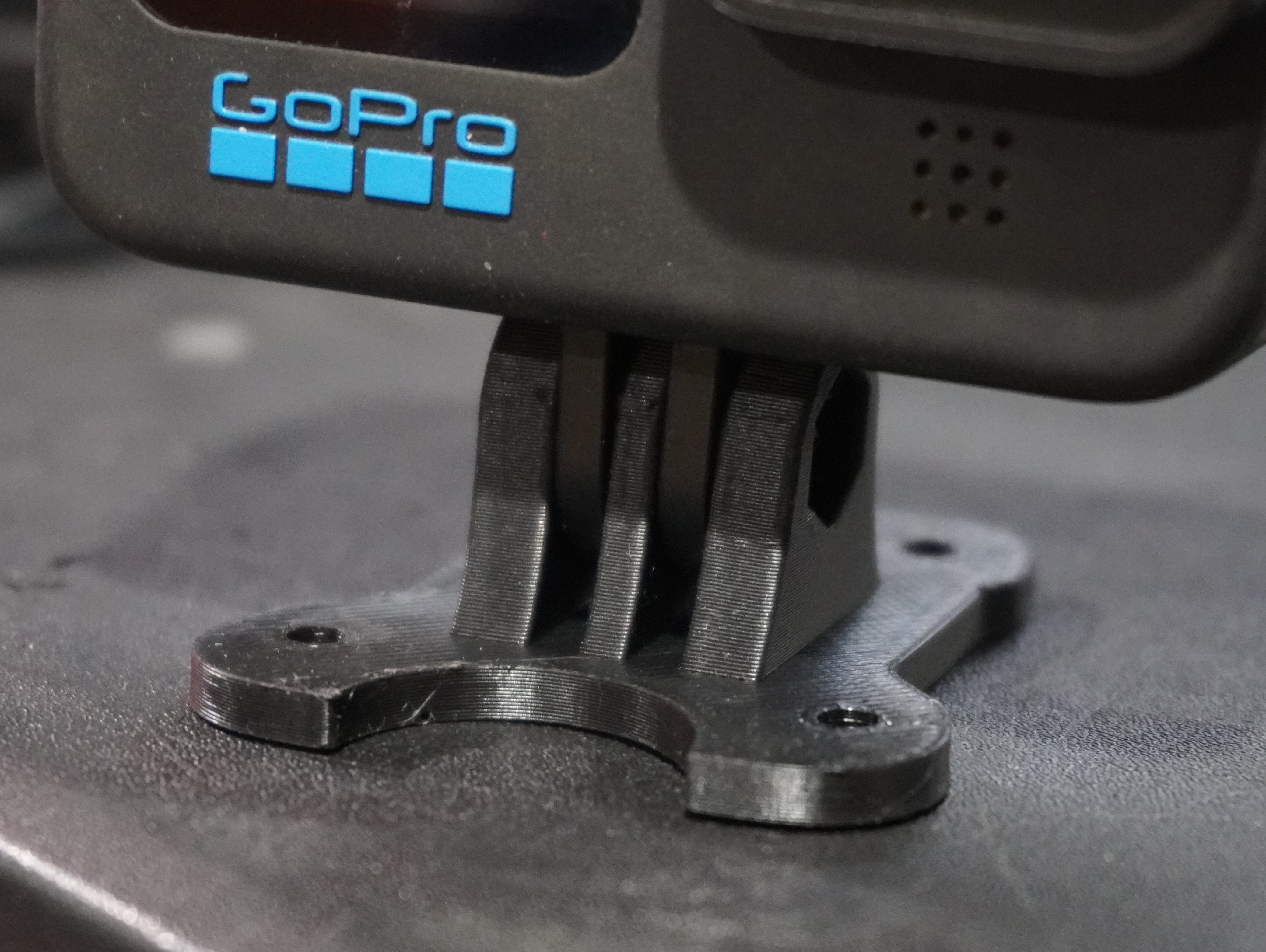

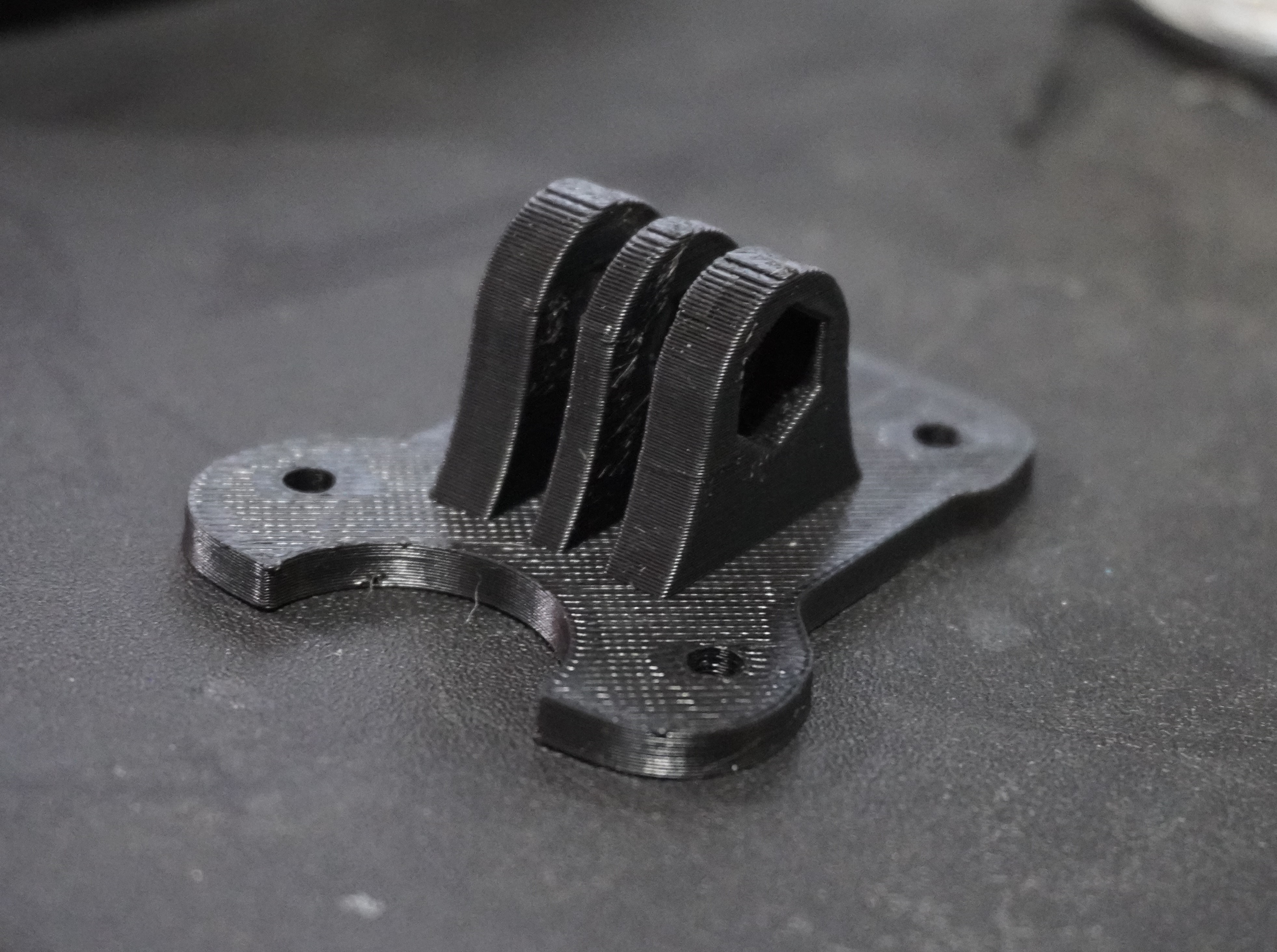

This is a bolt-on GoPro-style 3-prong camera mount designed for the Mark 4 FPV drone frame in the 5–7 inch size range. The flat base mounts directly to the frame using standard M3 bolts and provides a secure platform for action cameras that use the common 3-tab mounting system. A simple, solid mount for FPV flying and general action camera use.
Print Tips
- Filament: PETG or TPU recommended (PLA works but is more brittle)
- Layer Height: 0.20–0.24 mm
- Perimeters/Walls: 3-4
- Infill: 70-100% if TPU, 15-25% if PETG
- Supports: None
- Orientation: Base flat on the bed
- Brim: None
