Been thinking it would be a good have to have a thread for people to ask or share how they do stuff in 3D programs.



[Houndpup Rc]

I found this video helpful for "Lofting" in Onshape.



[Houndpup Rc]

For future reference, if in Onshape you accidentally delete your sketch and then restore it and you go to another part studio, and you have a ghost of the image that you had in the one where you accidentally deleted it, all you have to do is refresh the tab...If that doesn't work refresh the cache by holding down Ctrl and pushing F5 three times.



[Houndpup Rc]

Does anyone know how to do this fill in inkscape? @SP0NZ @Mr Man @Flying Cherokee



[Mr Man]

Does anyone know how to do this fill in inkscape? @SP0NZ @Mr Man @Flying Cherokee

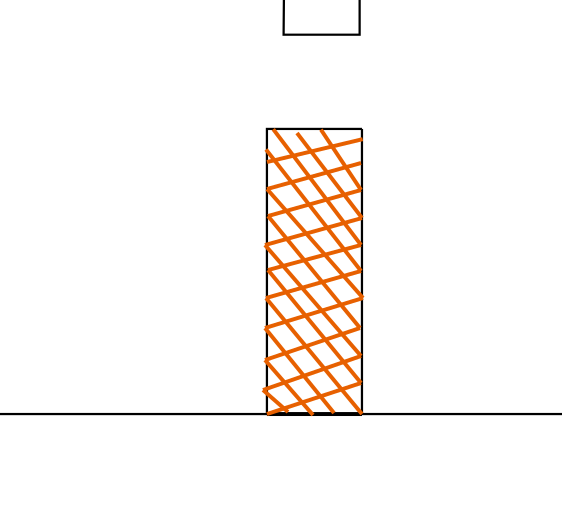

View attachment 249906

Yes, many lines and patience.



[Houndpup Rc]

Yes, many lines and patience.

oooohhhh.😞



[Houndpup Rc]

oooohhhh.😞

I was hoping there was a easy way.



[Flying Cherokee]

Well if you make the pattern you can always copy and paste as much as you like. But for now I have been leaving it blank in between, but that will be changing……..



[Houndpup Rc]

Well if you make the pattern you can always copy and paste as much as you like. But for now I have been leaving it blank in between, but that will be changing……..

Yes, many lines and patience.

Also is there a way you can color a part of a line instead of the whole line?



[Flying Monkey fab]

Does anyone know how to do this fill in inkscape? @SP0NZ @Mr Man @Flying Cherokee
View attachment 249906

Are you wanting to draw your own or trace existing?
Anyway, not much different, you can find a plethora of videos on YouTube.
Not the best tool in my opinion though. I always start in Fusion and then just use Inkscape to color code.



[Houndpup Rc]

like around this box but not everything else?



[Houndpup Rc]

Are you wanting to draw your own or trace existing?
Anyway, not much different, you can find a plethora of videos on YouTube.
Not the best tool in my opinion though. I always start in Fusion and then just use Inkscape to color code.

Yeah that is what I am doing..Except I am using Onshape....Also have to use Inkscape to draw the fill for removing foam bevels ect.



[Flying Cherokee]

@Houndpup Rc you can draw over the line with the pen tool and use stroke type to change color as you want. At least that is how I do it.



[Flying Monkey fab]

Yeah that is what I am doing..Except I am using Onshape....Also have to use Inkscape to draw the fill for removing foam bevels ect.

Yes, onShape is a viable option.



[Houndpup Rc]

@Houndpup Rc you can draw over the line with the pen tool and use stroke type to change color as you want. At least that is how I do it.

I will try that thanks!



[Houndpup Rc]

How is this guys?



[Flying Cherokee]

How is this guys?

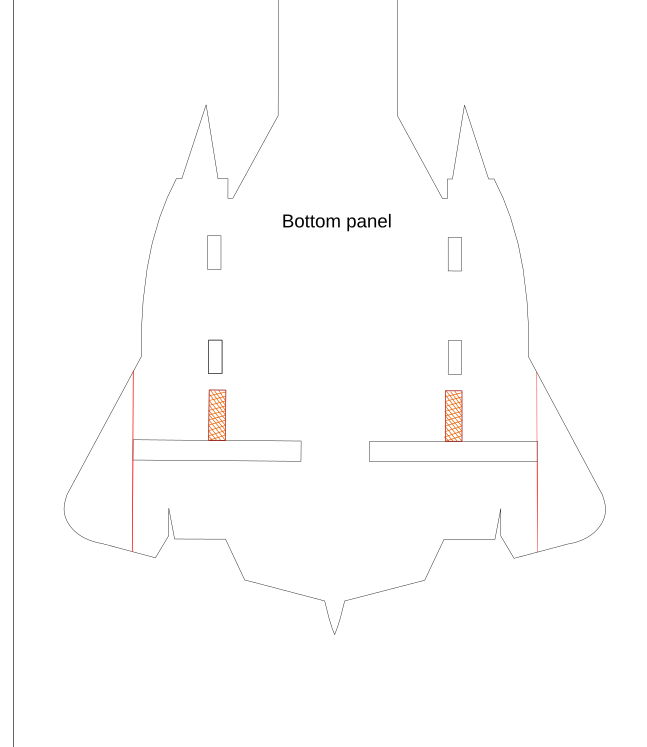

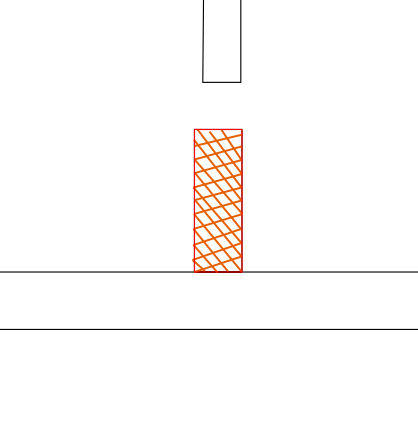

View attachment 249911

Looks good from here!



[Houndpup Rc]

Looks good from here!

Looks good from here too!



[Houndpup Rc]

You can also copy and paste it again and resize to your needs if you don't care abut the mesh being all the same size.



[Flying Cherokee]

You can also copy and paste it again and resize to your needs if you don't care abut the mesh being all the same size.

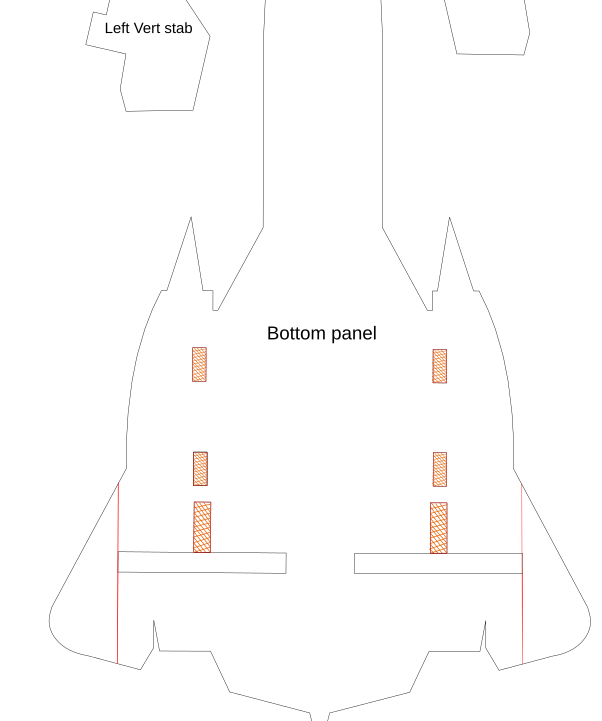

View attachment 249913

looks like you got the hang of it, good job!
