64mm EDF 777-9x

[Timmy]

Finally figured out the flaps

Those flaps are sick! Whats the mechanism behind them? It looks like they extend as well as hinge downwards?



[Firestar119]

Those flaps are sick! Whats the mechanism behind them? It looks like they extend as well as hinge downwards?

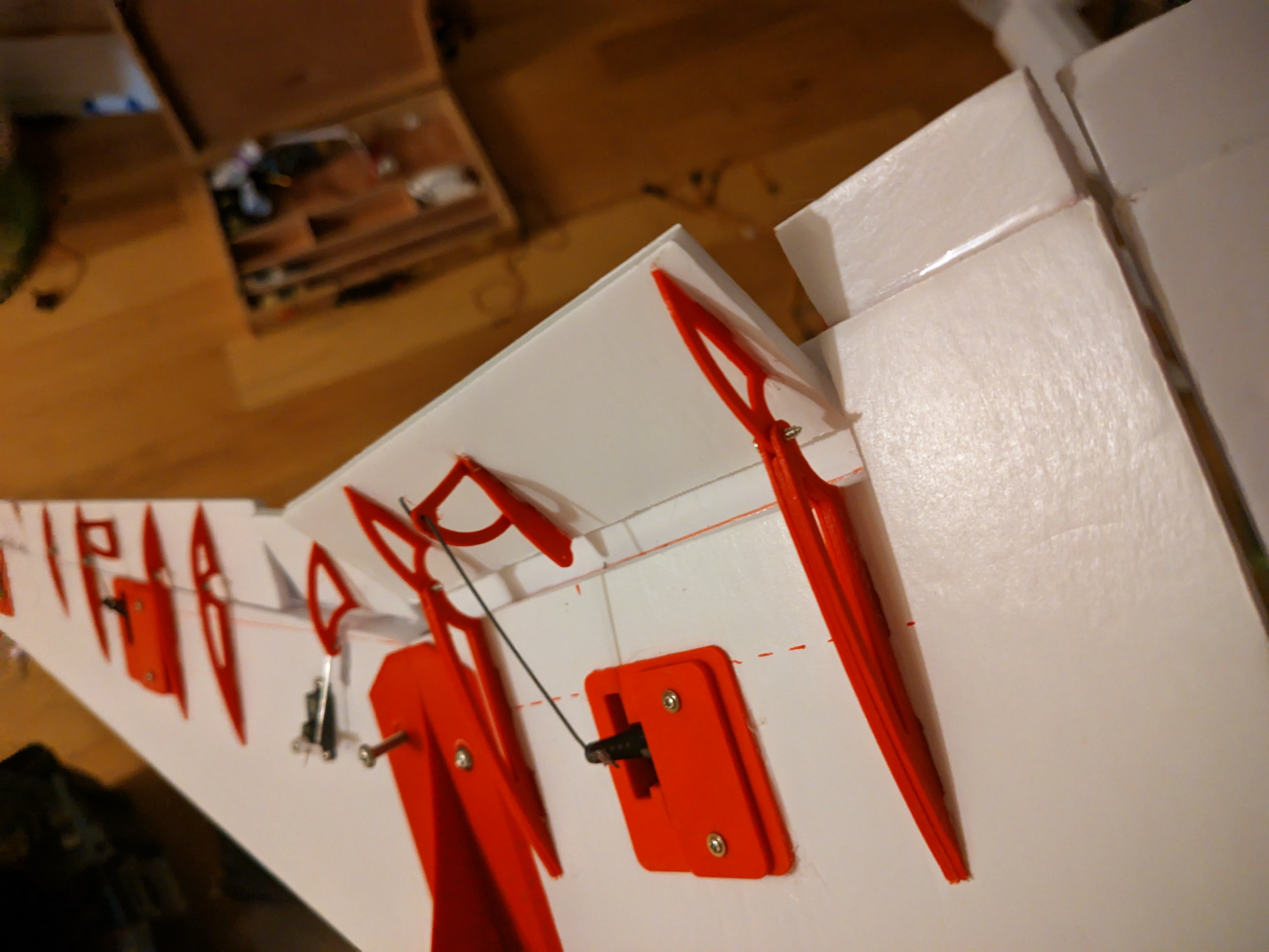

It's just a simple hinge mechanism

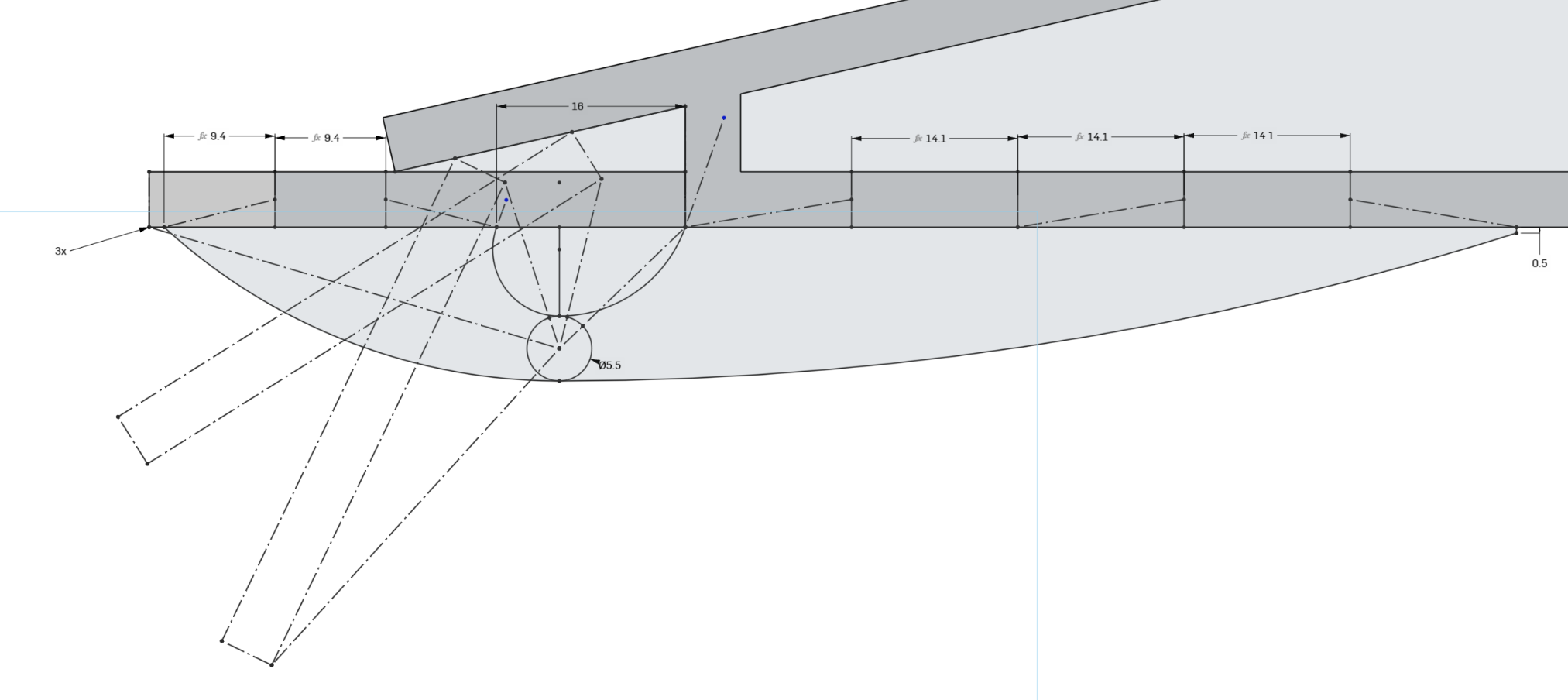

I used a sketch with a circular pattern to line it up properly in the cad

The pivot point of the hinge is fixed to 3 projections of the flap that are constrained to slide along the upper surface of the trailing edge



[Firestar119]

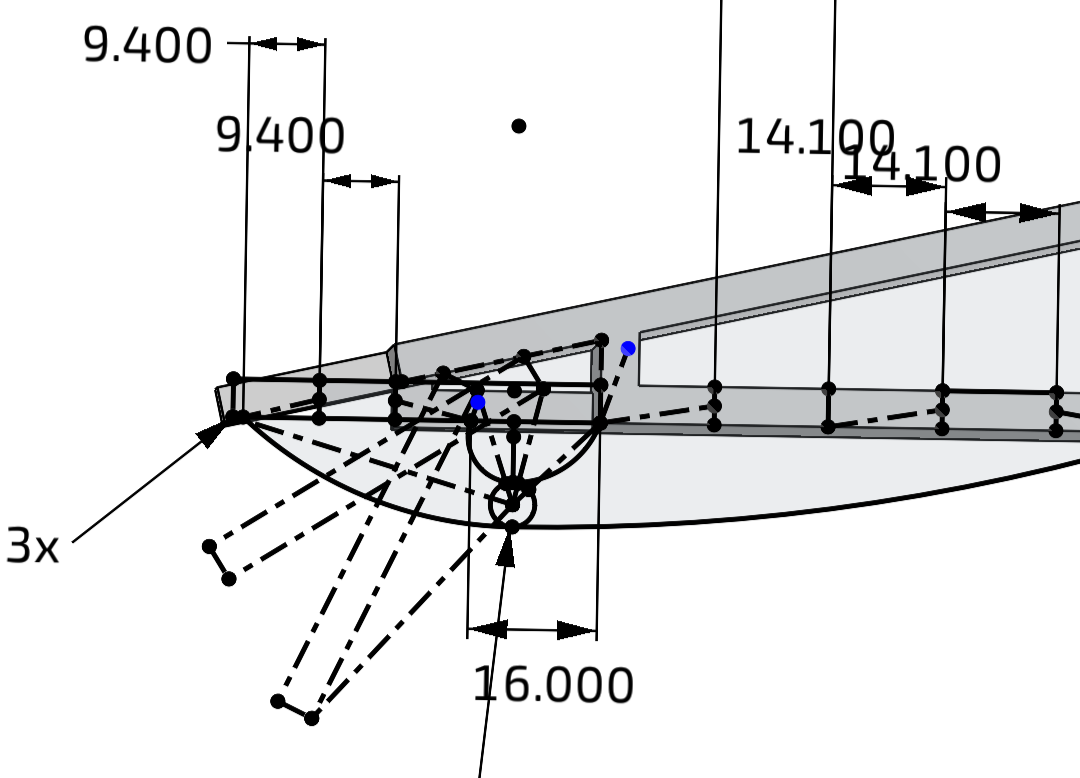

Here's a better screenshot



[Timmy]

Here's a better screenshot
View attachment 259483

That's pretty smart thanks!



[Firestar119]

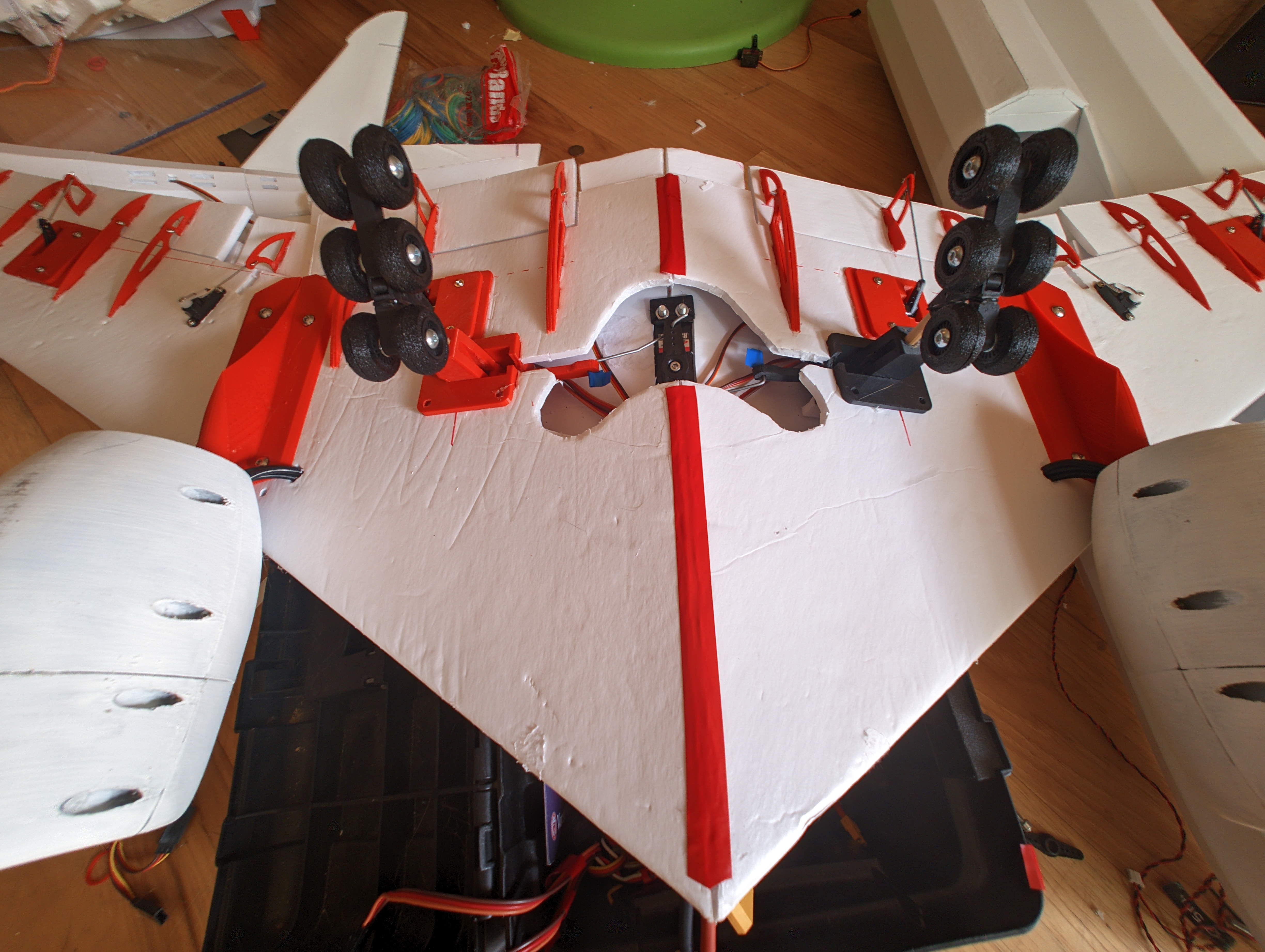

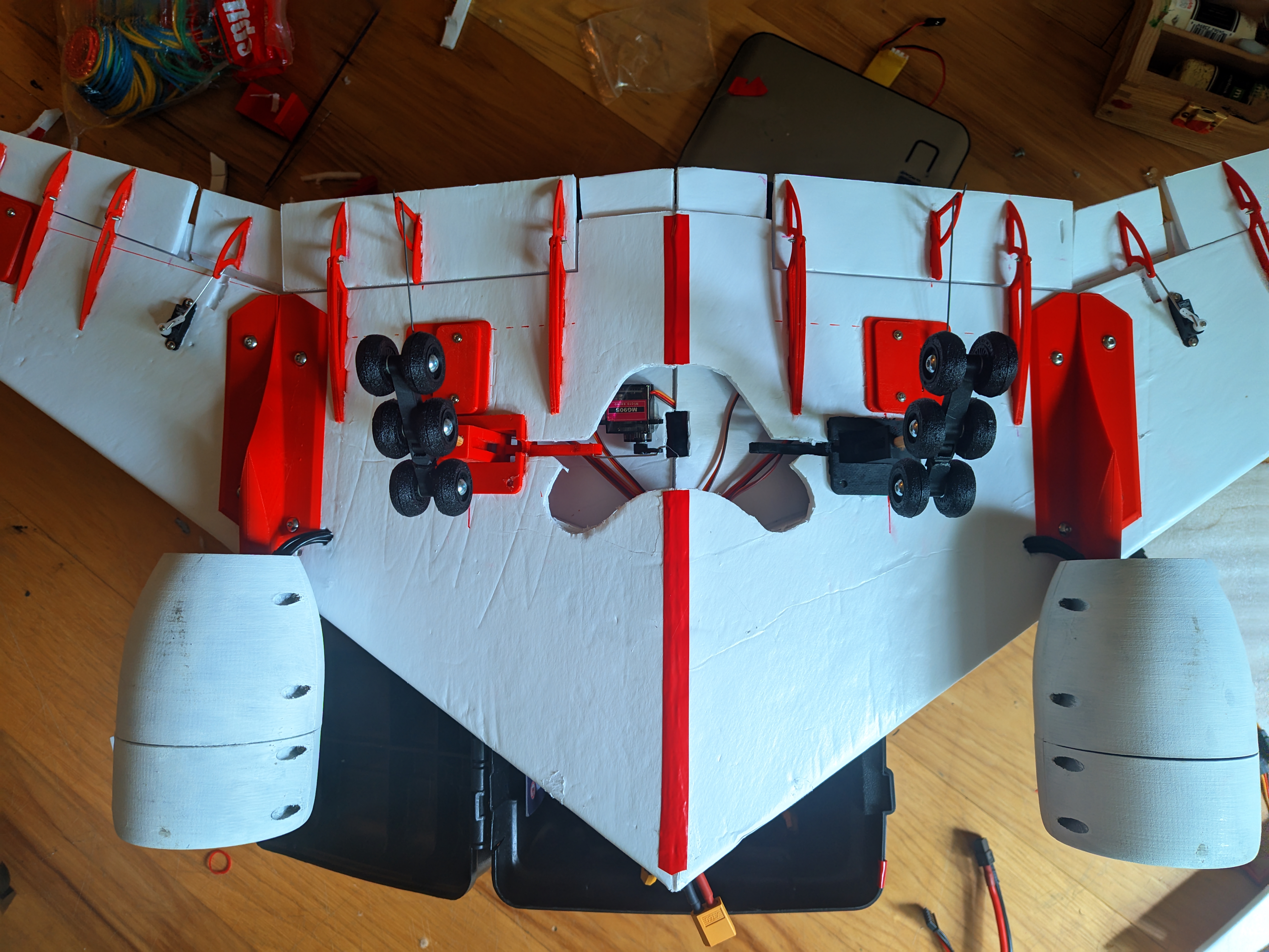

I don't think these servos are powerful enough to handle the landing gear

I guess I'll have to keep them locked open or use one standard size servo for both



[Firestar119]

The servo I saved from when I did robotics coming in clutch



[Firestar119]

So much for "shut off at 3.5v"

I almost fried a battery because one of the escs allowed the voltage to drop past 3v without cutting power



[Firestar119]

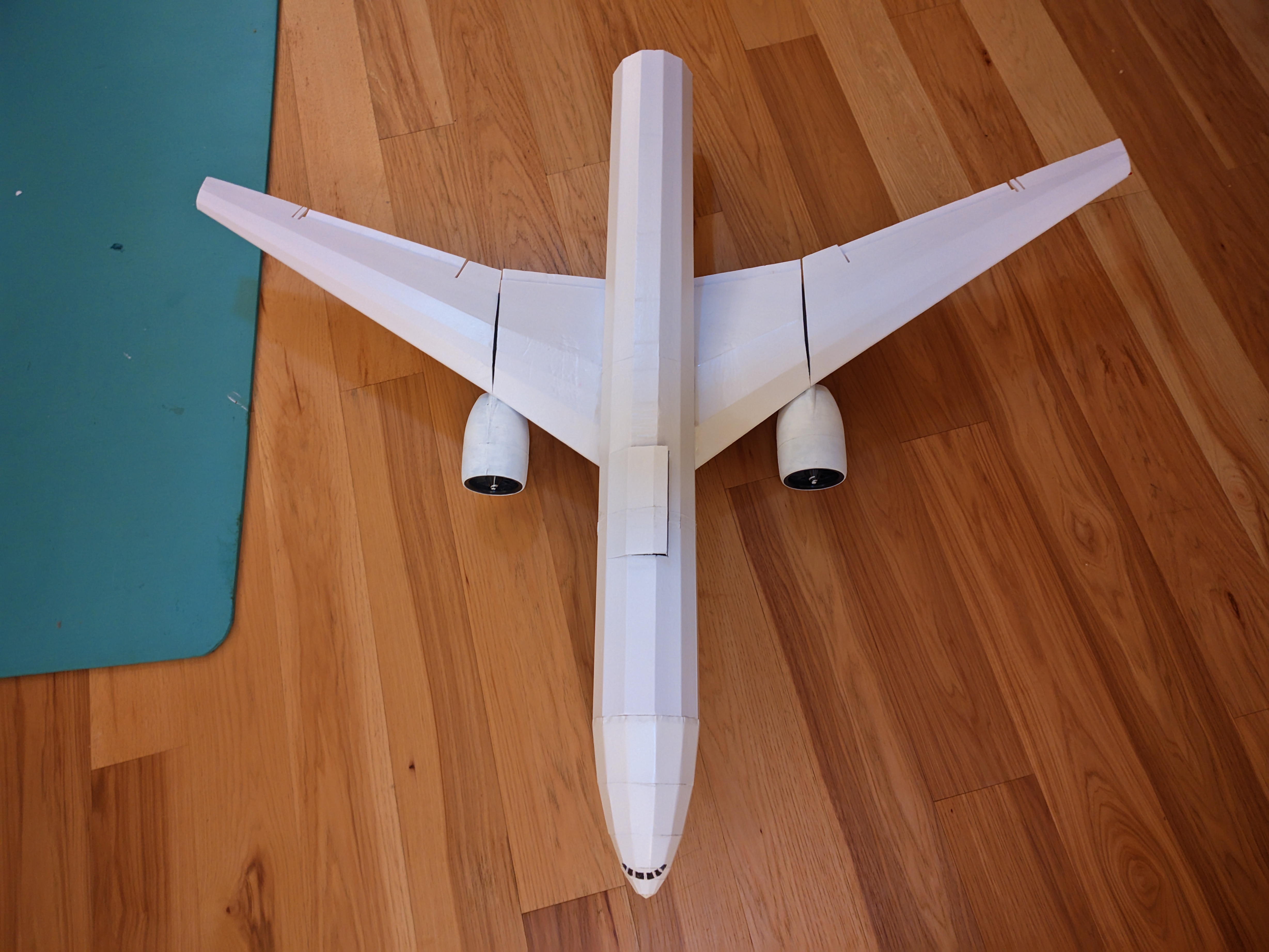

The mid and forward Fuselage sections are now attached



[Firestar119]

Now that I think about it, it won't be ideal to drive all the way to flite fest in one piece so I'm gonna leave the tail section off until then



[Firestar119]

Should've let us use the actual runway that's 5 feet away

handlaunching doesn't work



[Firestar119]

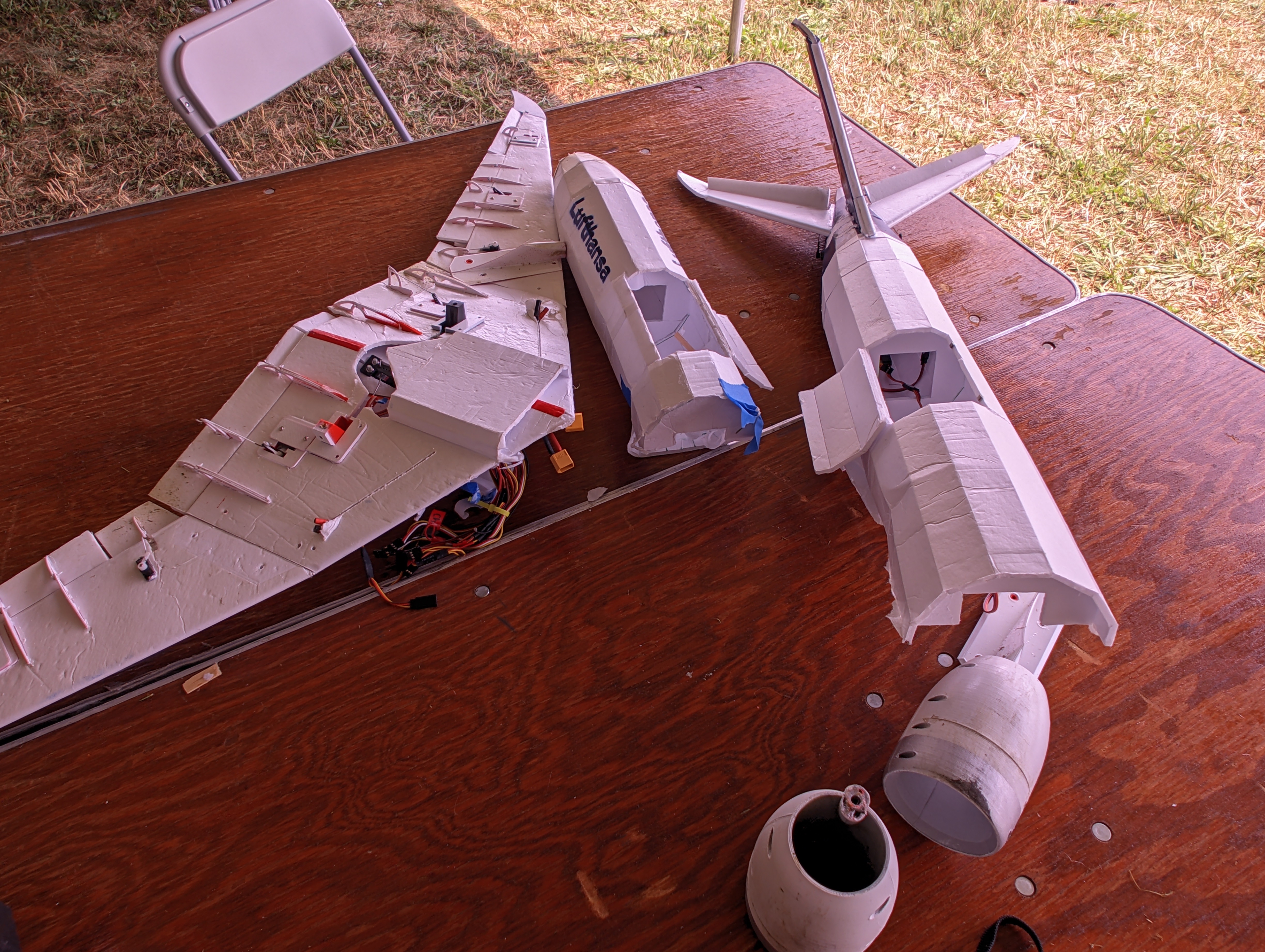

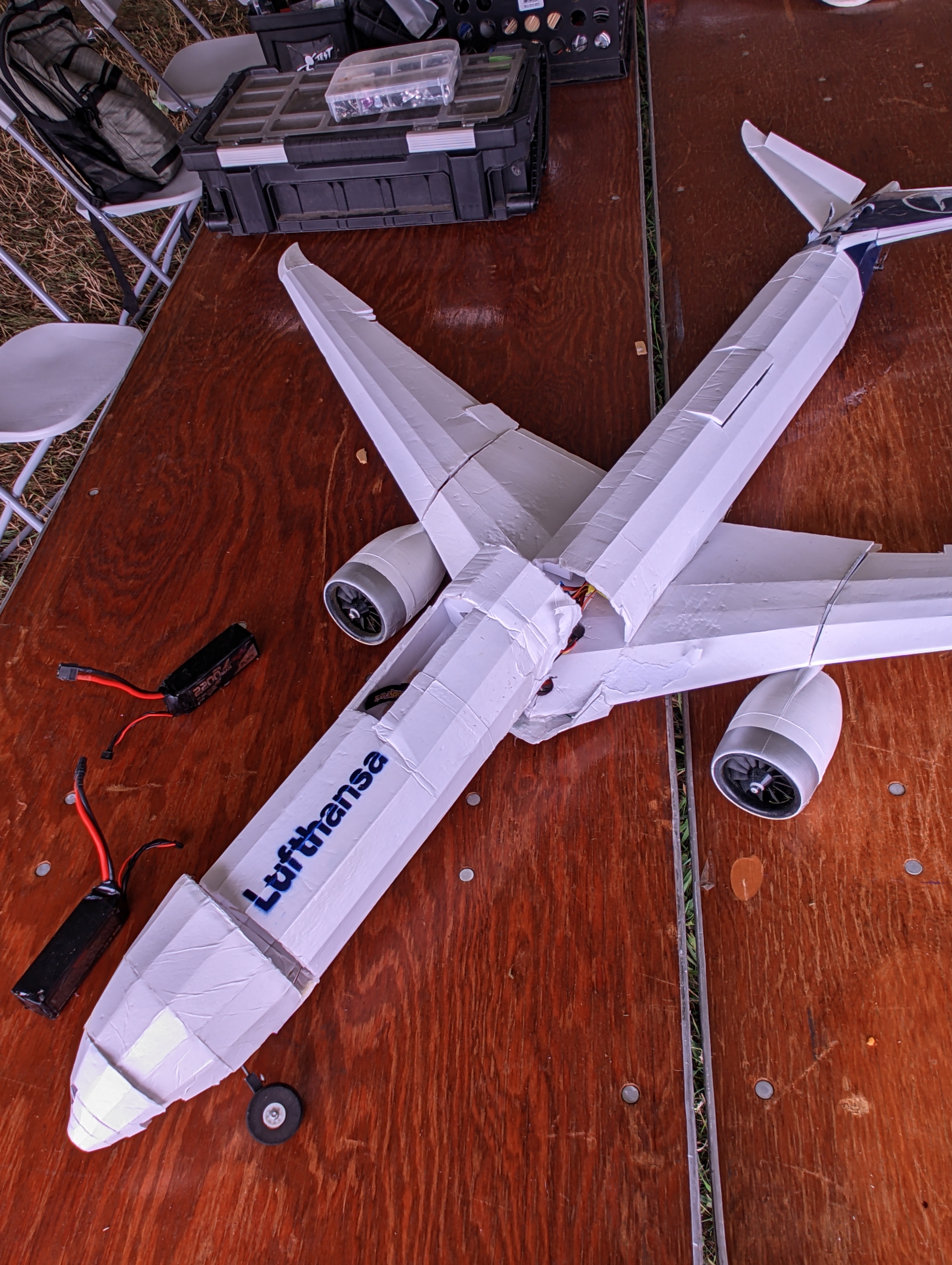

and then I fixed it and crashed it again, I don't think this thing has any roll authority even with the Inboards right in the airflow from the engines

well the wind didn't help either



[The Hangar]

Bummer! Rebuild time?



[Jo's squadron]

Awh that not fun to see, it was such a nice build. Do you have any pics of it finished before it crashed?



[Foamforce]

I’m surprised it didn’t have roll authority. Those outer ailerons are way out there. Maybe it just never got above stall speed?

I hope you try again! We need more nice looking airliners models out here. I saw you at FF when you were attempting to take off from the bumpy cloth runway. Better luck next time!



[Firestar119]

I’m surprised it didn’t have roll authority. Those outer ailerons are way out there. Maybe it just never got above stall speed?

I hope you try again! We need more nice looking airliners models out here. I saw you at FF when you were attempting to take off from the bumpy cloth runway. Better luck next time!

The wing is still fully intact, but I don't think I'll be building another one. One edf's fan shattered in the crash, and I'm just about to go to college so I probably won't have much time after drawing up and releasing the plans.
