72" Finless Combat wing

[Firestar119]

Since the last Flite Fest, I've been thinking about designs for a better combat wing for FF '25. Since my last wing had its fins damaged during combat, I started experimenting with finless wings and drag rudder yaw control shortly after the 2nd prototype of this combat wing. The newest iteration, v3, boasts a 72in wing (with 3d printed wingtip extensions), removable wing sections, and dual use drag rudders that can be used for yaw control and braking. Since my FF '24 wing took so much time to assemble, I decided upon a much simpler Flite Test style airfoil and box spar system.

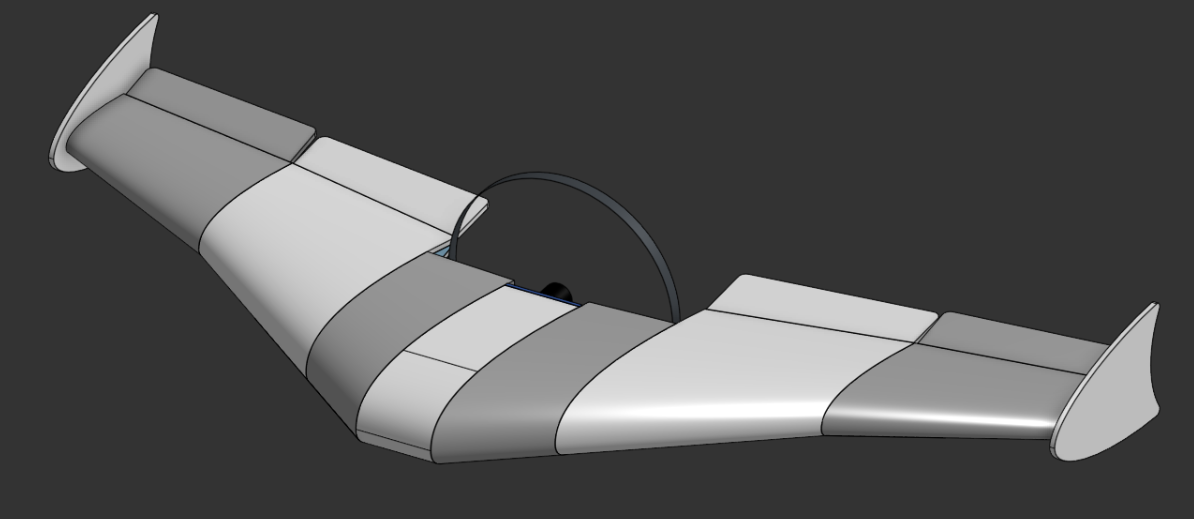

Cad Assembly in Onshape ^

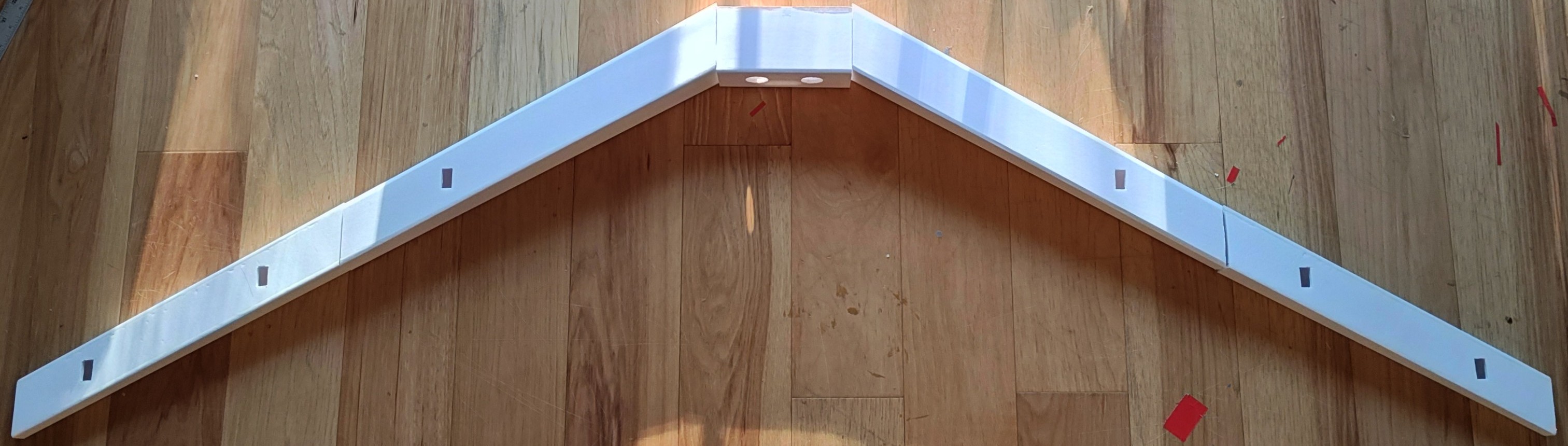

Spar Structure^

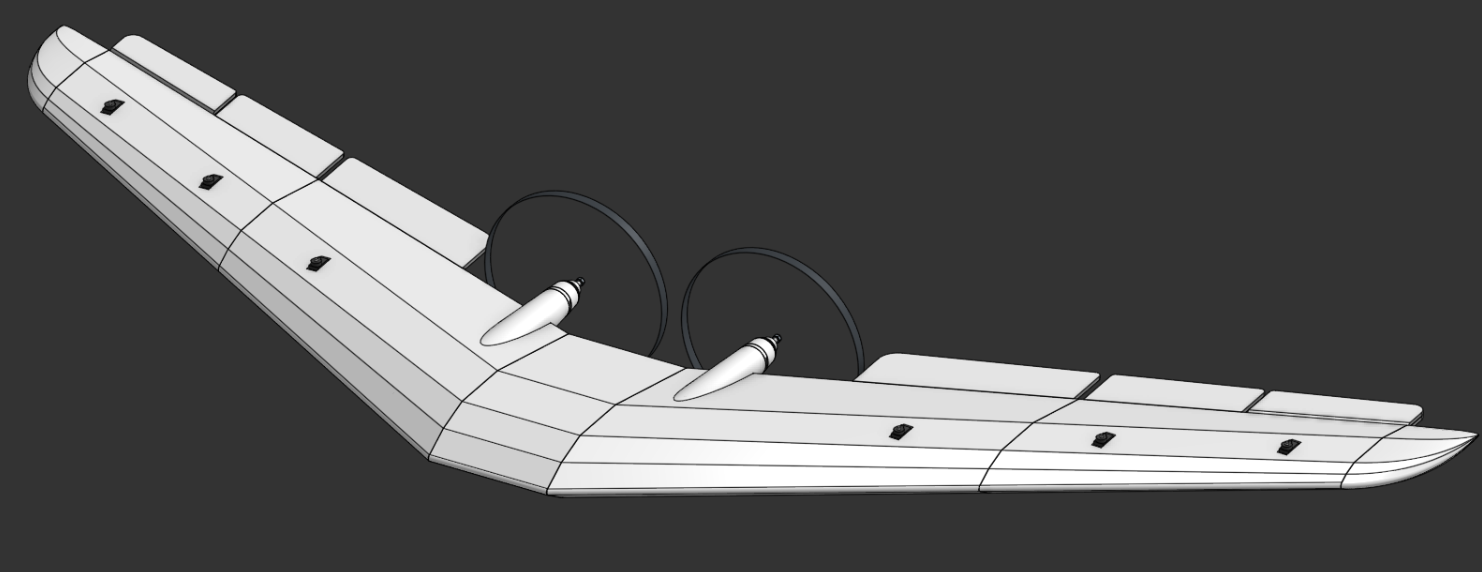

FF '24 design for comparison (40" wingspan)^

Plans are also attached below



[Mr Man]

Since the last Flite Fest, I've been thinking about designs for a better combat wing for FF '25. Since my last wing had its fins damaged during combat, I started experimenting with finless wings and drag rudder yaw control shortly after the 2nd prototype of this combat wing. The newest iteration, v3, boasts a 72in wing (with 3d printed wingtip extensions), removable wing sections, and dual use drag rudders that can be used for yaw control and braking. Since my FF '24 wing took so much time to assemble, I decided upon a much simpler Flite Test style airfoil and box spar system.

View attachment 250268
Cad Assembly in Onshape ^
View attachment 250266
Spar Structure^
View attachment 250267
FF '24 design for comparison (40" wingspan)^

Cool! Interesting to see how this pans out!👍



[Firestar119]

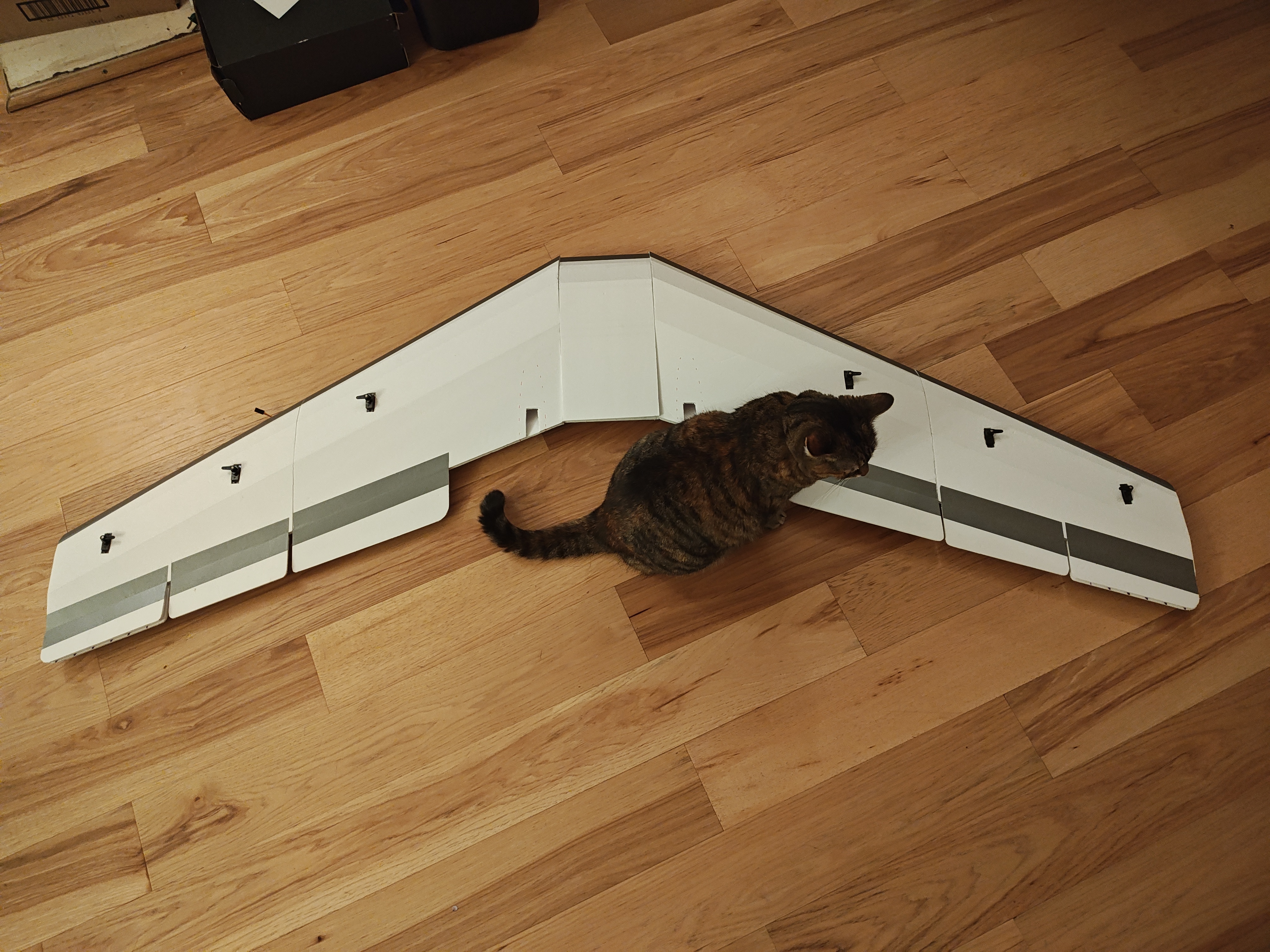

Wing sections are done (banana for scale)



[Houndpup Rc]

Wing sections are done (banana for scale) View attachment 250322

Turned out nice!



[Houndpup Rc]

Wing sections are done (banana for scale) View attachment 250322

Maybe the cat would like to go for a ride in the combat round....... 😂 😂 😂 😂



[Firestar119]

Maybe the cat would like to go for a ride in the combat round....... 😂 😂 😂 😂

She might just be over the max takeoff weight for this one....



[Houndpup Rc]

She might just be over the max takeoff weight for this one....

You could have a couple vertical motors on the wing tips to help lift it off the ground....Man if you hit anyone I think they would probably get knocked around a bit! (You could install a ejection seat so when you get knocked out of the sky she will make it down safe!) lol
JK



[Firestar119]

You could have a couple vertical motors on the wing tips to help lift it off the ground....Man if you hit anyone I think they would probably get knocked around a bit! (You could install a ejection seat so when you get knocked out of the sky she will make it down safe!) lol
JK

I actually was thinking to put an emergency parachute system for when I lose radio signal or lose track of it in combat, but it would be difficult to fit enough surface area inside of the wings



[LitterBug]

I liked the design last year where parchutes had strings hanging out the back of a plane. When other plane flew through them, they would get tangled in the prop, pull out and the other plane ended up parchuting down.



[Firestar119]

I liked the design last year where parchutes had strings hanging out the back of a plane. When other plane flew through them, they would get tangled in the prop, pull out and the other plane ended up parchuting down.

pieliker's combat wings are actually what inspired me to design this one



[Firestar119]

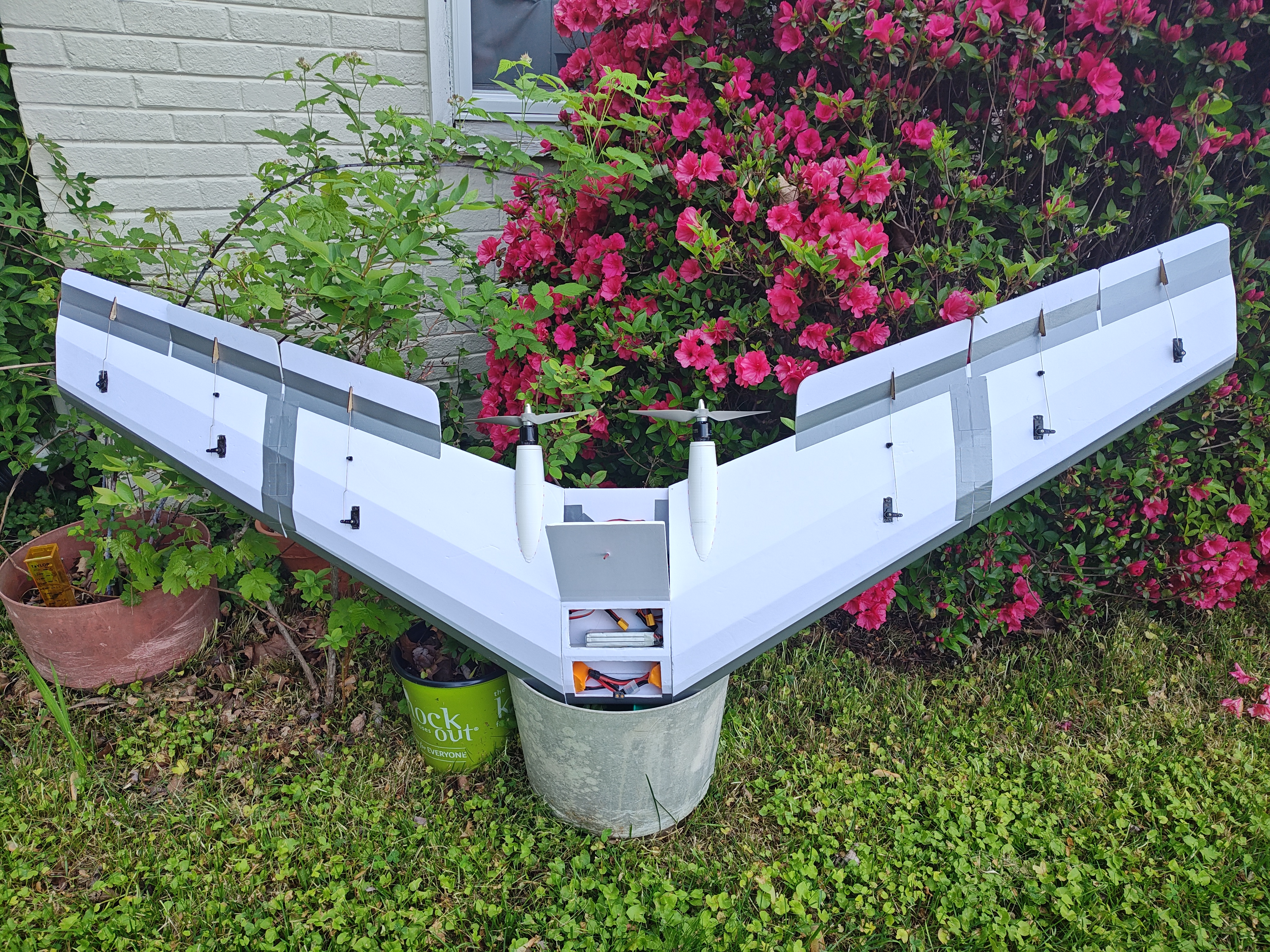

It is done (took 3 hours to route all of the wiring)



[Houndpup Rc]

It is done (took 3 hours to route all of the wiring) View attachment 250426

NICE!!!! Will be a shame to send that to combat! What motors are those?



[Firestar119]

NICE!!!! Will be a shame to send that to combat! What motors are those?

They are two surpass 2216 1120kv motors from amazon



[Houndpup Rc]

They are two surpass 2216 1120kv motors from amazon

Thought so. I have had a couple of those. Unfortunately they aren't the best quality as far as longevity...But they are powerful!



[Houndpup Rc]

But that's why you have them on a combat wing!



[Firestar119]

But that's why you have them on a combat wing

The only times I've really broke them are with damage from serious crashes where the wires get ripped out fully



[Houndpup Rc]

The only times I've really broke them are with damage from serious crashes where the wires get ripped out fully

I was flying in fog......But my Emax has been in mud, water ect.



[Houndpup Rc]

And brothers just smoked as he was flying along with his mustang...It looked really cool! lol



[Firestar119]

I was flying in fog......But my Emax has been in mud, water ect.

I guess the only time I've ever flown in rain was the last day of FF '24



[Houndpup Rc]

I guess the only time I've ever flown in rain was the last day of FF '24

It was right after rain in my case.
