F-22 Raptor Single 70mm EDF.

[noahangel11]

F22 Raptor 70MM Twin EDF DTFB RC Plane

John Flach (RC Skunkworks)

Rc-skunkworks

rc-skunkworks.godaddysites.com

Specifications

• Length: 1320mm (~52”)
• Wingspan: (954.4mm (~37.5”)

Electronics
Power:

• Qty-2 70mm EDF https://store.flitetest.com/70mm-ed...otor-2300kv/?searchid=0&search_query=70mm+edf
• QTY-2 ESC 80A https://store.flitetest.com/skywalk...s-and-xt-90/?searchid=0&search_query=70mm+edf

Batteries:

• QTY-2 3-Cell 4000 mah Lipo batteries wired in Series for 6S (A 63s pack will not fit in fuselage)

Servos:

• QTY-4 17G Servos

Receiver:

• 4 channel Minimum

Materials

• DTFB QTY-7 sheets, Dimensions 20” x 30”, 3/16” thick
• Carbon Fiber Rods for wing spar. 5mm max diameter, Length 289mm x 2, total 578mm
• Qty-4 8mm diameter Neodymium Rare Earth Magnets for Canopy/Battery Hatch https://www.homedepot.com/p/Master-...th-Magnet-Discs-10-per-Pack-07045HD/202526363

Full Plans:
https://drive.google.com/drive/folders/1SZV9FdDes3sXX5H1RKTeZ5I_C5yr4ORD?usp=sharing

Tiled Plans:
https://drive.google.com/drive/folders/1QjG7GbacU4To4w-Ij-zkMleBEZMtplEt?usp=sharing

Assembly instructions:
https://drive.google.com/file/d/1GkbtIE_s9gMr2xEe8IzO__gKtQwhIpz6/view?usp=sharing



[noahangel11]

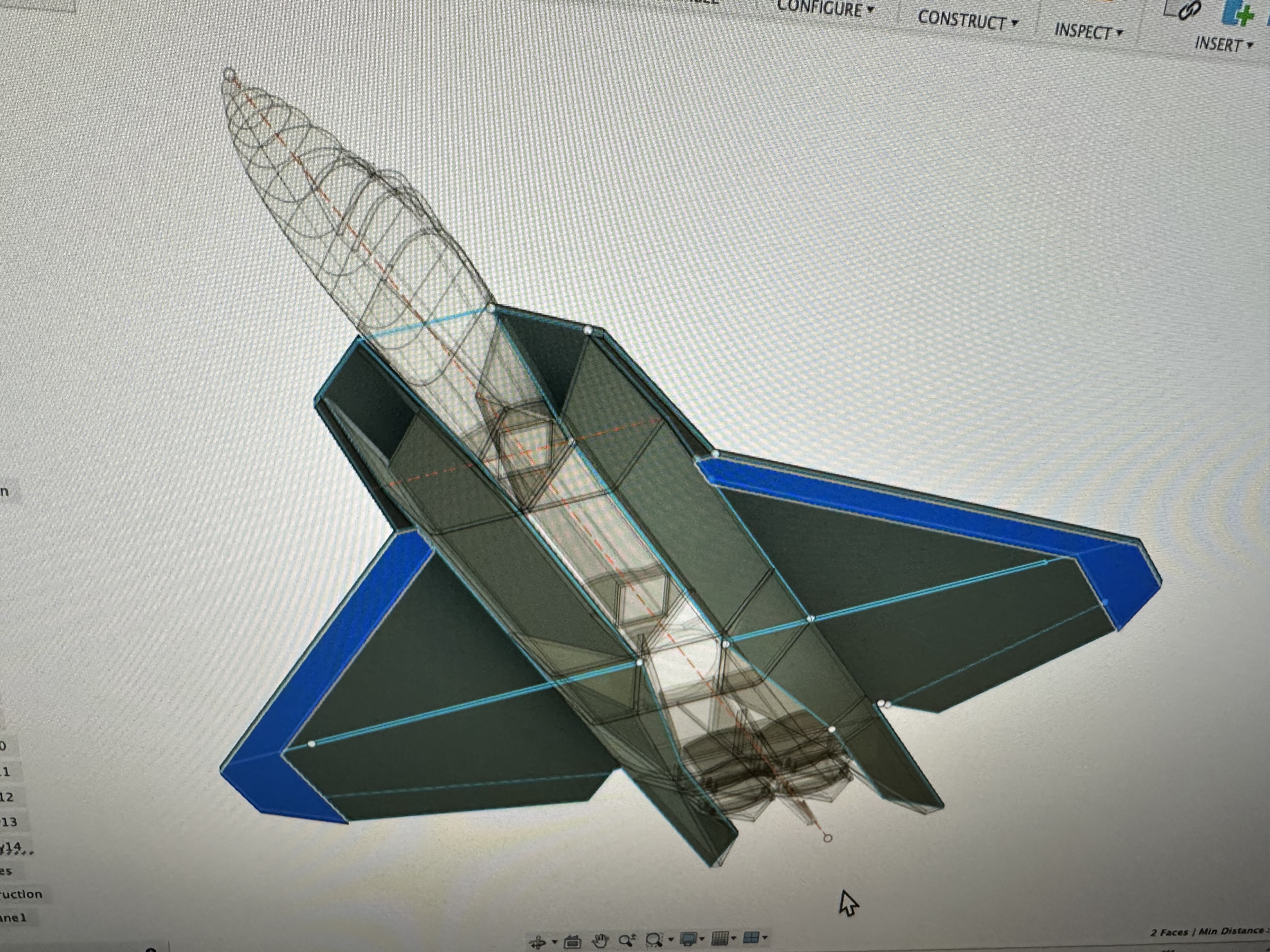

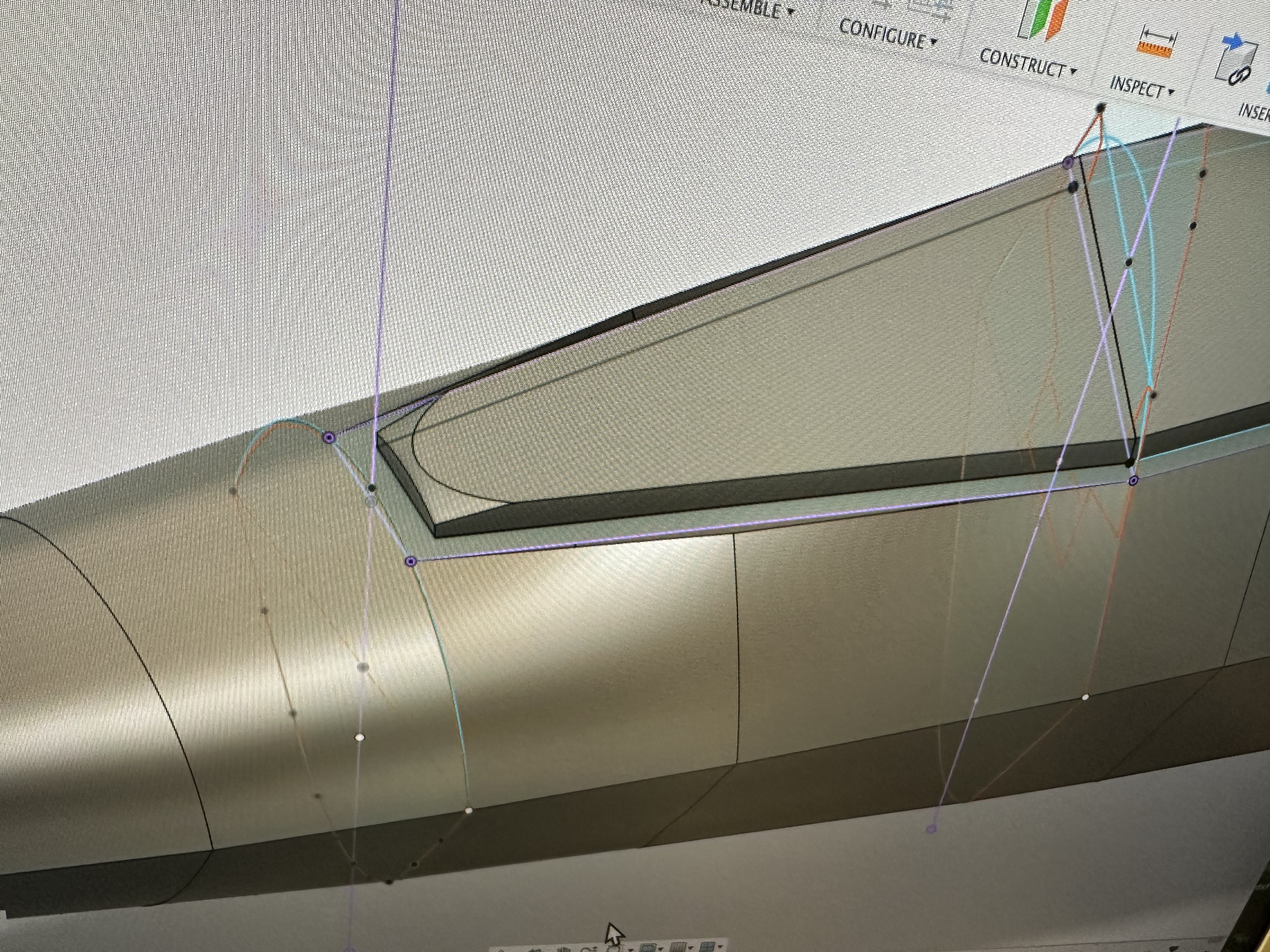

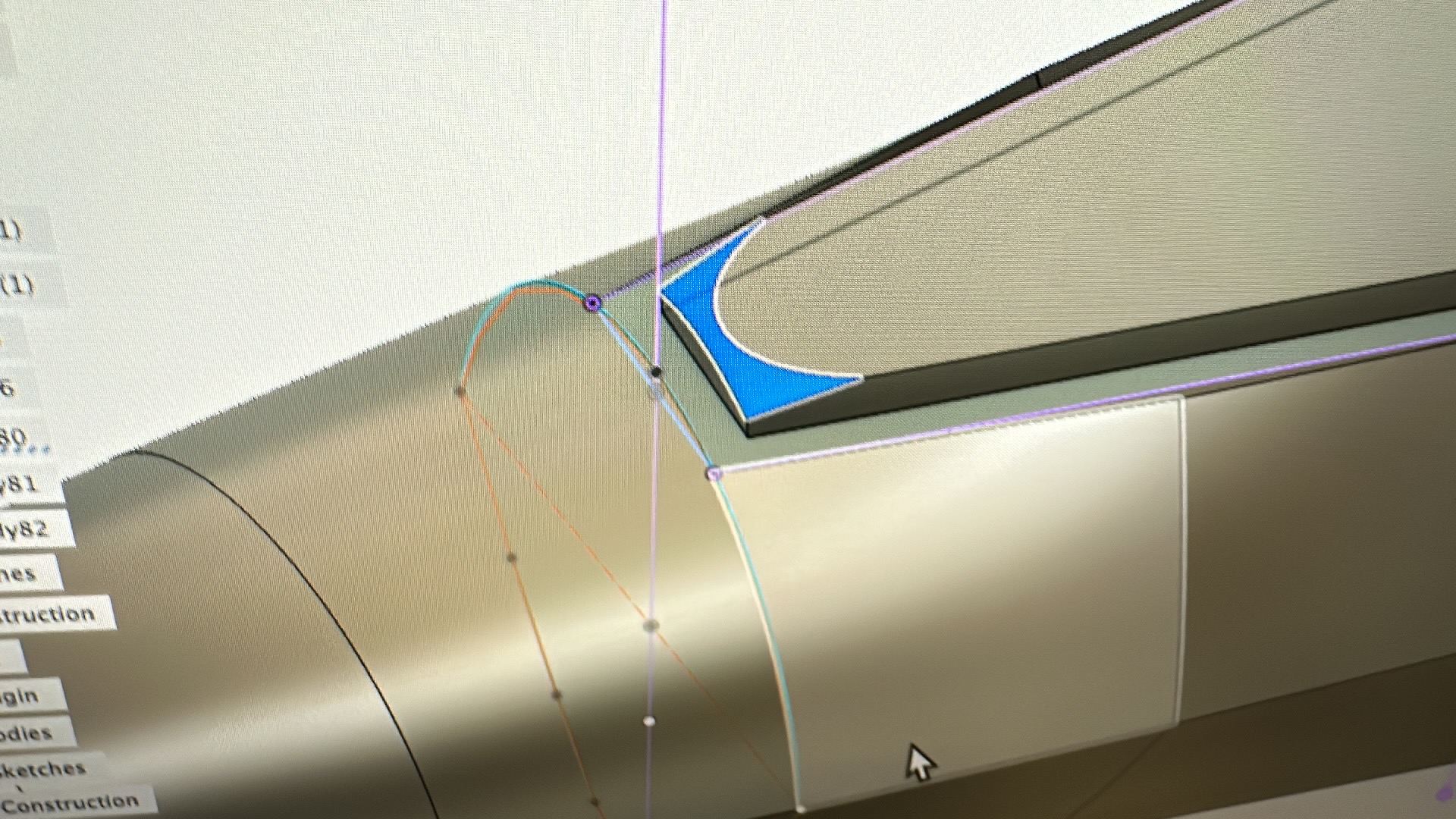

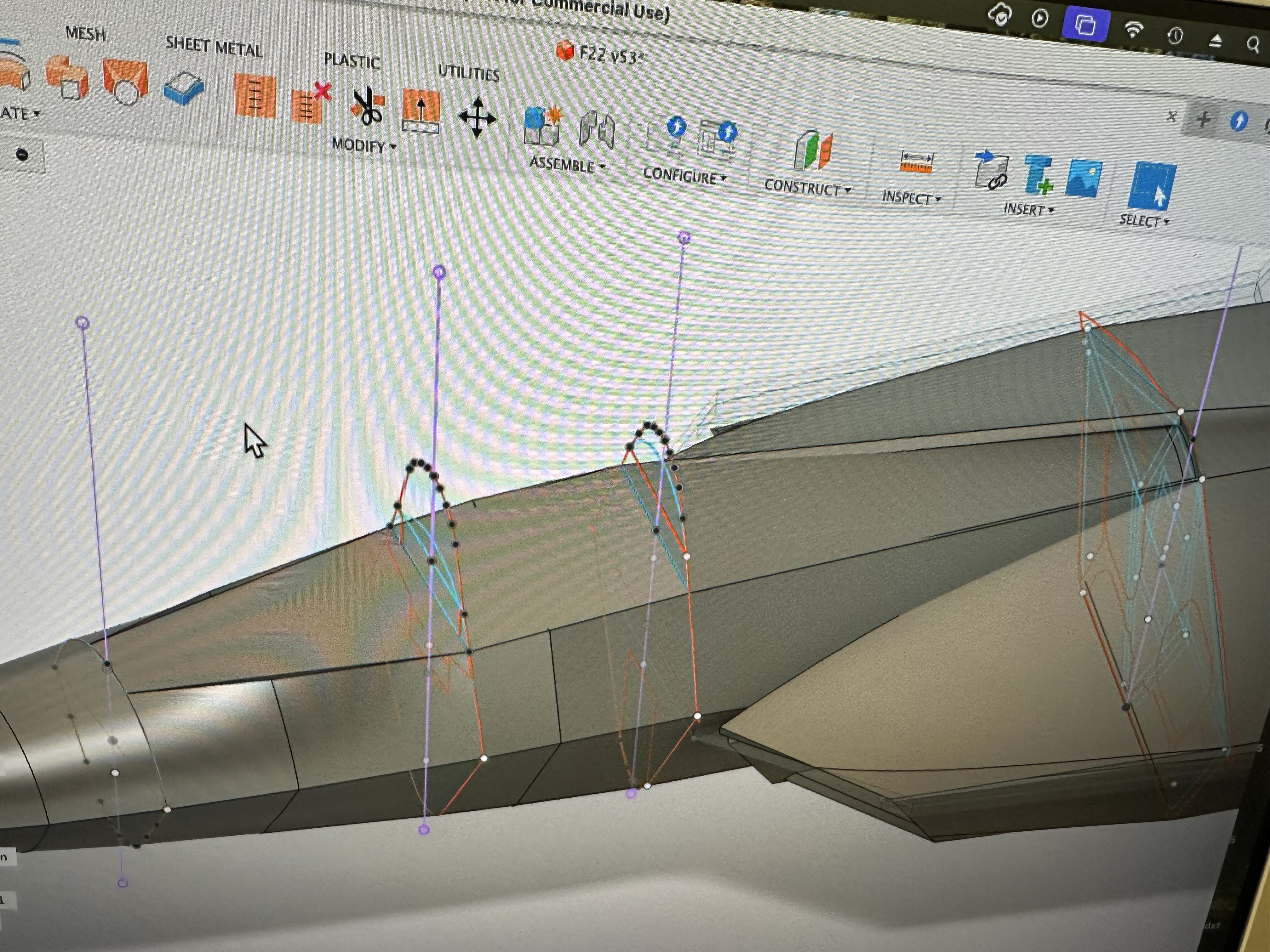

So far I have made the initial design in Fusion.
This week I will make the flat patterns for cutting out on my 80w Laser. The model has vectored thrust. A total of 6 servos will be used.
2 aeleron
2 elevator
2 vectored thrust



[noahangel11]

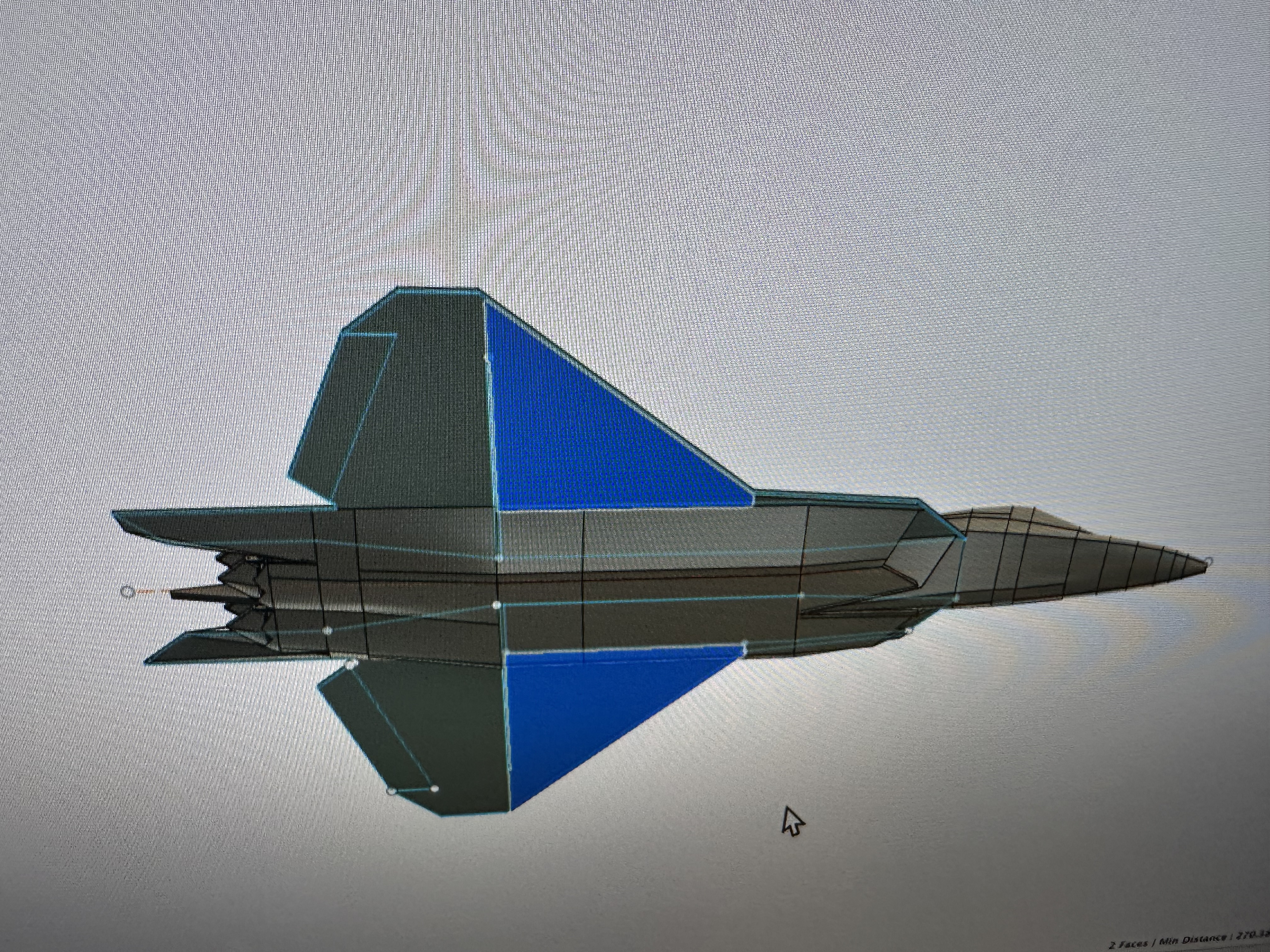

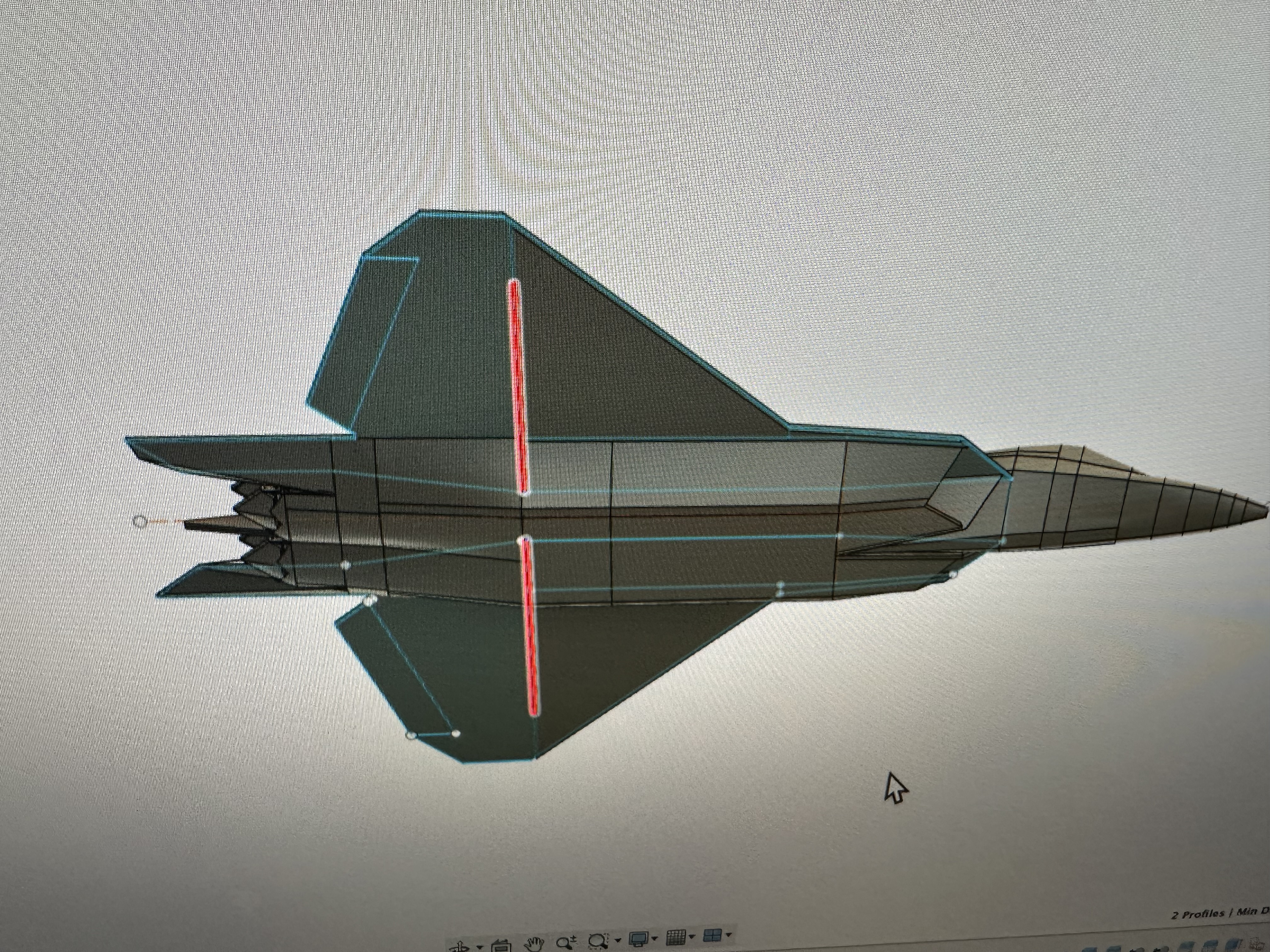

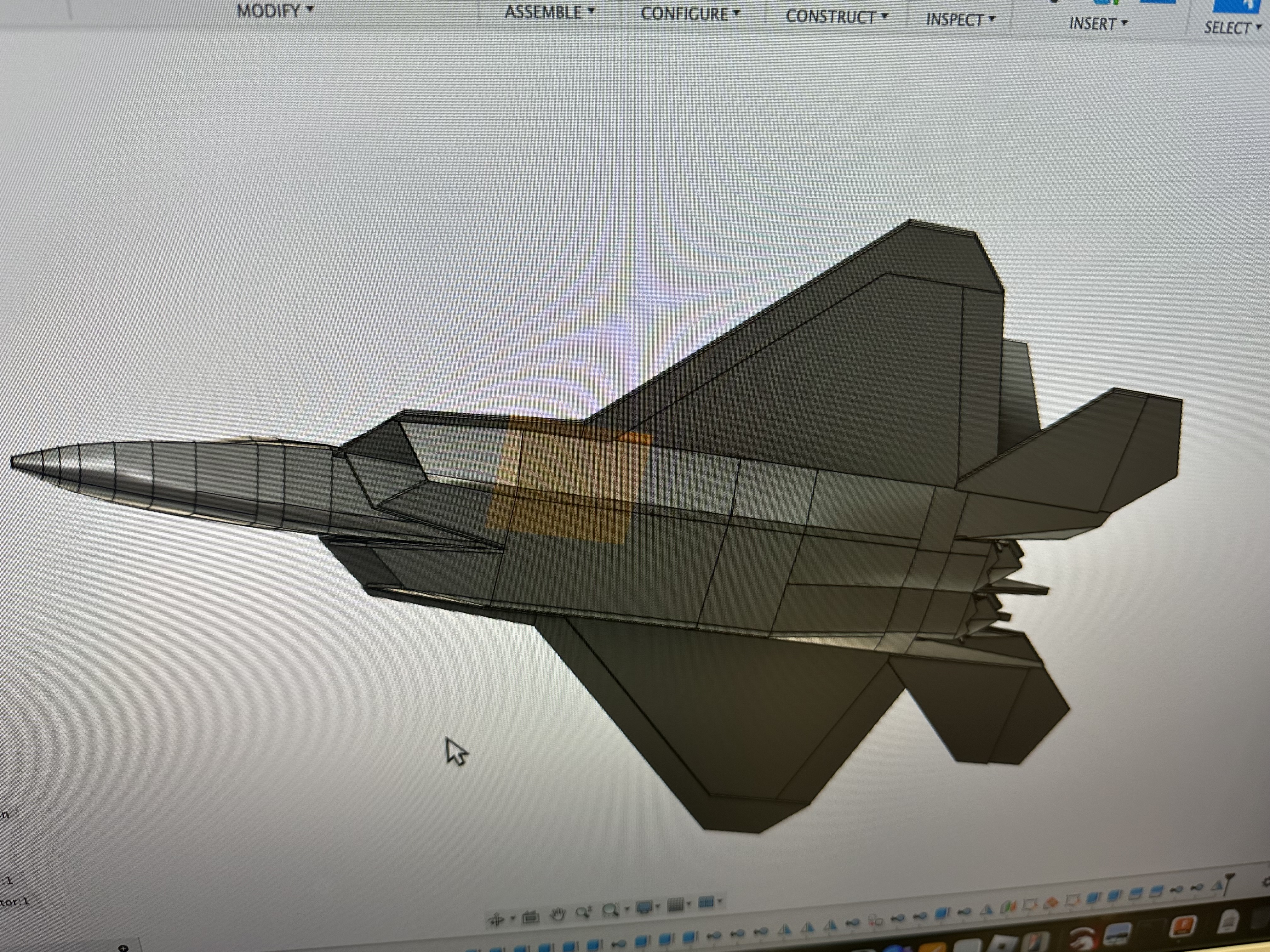

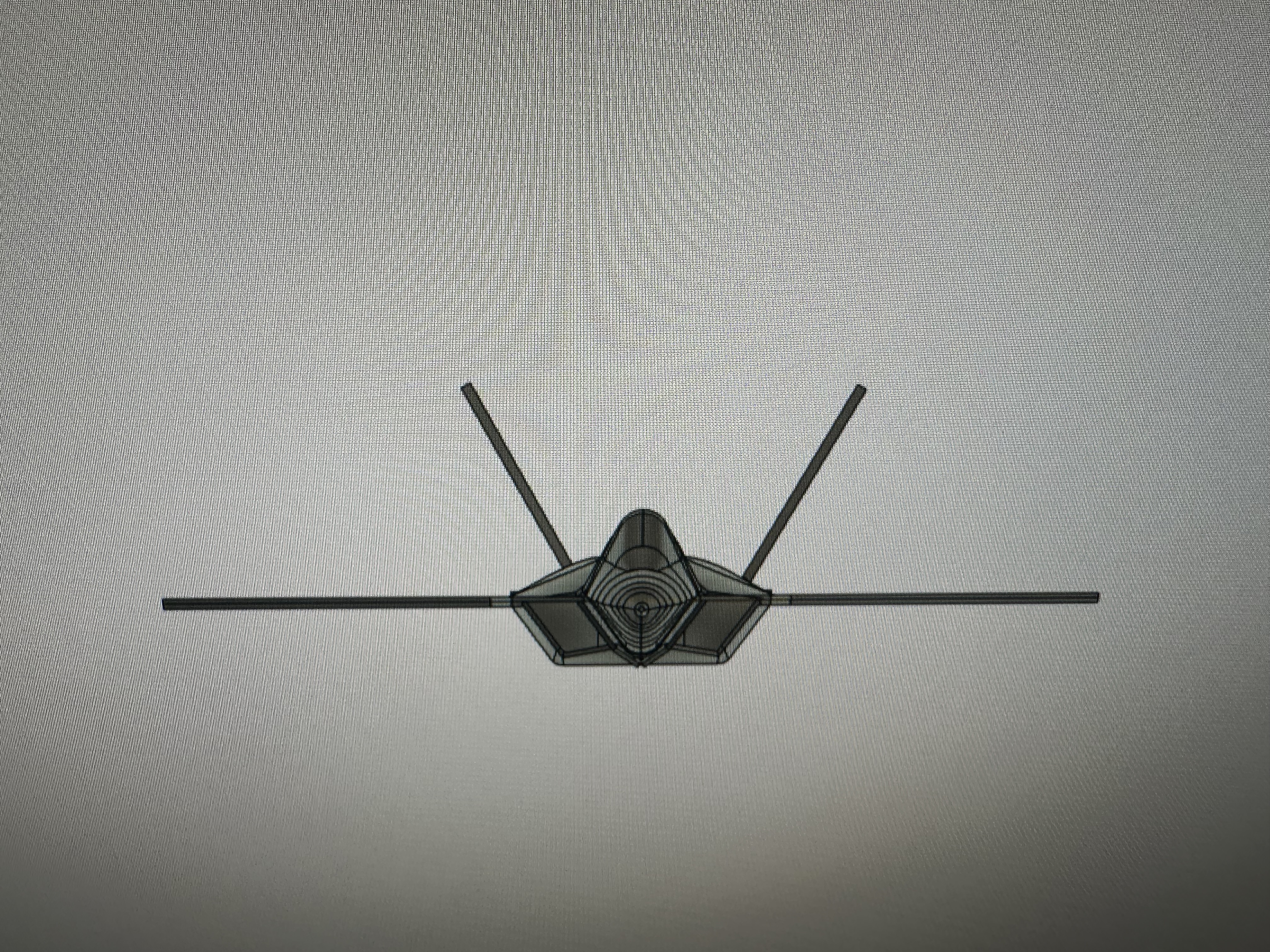

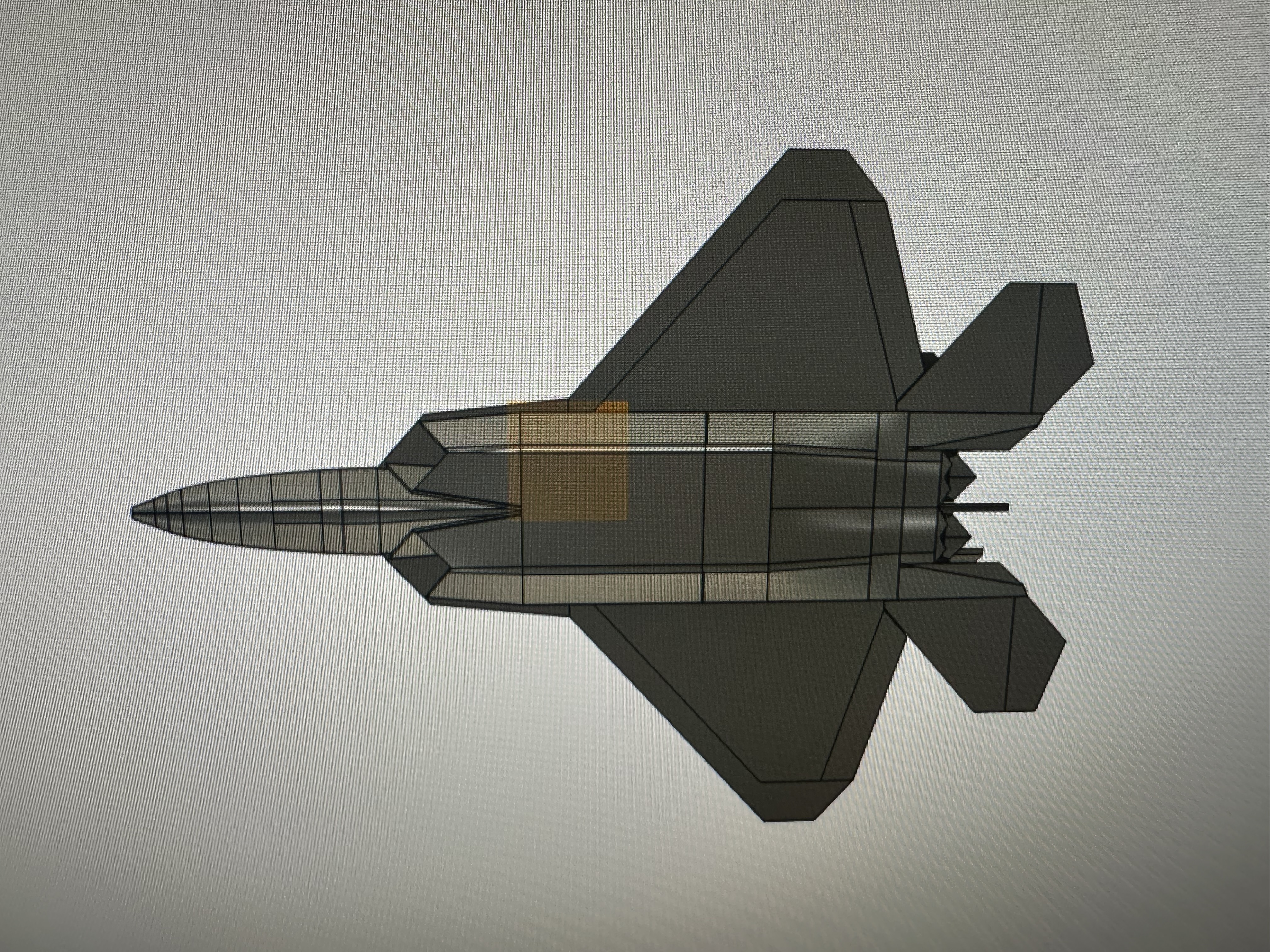

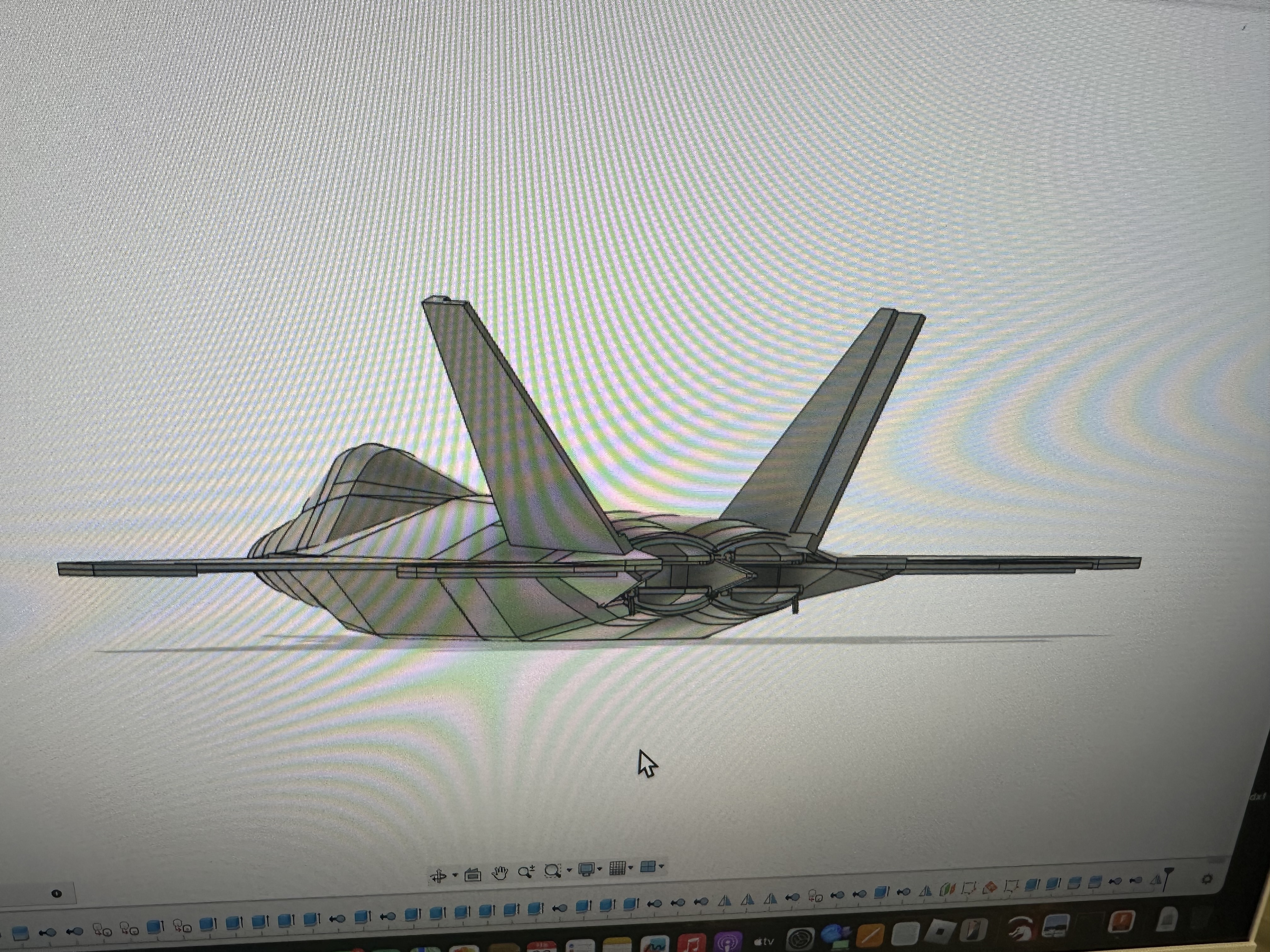

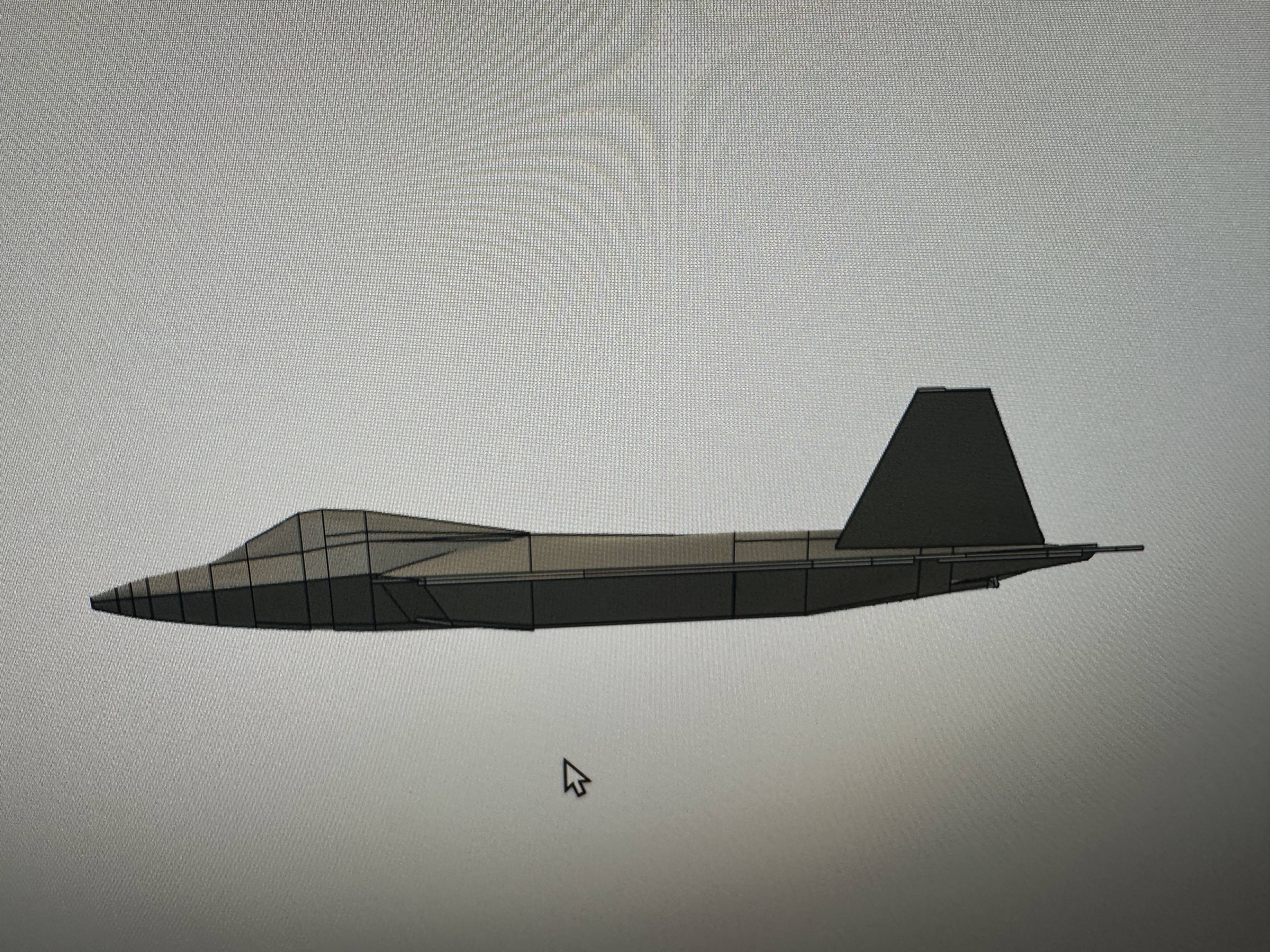

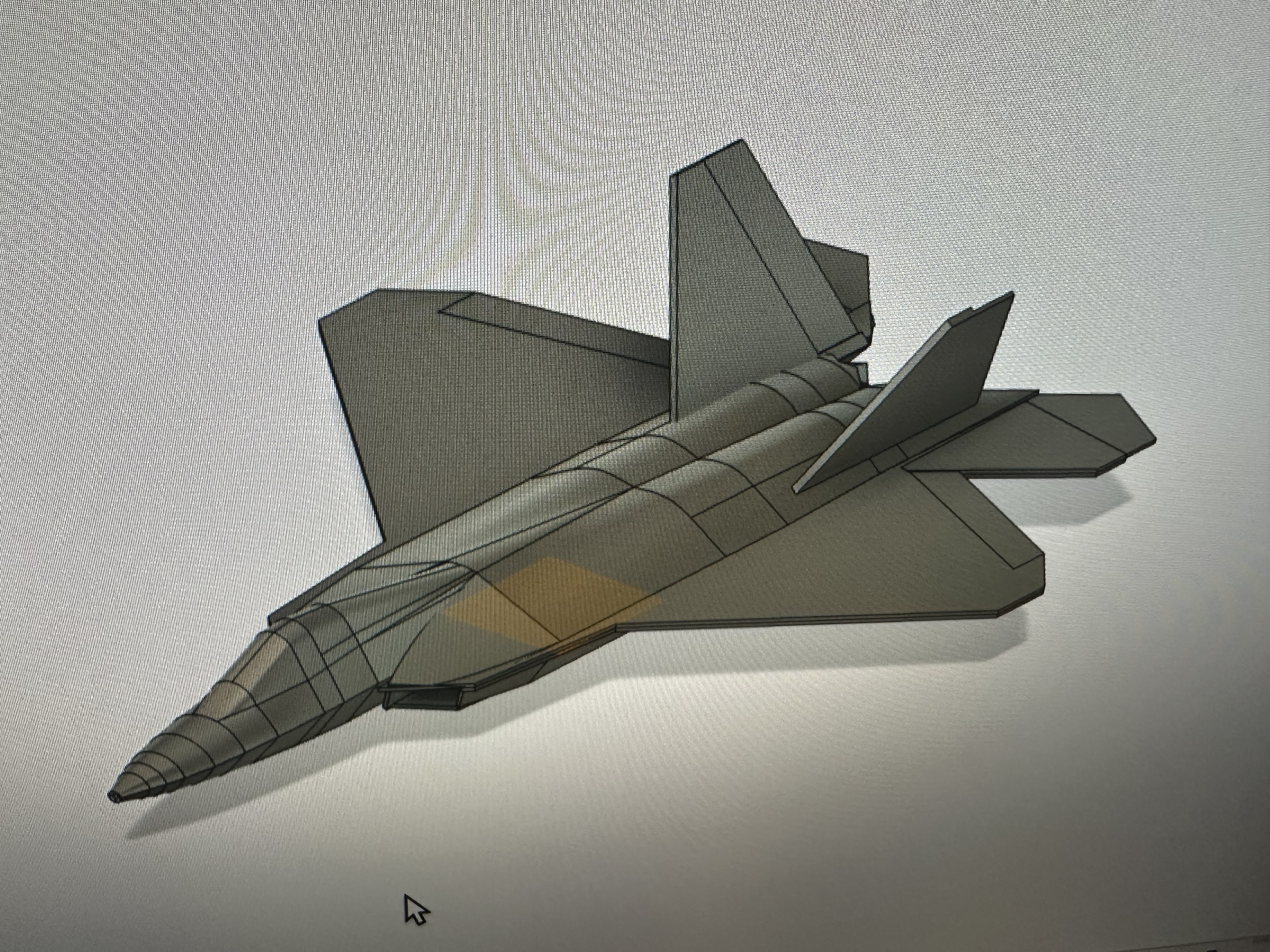

Some pics of my model



[noahangel11]

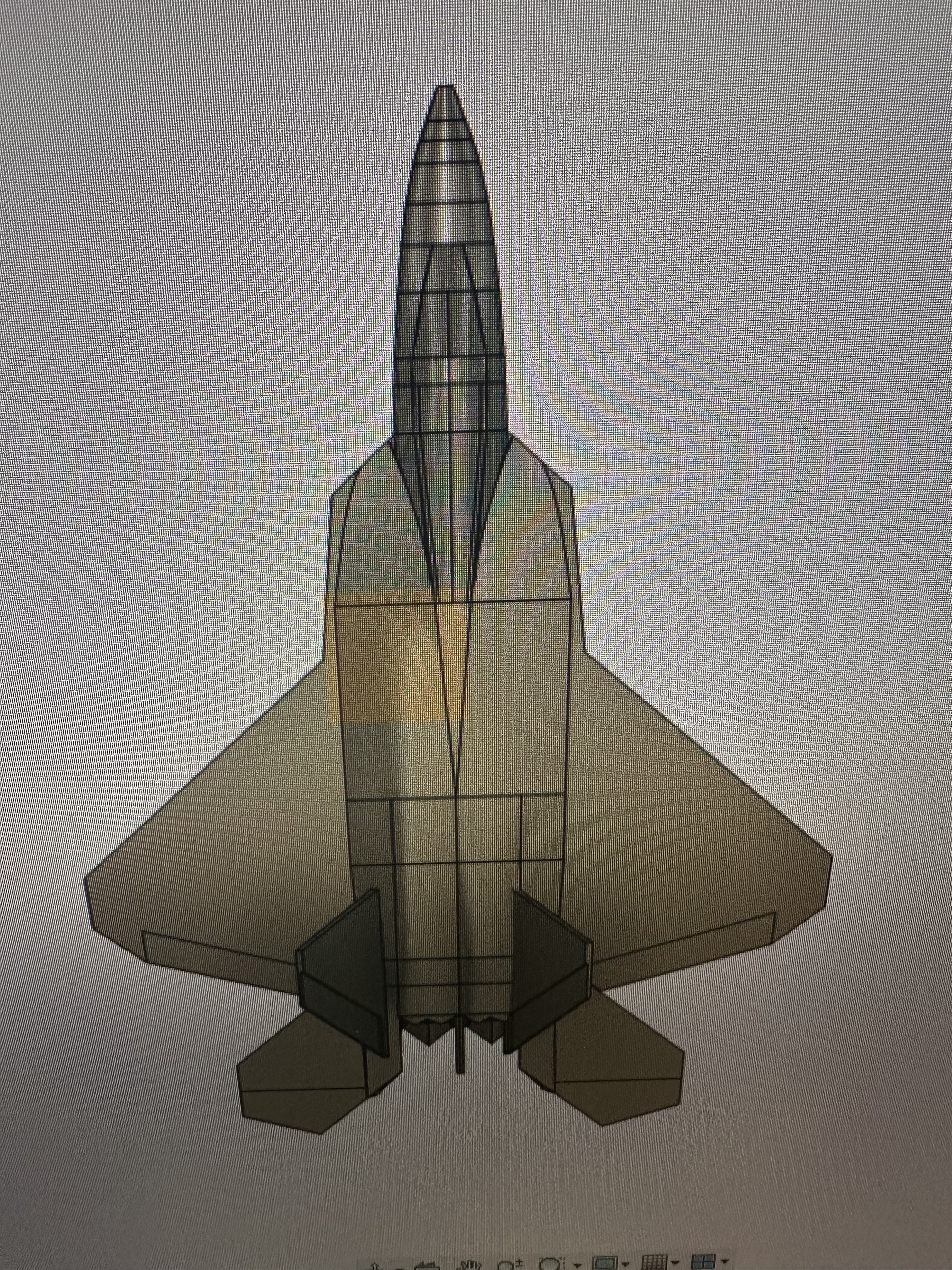

Oops the vertical stabs are not even. I fixed it, I had used the wrong plane to mirror the left stab to the right one.



[Houndpup Rc]

Some pics of my model

Looking great!



[noahangel11]

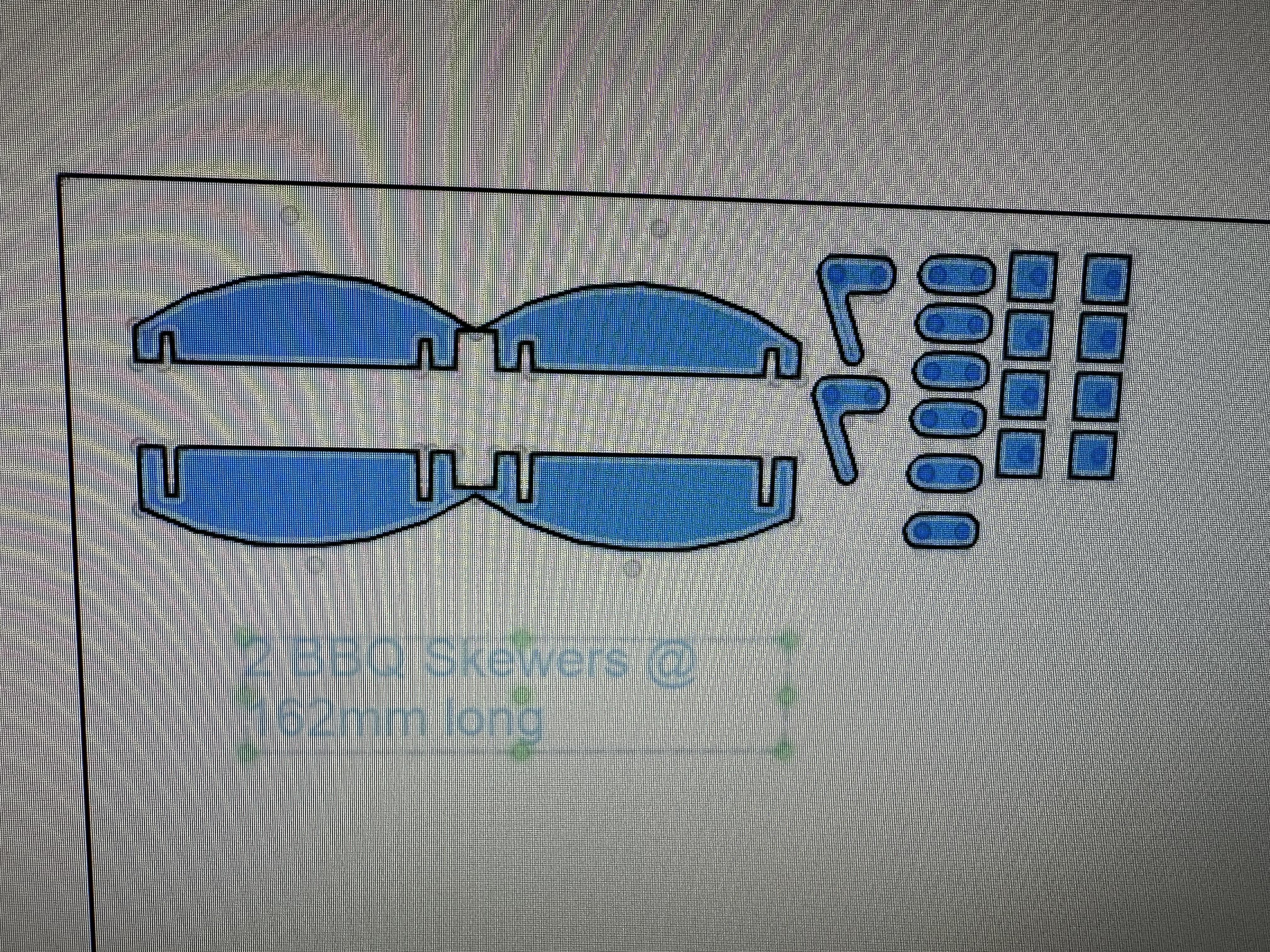

The ply parts required for optional thrust vectoring. Only ply parts on the model.



[Houndpup Rc]

The ply parts required for optional thrust vectoring. Only ply parts on the model.

Looking good! BTW @Mr Man uses Onshape to extract the skins off the 3D model for the 2D plans.



[noahangel11]

Is that a plugin for Fusion.

Looking good! BTW @Mr Man uses Onshape to extract the skins off the 3D model for the 2D plans.

Is that a Fusion 360 plugin? I do it differently.
But always like seeing different techniques. My way works for me, and it’s easy, but I’m sure there are other ways that might be better.



[Houndpup Rc]

Is that a plugin for Fusion.


Is that a Fusion 360 plugin? I do it differently.
But always like seeing different techniques. My way works for me, and it’s easy, but I’m sure there are other ways that might be better.

Not sure, @Mr Man? I think its a separate program and he uploads it into it.....



[Mr Man]

Not sure, @Mr Man? I think its a separate program and he uploads it into it.....

Its a completely different program, and I design everything in it.



[noahangel11]

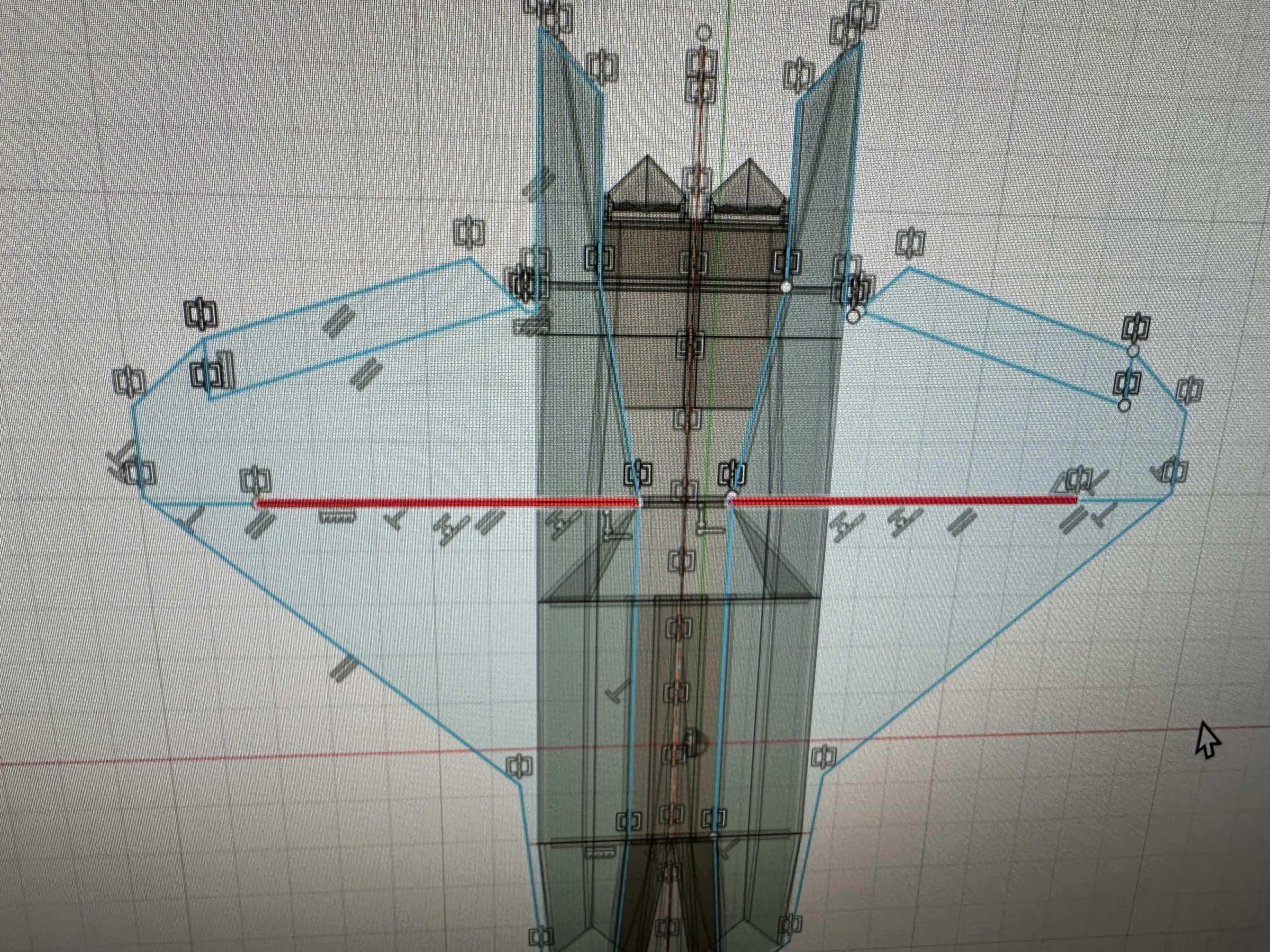

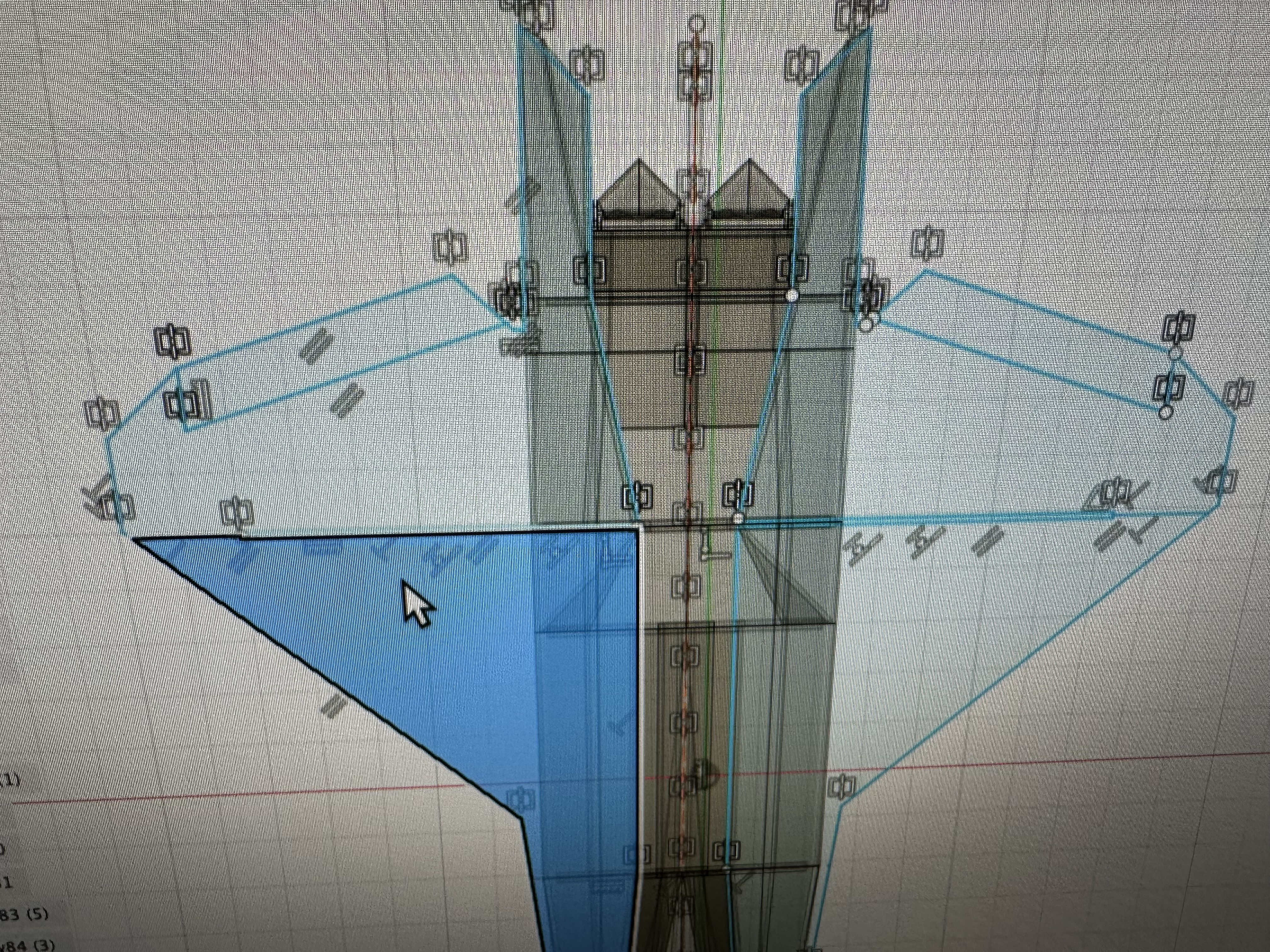

An update on the F-22. I have been churning through making the flat patterns for the laser cut files.
I have only the canopy and some tail pieces to finish up. Looks like it will take about 8 sheets of foam board.

My laser can’t quite cut a full 20” x30” sheet of foam board. I loose a little bit of bodreder space, not much.
Unfortunately, the wing flat pattern requires a full sheet, unless I break up the wing somewhere.
You can see in the pic how the top 2 sheets are larger.
I need to revisit this and section the wing somewhere without compromising strength.



[Mr Man]

How do you flatten surfaces in fusion?



[noahangel11]

How do you flatten surfaces in fusion?

I don’t do that in Fusion. I export the objects and use 3rd party software. There are several options out there that can flatten shapes.once flattened, I import them back into Fusion.



[Mr Man]

I don’t do that in Fusion. I export the objects and use 3rd party software. There are several options out there that can flatten shapes.once flattened, I import them back into Fusion.

I see



[noahangel11]

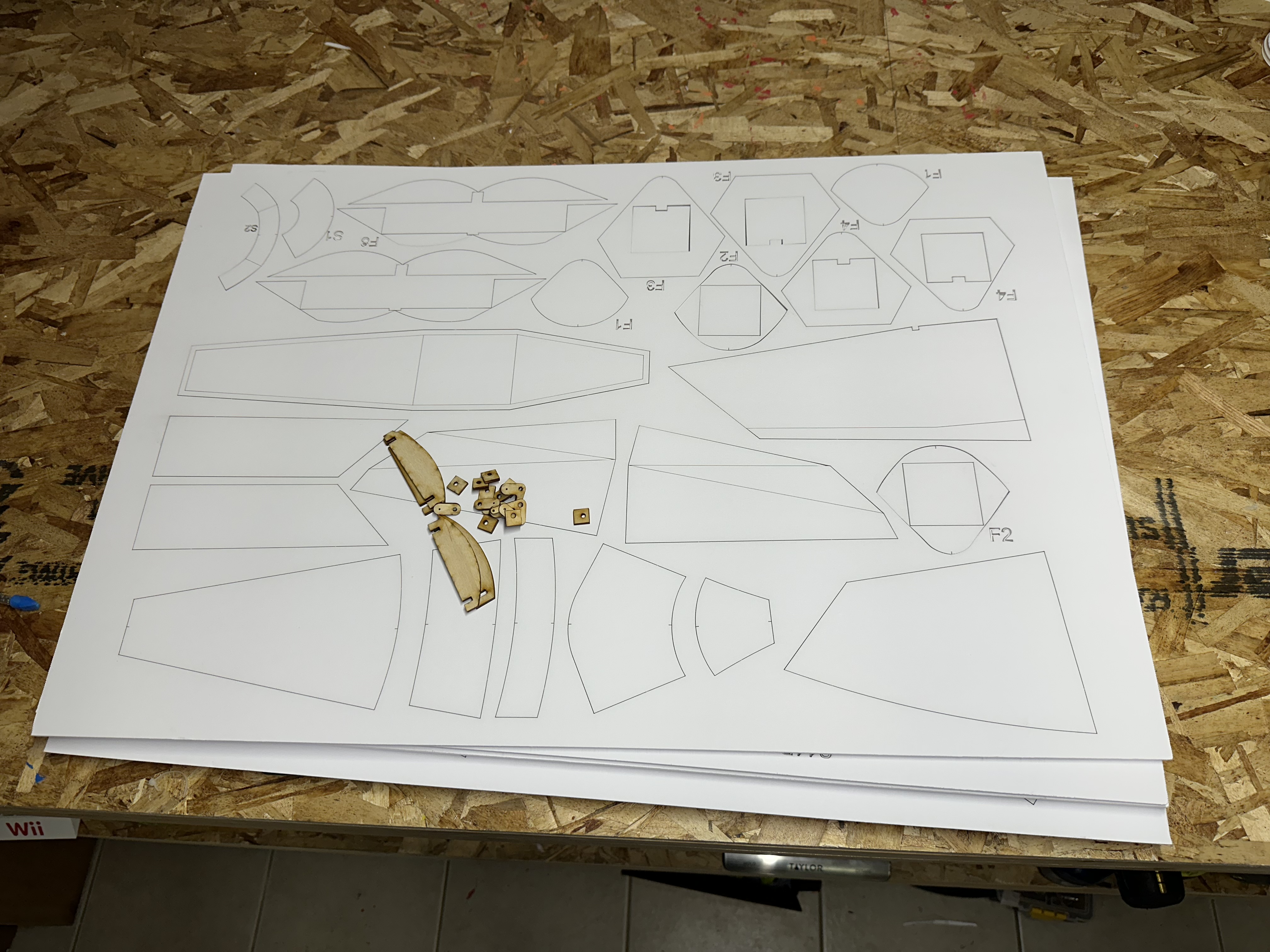

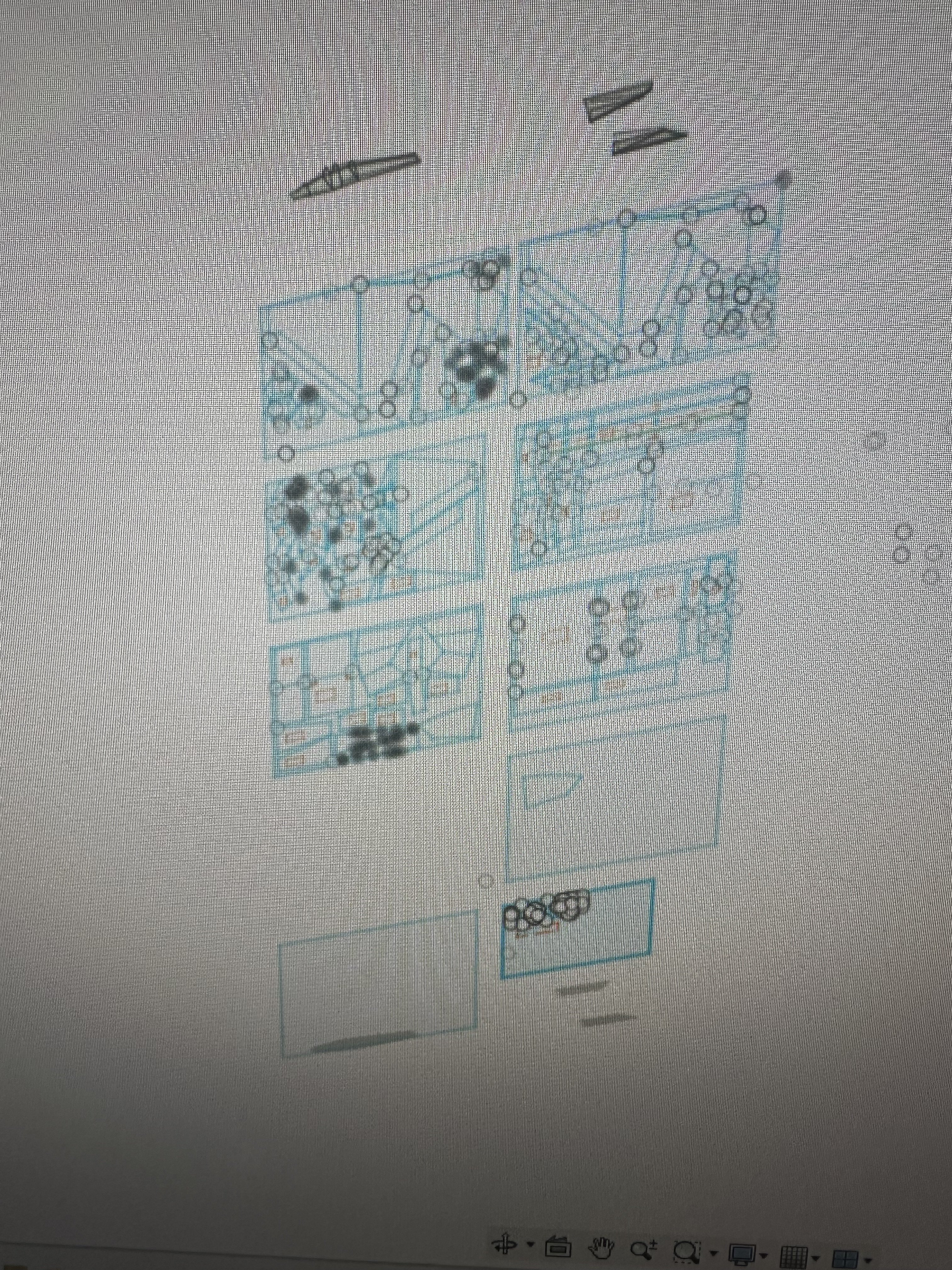

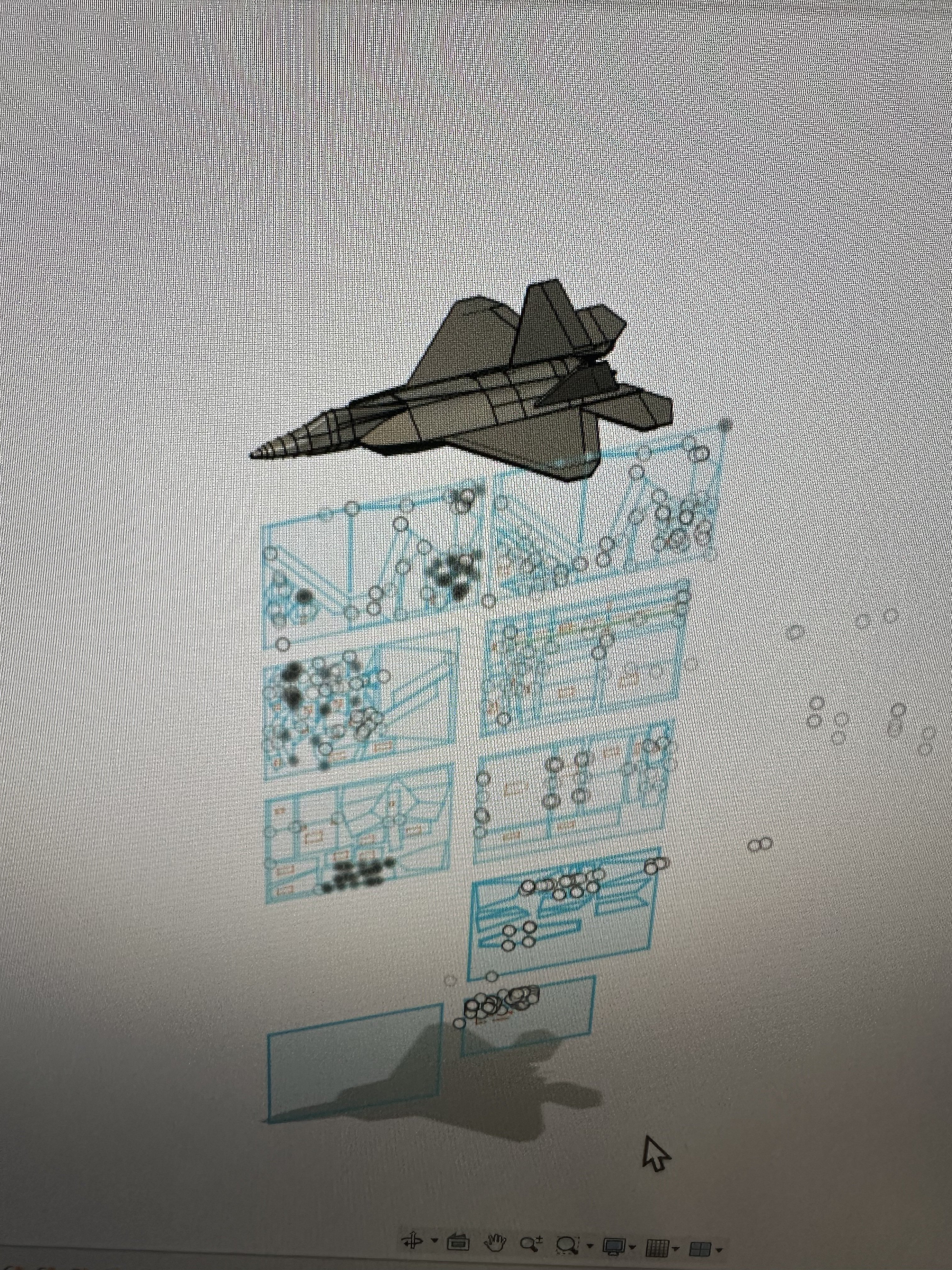

F-22 Flat patterns done, ready to export to laser software for cutting out. Good thing I have a box of foam board.



[noahangel11]

Pic



[Houndpup Rc]

Pic

Cool!



[noahangel11]

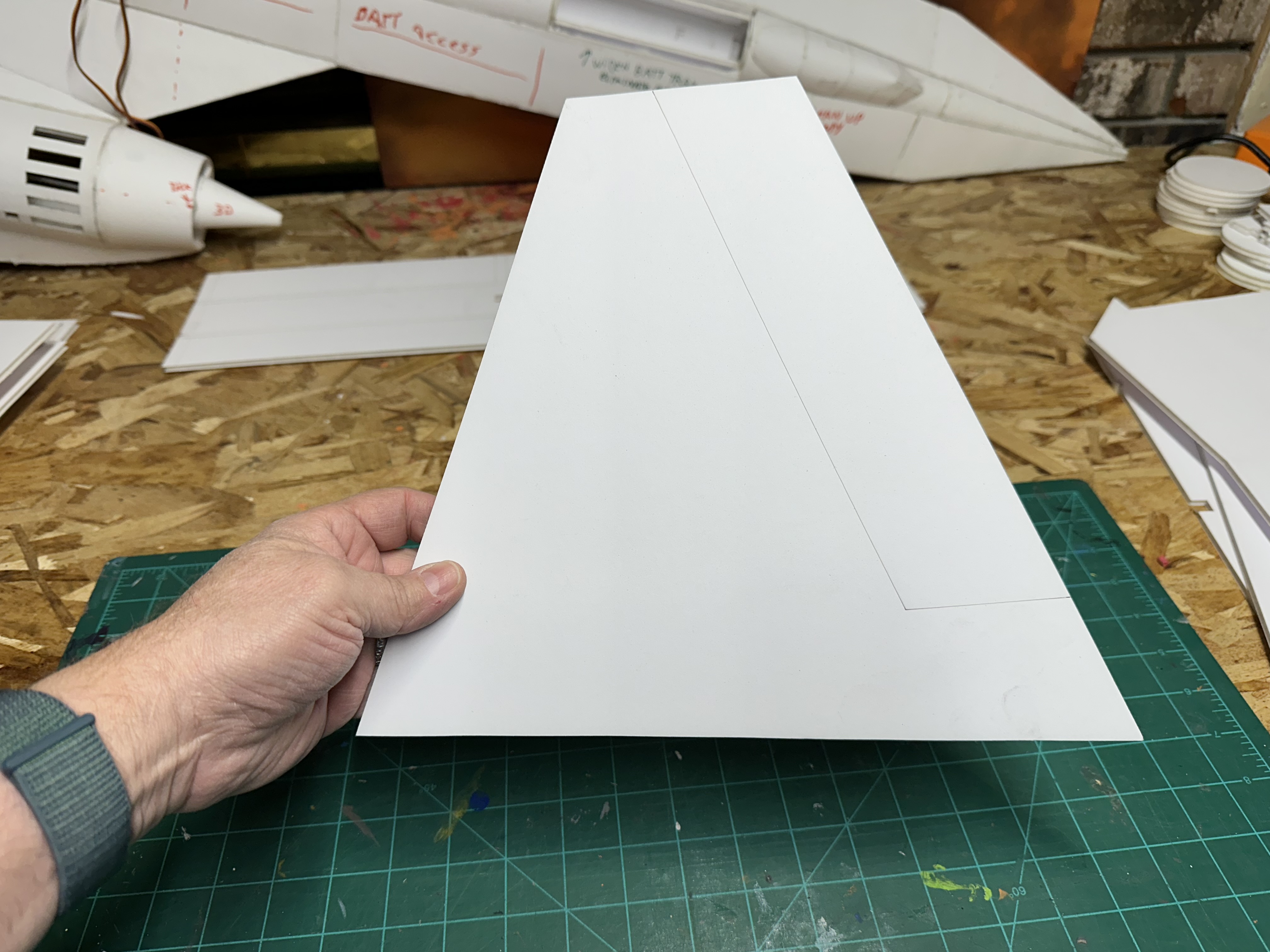

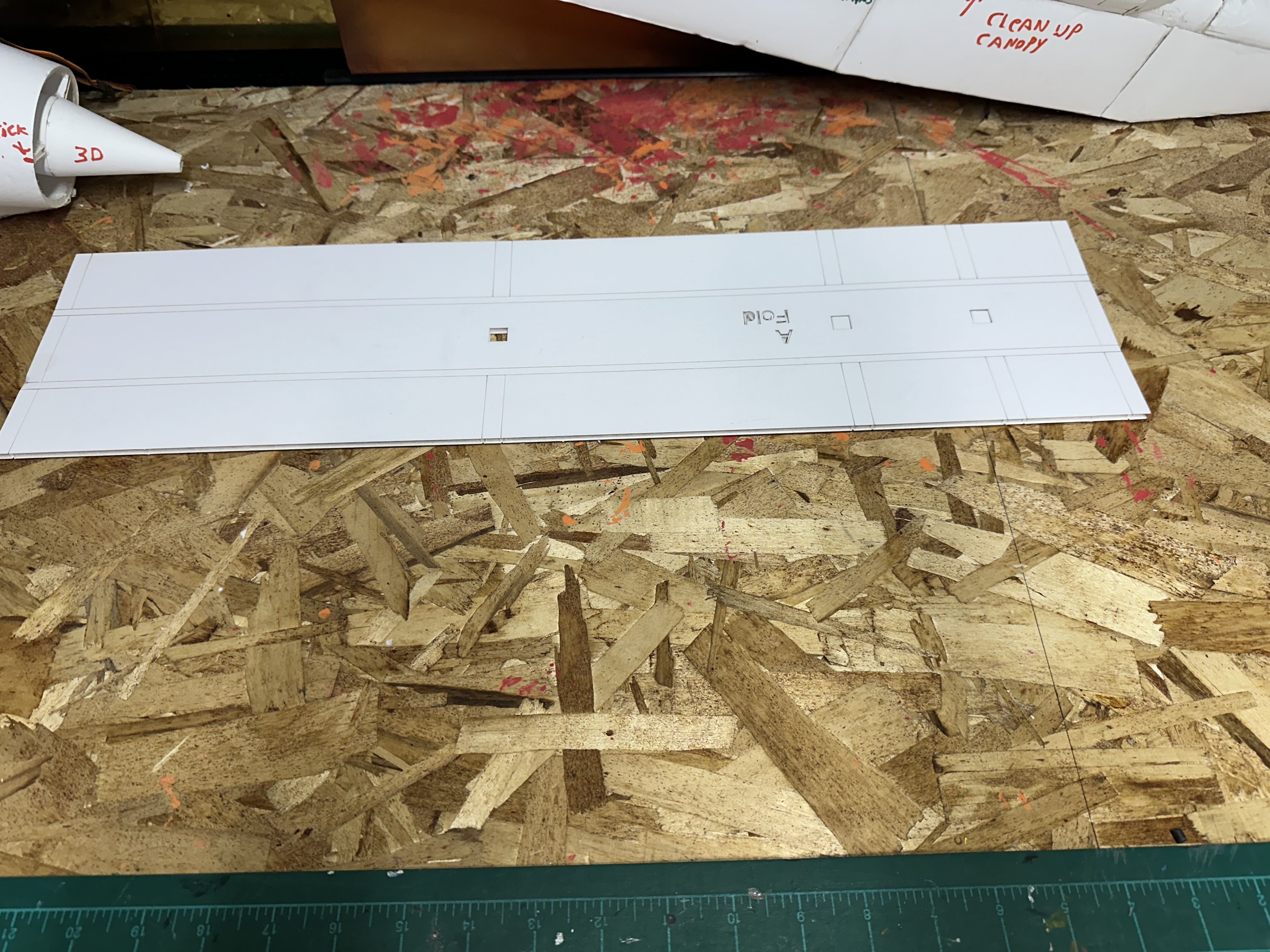

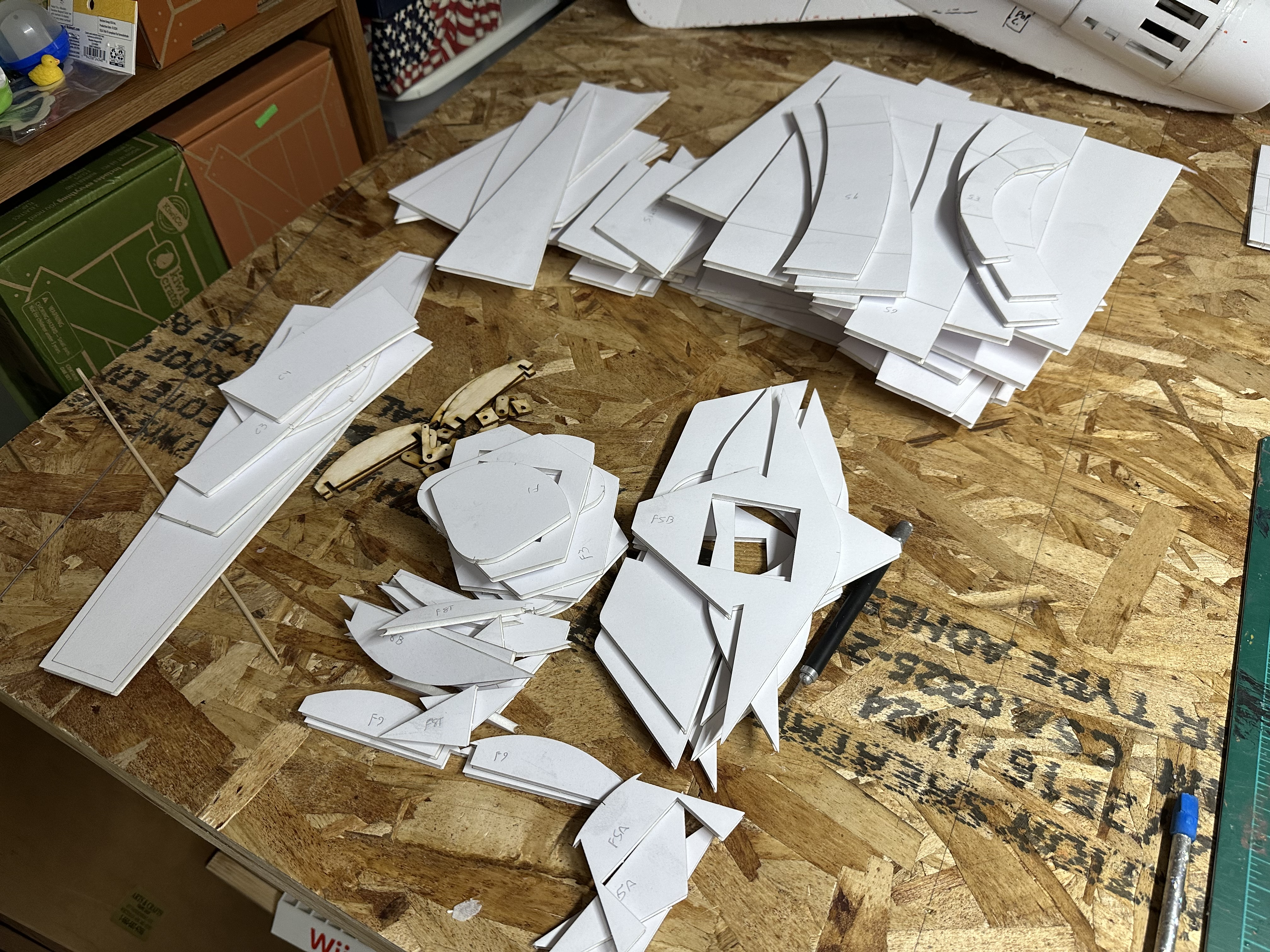

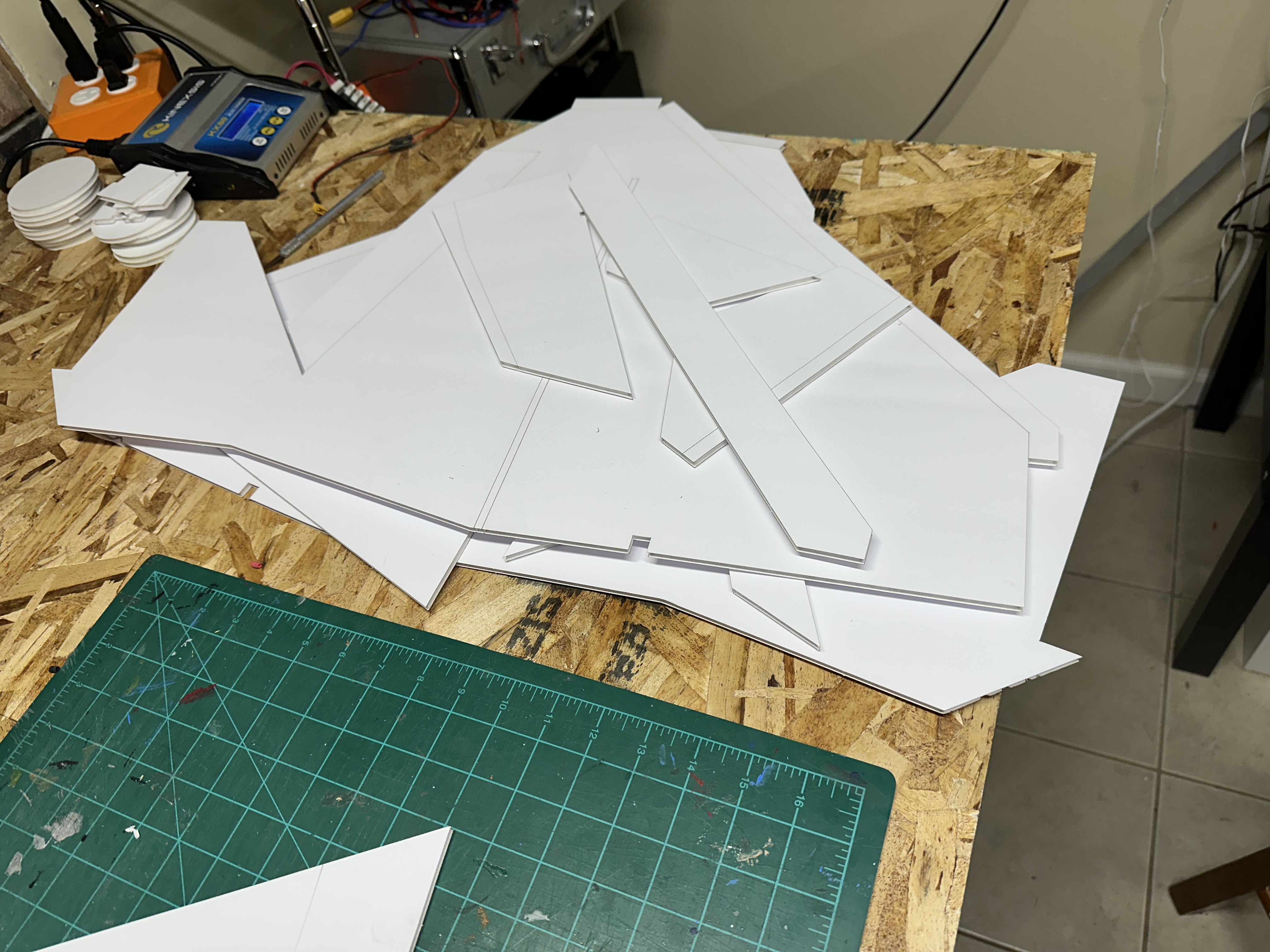

A stack of parts fresh off the laser for the weekend build. Tail fin in hand for scale reference.



[vicentel]

Amazing! I can't wait to see it all come together.



[dberg97]

I love the SR-71 in the background.
