F-22 Raptor Single 70mm EDF.

[noahangel11]

Hope to release my Sr-71 soon....

If it flies well I’d be interested in that. And where your CG ends up



[Houndpup Rc]

If it flies well I’d be interested in that. And where your CG ends up

Yeah, I am just winging it on the CG.....I hope it works!



[L Edge]

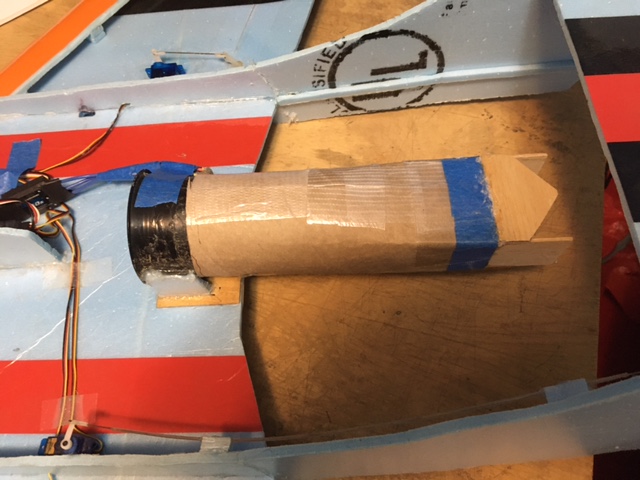

Did some static testing where I designed a circular to rectangle exhaust with the triangle(top and bottom exhaust and 9" length) shape. The unit weighs 63.4 grams

Charged up battery where each pack is 4.2000V and then held it vertically and added throttle until it hovered by itself(quick let go and grab). It took 87-88% throttle to get it to hover with 2 try's where I back off to 50% and came up again.
Then charged battery to again 4.200 with unit off and it hovered at 76-75%.

I know there is a small additional thrust/wt. to hover, but I was quite surprised that much throttle. I did some testing on my SR-71(different lengths of inlet and outlet circular tubing) and % changes were small. Even explored nose cone area.

Also, I am going for dynamic runs to see with triangular exit shape, what flow pattern it produces when mixed with airflow and what it does. I am also changing exit shapes to see how it effects the pitch. This adds knowledge to the proper design of NYGAD planes.



[L Edge]

If it flies well I’d be interested in that. And where your CG ends up

Best to use a CG calc program.



[Houndpup Rc]

Best to use a CG calc program.

Yeah...I have one...It's called: Look at it, think about and do what looks good! LOL



[noahangel11]

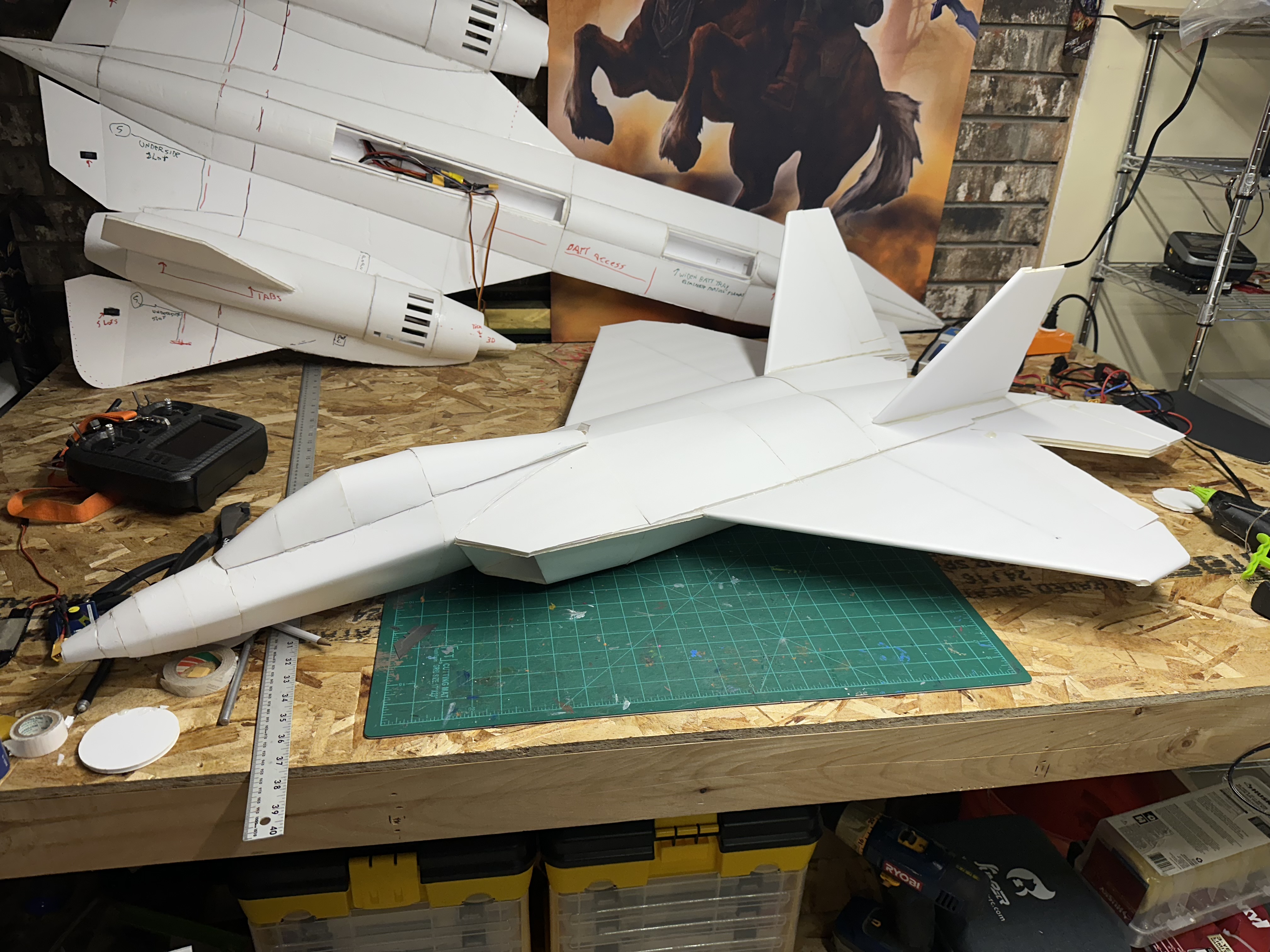

Waiting to fly. We had tornados and storms yesterday, hope it dries out soon.



[Mr Man]

Lookin’ good!👍



[Houndpup Rc]

Waiting to fly. We had tornados and storms yesterday, hope it dries out soon.

Sweet!



[noahangel11]

I may have to maiden the F-22 and the SR-71 at Flite Fest 2025, which is fast approaching.
Been busy getting planes and gear ready for that.



[Mr Man]

Nice!👍



[noahangel11]

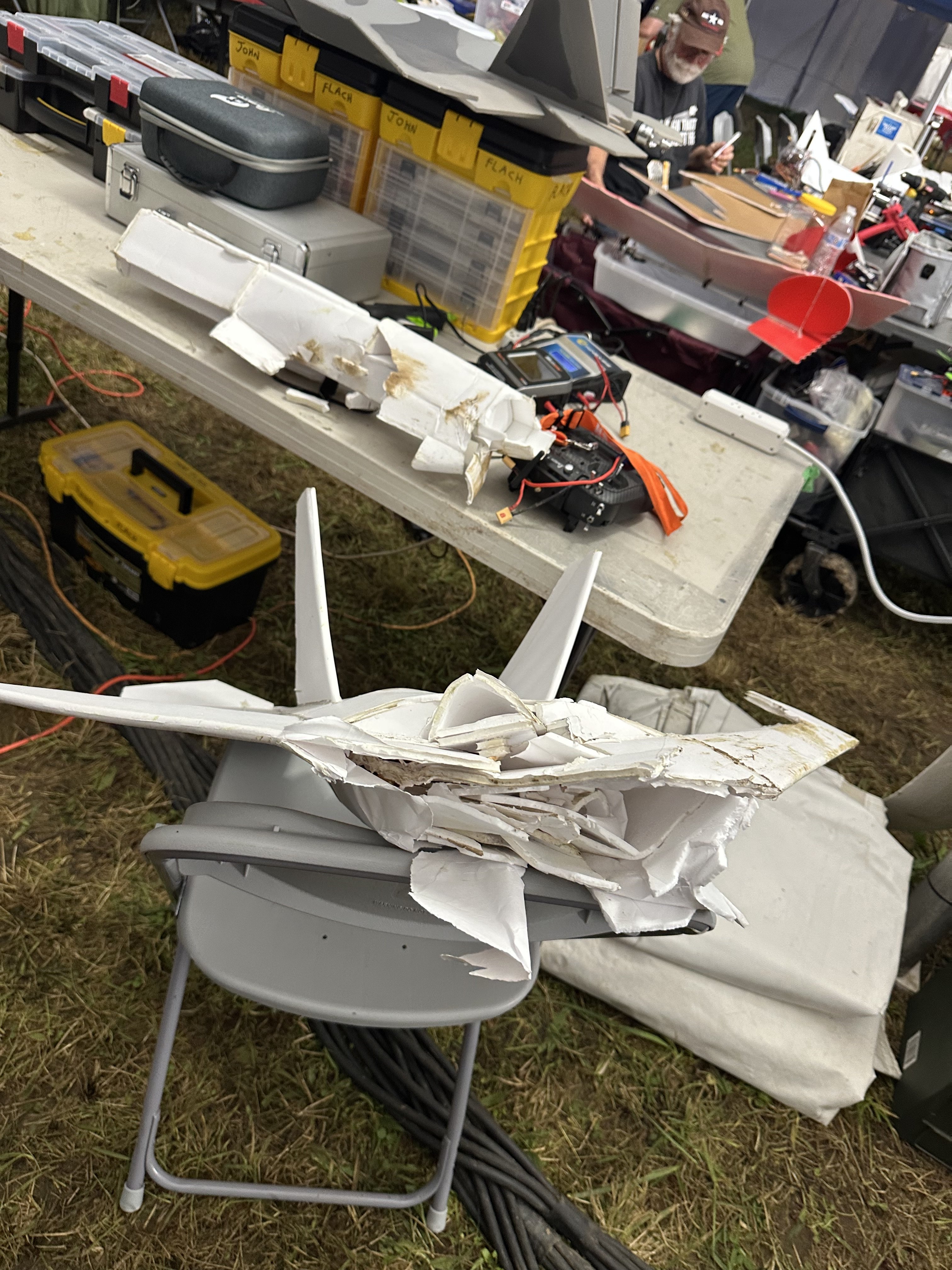

Flight of F-22 at Flite Fest validated the design, it flew well……until I lost orientation and crashed it in a farm field far far away.

Stay tuned for release of plans.



[FlyerInStyle]

Flight of F-22 at Flite Fest validated the design, it flew well……until I lost orientation and crashed it in a farm field far far away.

Stay tuned for release of plans.

It looked great at flitefest!



[noahangel11]

Here is how I flatten my skins when designing foam board planes in Fusion 360:

[

]



[noahangel11]

F22 Raptor 70MM Twin EDF DTFB RC Plane

John Flach (RC Skunkworks)

Rc-skunkworks

rc-skunkworks.godaddysites.com

Specifications

• Length: 1320mm (~52”)
• Wingspan: (954.4mm (~37.5”)

Electronics
Power:

• Qty-2 70mm EDF https://store.flitetest.com/70mm-ed...otor-2300kv/?searchid=0&search_query=70mm+edf
• QTY-2 ESC 80A https://store.flitetest.com/skywalk...s-and-xt-90/?searchid=0&search_query=70mm+edf

Batteries:

• QTY-2 3-Cell 4000 mah Lipo batteries wired in Series for 6S (A 63s pack will not fit in fuselage)

Servos:

• QTY-4 17G Servos

Receiver:

• 4 channel Minimum

Materials

• DTFB QTY-7 sheets, Dimensions 20” x 30”, 3/16” thick
• Carbon Fiber Rods for wing spar. 5mm max diameter, Length 289mm x 2, total 578mm
• Qty-4 8mm diameter Neodymium Rare Earth Magnets for Canopy/Battery Hatch https://www.homedepot.com/p/Master-...th-Magnet-Discs-10-per-Pack-07045HD/202526363

Full Plans:
https://drive.google.com/drive/folders/1SZV9FdDes3sXX5H1RKTeZ5I_C5yr4ORD?usp=sharing

Tiled Plans:
https://drive.google.com/drive/folders/1QjG7GbacU4To4w-Ij-zkMleBEZMtplEt?usp=sharing

Assembly instructions:
https://drive.google.com/file/d/1GkbtIE_s9gMr2xEe8IzO__gKtQwhIpz6/view?usp=sharing



[Houndpup Rc]

F22 Raptor 70MM Twin EDF DTFB RC Plane

John Flach (RC Skunkworks)

Rc-skunkworks

rc-skunkworks.godaddysites.com

Specifications

• Length: 1320mm (~52”)
• Wingspan: (954.4mm (~37.5”)

Electronics
Power:

• Qty-2 70mm EDF https://store.flitetest.com/70mm-ed...otor-2300kv/?searchid=0&search_query=70mm+edf
• QTY-2 ESC 80A https://store.flitetest.com/skywalk...s-and-xt-90/?searchid=0&search_query=70mm+edf

Batteries:

• QTY-2 3-Cell 4000 mah Lipo batteries wired in Series for 6S (A 63s pack will not fit in fuselage)

Servos:

• QTY-4 17G Servos

Receiver:

• 4 channel Minimum

Materials

• DTFB QTY-7 sheets, Dimensions 20” x 30”, 3/16” thick
• Carbon Fiber Rods for wing spar. 5mm max diameter, Length 289mm x 2, total 578mm
• Qty-4 8mm diameter Neodymium Rare Earth Magnets for Canopy/Battery Hatch https://www.homedepot.com/p/Master-...th-Magnet-Discs-10-per-Pack-07045HD/202526363

Full Plans:
https://drive.google.com/drive/folders/1SZV9FdDes3sXX5H1RKTeZ5I_C5yr4ORD?usp=sharing

Tiled Plans:
https://drive.google.com/drive/folders/1QjG7GbacU4To4w-Ij-zkMleBEZMtplEt?usp=sharing

Assembly instructions:
https://drive.google.com/file/d/1GkbtIE_s9gMr2xEe8IzO__gKtQwhIpz6/view?usp=sharing

Cool! Are you going to build it again and get us a flight video?



[noahangel11]

Cool! Are you going to build it again and get us a flight video?

Yes. At the moment I am recovering from Flite Fest 🤣🤣🤣🤣🤣



[Houndpup Rc]

Yes. At the moment I am recovering from Flite Fest 🤣🤣🤣🤣🤣

Cool! I can't wait to try my SR-71! (BTW did you try yours yet?)



[noahangel11]

Cool! I can't wait to try my SR-71! (BTW did you try yours yet?)

I have not. I ran out of time at FF to maiden it, turns out it needed more completing than I had time for when I ran into some wiring issues on it.



[Mr Man]

Nice job on the plans!!



[Mr Man]

Would you like this to be added to the MS design and build?
