I have fell down the rabbit hole of fast rc planes and have found out about hjk speedwings if u are unfamiliar with these planes let me give u a quick run down,

this is a hjk speedwing this is one of thier biggest models the "Big Monster" I recently found someone who made a foam board version of this plane or at the very least a bunch of similar versions.

this is the tread if u wanna check it out https://forum.flitetest.com/index.php?threads/jh-speed-deamon-a-foamboard-pylon-racer.58734/

this is what it looks like

I love this design and will soon build this my only issue with this design is that its body is a long rectangle I would honestly love it if someone reading this thread would design a foamboard version of the hjk speedwings and make its body a long cylindrical tube just like the body of the BIG MONSTER and then who knows maybe the change is the body shape would mean greater speeds and maybe we can even break the 200 mph barrier with a powerful enough motor. if no one else replies to this thread or no one designs such a plane I will do it myself probably using something like blender,fusion 360 or some other software im posting this thread hoping that this thread might blow up kinda like the speed deamon thread and for know I will download blender and start working on the design.



[Zoom Master]

I have fell down the rabbit hole of fast rc planes and have found out about hjk speedwings if u are unfamiliar with these planes let me give u a quick run down,

this is a hjk speedwing this is one of thier biggest models the "Big Monster" I recently found someone who made a foam board version of this plane or at the very least a bunch of similar versions.

this is the tread if u wanna check it out https://forum.flitetest.com/index.php?threads/jh-speed-deamon-a-foamboard-pylon-racer.58734/

this is what it looks like

I love this design and will soon build this my only issue with this design is that its body is a long rectangle I would honestly love it if someone reading this thread would design a foamboard version of the hjk speedwings and make its body a long cylindrical tube just like the body of the BIG MONSTER and then who knows maybe the change is the body shape would mean greater speeds and maybe we can even break the 200 mph barrier with a powerful enough motor. if no one else replies to this thread or no one designs such a plane I will do it myself probably using something like blender,fusion 360 or some other software im posting this thread hoping that this thread might blow up kinda like the speed deamon thread and for know I will download blender and start working on the design.

ill further explain what it im taking about here.

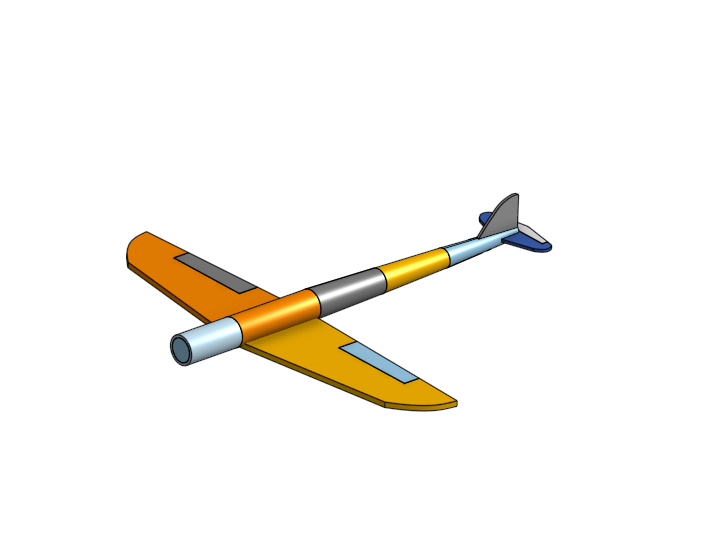

As u can see here the body if this plane is like a long tube and this is exactly want a foamboard speedwings body to look like and im def gonna go to work designing this it might take a while but I will try to do it and I will also post the plans for free. I would also love it if someone reading this goes to work and designs a plane just like this and posts the plans on this thread or gives ideas and suggestions are also much appreciated !!







EDIT: The project is officially underway !!



[Mr Man]

ill further explain what it im taking about here.

As u can see here the body if this plane is like a long tube and this is exactly want a foamboard speedwings body to look like and im def gonna go to work designing this it might take a while but I will try to do it and I will also post the plans for free. I would also love it if someone reading this goes to work and designs a plane just like this and posts the plans on this thread or gives ideas and suggestions are also much appreciated !!







EDIT: The project is officially underway !!



[Mr Man]

It's a low wing so there are no tricky wing mounting systems.



[Zoom Master]

Hey thank u so much for replying and working on this can u possibly send me the design file by any chance ?



[Mr Man]

Hey thank u so much for replying and working on this can u possibly send me the design file by any chance ?

Sure thing, they’re only beta plans, so only black and red lines for full/50% cuts. Once I finalize the plans I’ll make ‘em pretty. (I’ll try to post them here in a bit)



[Zoom Master]

Sure thing, they’re only beta plans, so only black and red li es for full/50% cuts. Once I finalize the plans I’ll make ‘em pretty. (I’ll try to post them here in a bit)

Alright thanks I have started designing it on blender im very excited to see where this will go currently busy so probably wont be able to build this for a while but will soon build this and post the flight video here and on YouTube.




edit : this is gonna be the same scale as the big monster and im thinking of a SCORPION HK 4225-610KV or maybe a leopard outrunner



[Zoom Master]

Sure thing, they’re only beta plans, so only black and red li es for full/50% cuts. Once I finalize the plans I’ll make ‘em pretty. (I’ll try to post them here in a bit)

and can u by any chance let me know what software ur using to design this thanks !!



[Mr Man]

and can u by any chance let me know what software ur using to design this thanks !!

Onshape.



[Mr Man]

Alright thanks im very excited to see where this will go currently on vacation so probably wont be able to build this for a while but will soon build this and post the flight video here and on YouTube.




edit : this is gonna be the same scale as the big monster and im thinking of a SCORPION HK 4225-610KV or maybe a leopard outrunner

Oh, This one is a bit smaller, 800mm wingspan I believe...



[Mr Man]

I have fell down the rabbit hole of fast rc planes and have found out about hjk speedwings if u are unfamiliar with these planes let me give u a quick run down,

this is a hjk speedwing this is one of thier biggest models the "Big Monster" I recently found someone who made a foam board version of this plane or at the very least a bunch of similar versions.

this is the tread if u wanna check it out https://forum.flitetest.com/index.php?threads/jh-speed-deamon-a-foamboard-pylon-racer.58734/

this is what it looks like

I love this design and will soon build this my only issue with this design is that its body is a long rectangle I would honestly love it if someone reading this thread would design a foamboard version of the hjk speedwings and make its body a long cylindrical tube just like the body of the BIG MONSTER and then who knows maybe the change is the body shape would mean greater speeds and maybe we can even break the 200 mph barrier with a powerful enough motor. if no one else replies to this thread or no one designs such a plane I will do it myself probably using something like blender,fusion 360 or some other software im posting this thread hoping that this thread might blow up kinda like the speed deamon thread and for know I will download blender and start working on the design.

This one too.

JH Sharknado - a ridiculous foamboard speed machine

A quick recap for those who haven't been following: #blameBen is the name of the game. @Mid7night started this ridiculous arms race, and I aim to catch up. First there was his Angry Bee, then my Speed Deamon, then his Yellow Jacket, and I've built umpteen things since then trying to catch up by...

forum.flitetest.com



[Mr Man]

plans



[Mr Man]

Maybe I should make another one that has bigger wings...



[Mr Man]

Alright thanks I have started designing it on blender im very excited to see where this will go currently on vacation so probably wont be able to build this for a while but will soon build this and post the flight video here and on YouTube.




edit : this is gonna be the same scale as the big monster and im thinking of a SCORPION HK 4225-610KV or maybe a leopard outrunner

What Prop and ESC??



[Zoom Master]

w

plans

wait did u already make the plans thank u soooo muchhhh !!



[Zoom Master]

What Prop and ESC??

gonna use a Leopard LC5065 with a 8s lipo, 16x8 prop and maybe a 120 amp esc



[Mr Man]

w

wait did u already make the plans thank u soooo muchhhh !!

No problem!!



[Mr Man]

gonna use a Leopard LC5065 with a 8s lipo, 16x8 prop and maybe a 120 amp esc

Hmm, that comes out to a total PITCH speed of 147mph...



[Zoom Master]

so iv decided that im gonna use these plans for a while and in the meantime gonna perfect my own design of the foamboard big monster which I shall call the "APEX PHANTOM"



[Zoom Master]

Hmm, that comes out to a total PITCH speed of 147mph...

UHMMM IS THAT BAD ??
