FTFC-25 MS Design And Build, Extra 300

Mr Man

Mr SPEED!
Link to main challenge: https://forum.flitetest.com/index.php?threads/ftfc’25-ms-design-and-build.77630/

Here We Go, @balsa basher asked if someone would design one, so I decided to make it part of this challenge!!


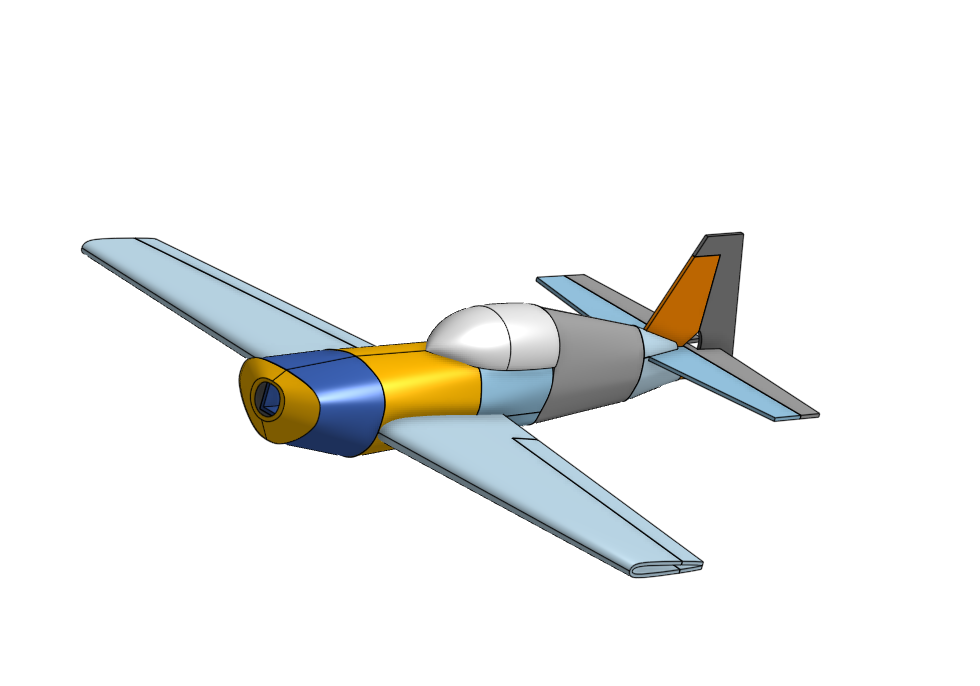

extra 300.png


Attachments

  • MS Extra 300 Instruction Sheet.pdf
    3.7 MB · Views: 0
  • Extra 300 Tiled.pdf
    3.3 MB · Views: 0
  • MS Extra 300.pdf
    12.7 MB · Views: 0
Last edited:

Mr Man

Mr SPEED!
This is the current build log, not sure If I'm gonna keep it like this or not, but here ya'll go!



Screenshot 2025-05-12 094702.png

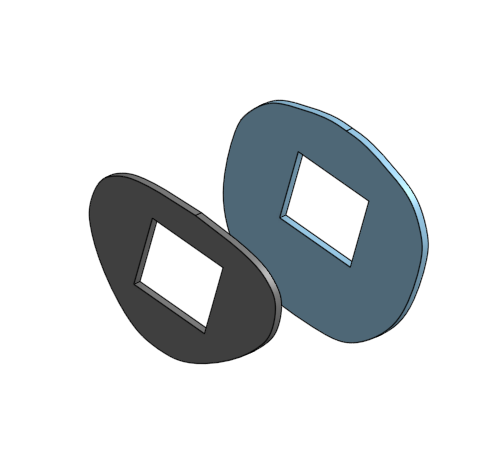

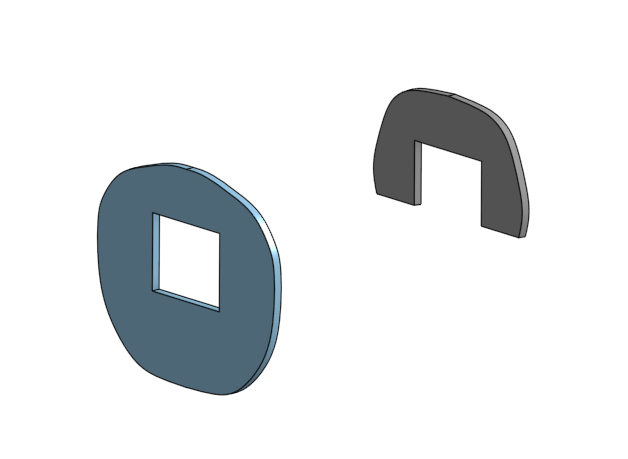

Start with F1 And F2.



Screenshot 2025-05-12 094713.png

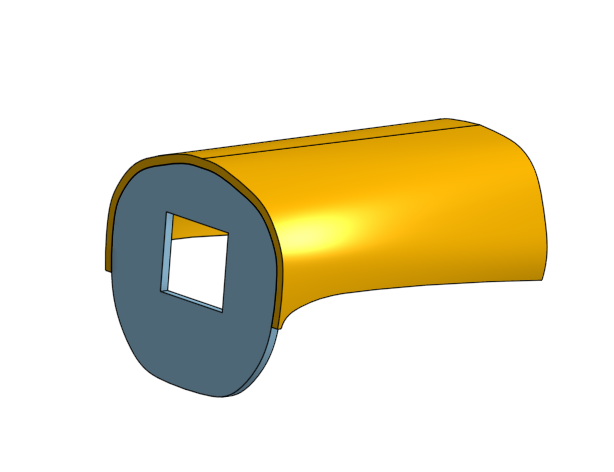

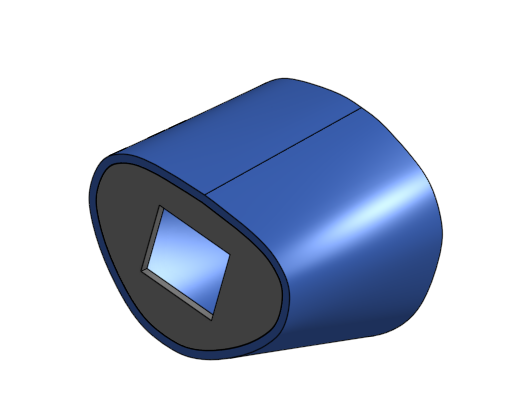

Now Using the John Overstreet techniques, Glue Skin 1 onto F1 and F2.



Screenshot 2025-05-12 094829.png

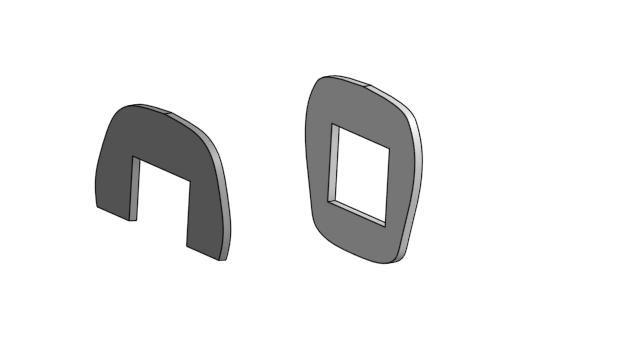

Grab the Second F2 And an F3 Top.


Screenshot 2025-05-12 094955.png


Glue Skin 2 Top on.


Screenshot 2025-05-12 095107.png

Grab the second F3, and F4.


Screenshot 2025-05-12 095134.png

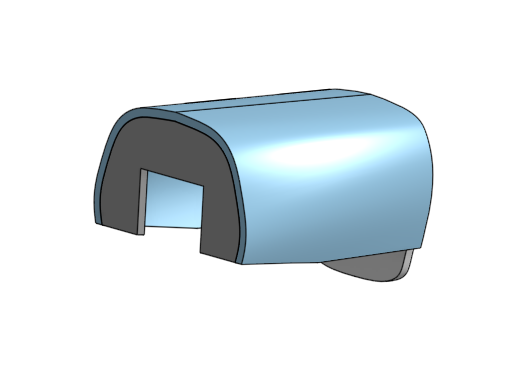

Glue Skin 3 Top on.



Screenshot 2025-05-12 095354.png

Glue up the main centerpod. (B Fold)



Screenshot 2025-05-12 095600.png

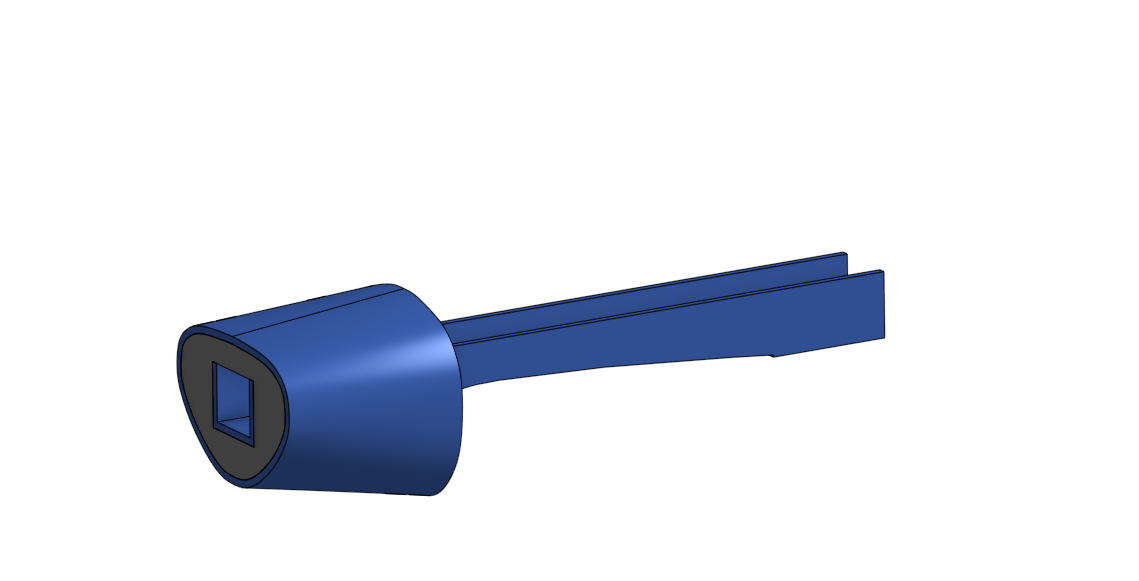

Slide the First Skin section all the way to the front, then glue it in place.


Screenshot 2025-05-12 095902.png

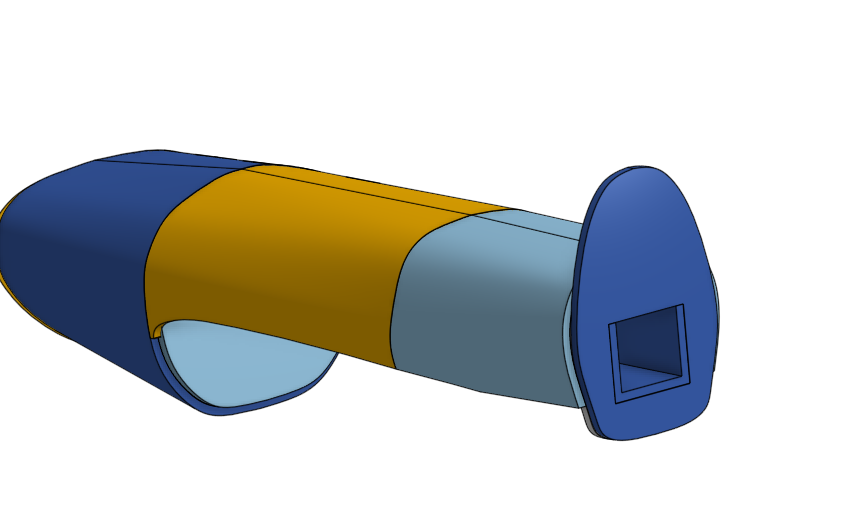

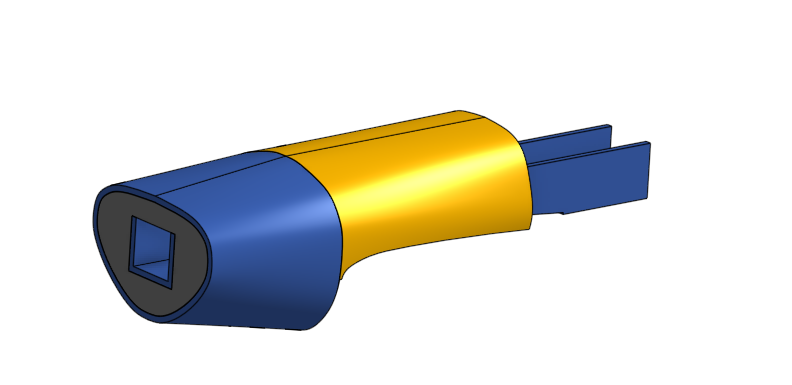

Slide Skin section 2 all the way up to Skin Section 1. Now glue them together. (also glue Skin section 2 to main center pod)


Screenshot 2025-05-12 095914.png

Do the same with Skin Section 3.



Screenshot 2025-05-12 100411.png

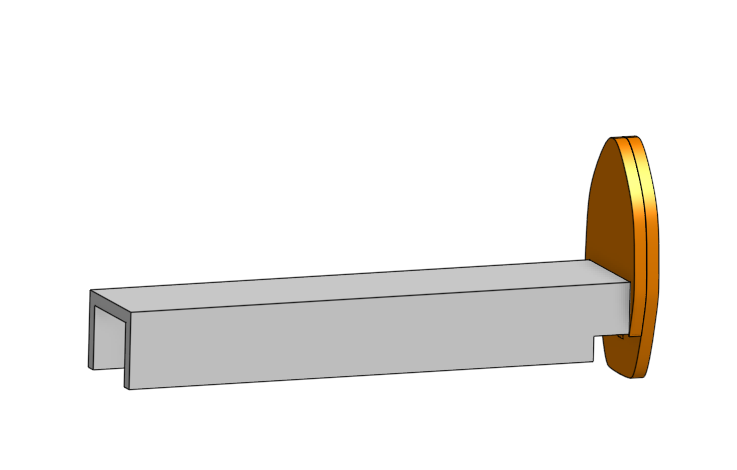

Glue the Rear CenterPod (B Fold) To Formers F6 and F7.




Screenshot 2025-05-12 100452.png

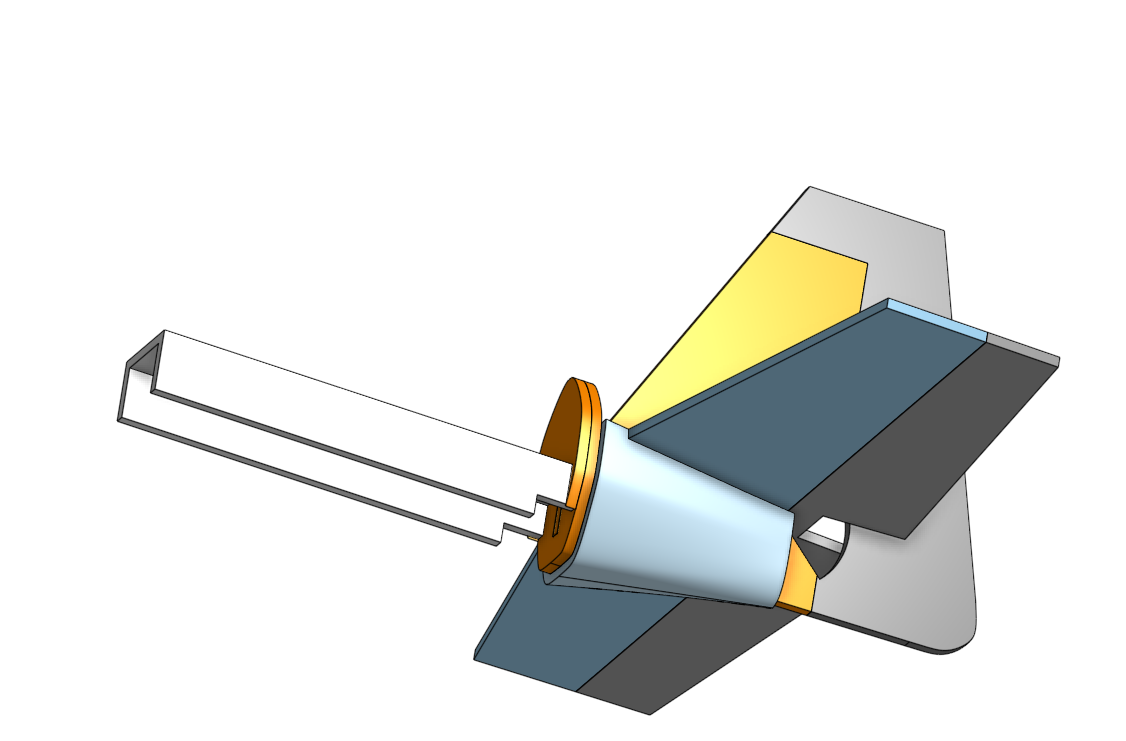

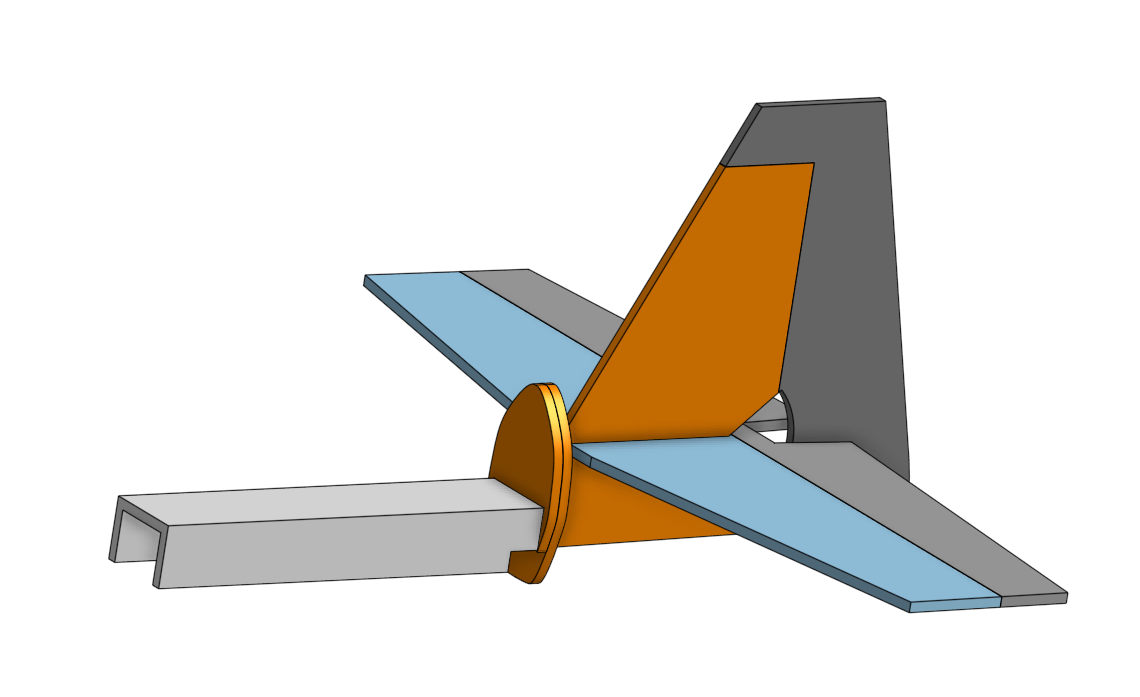

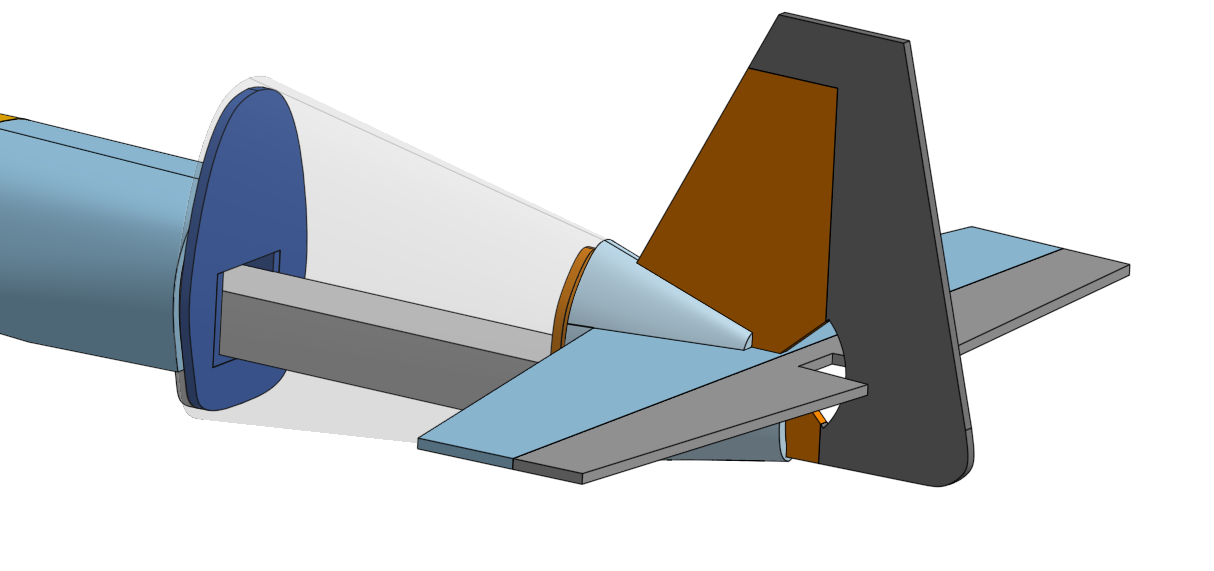

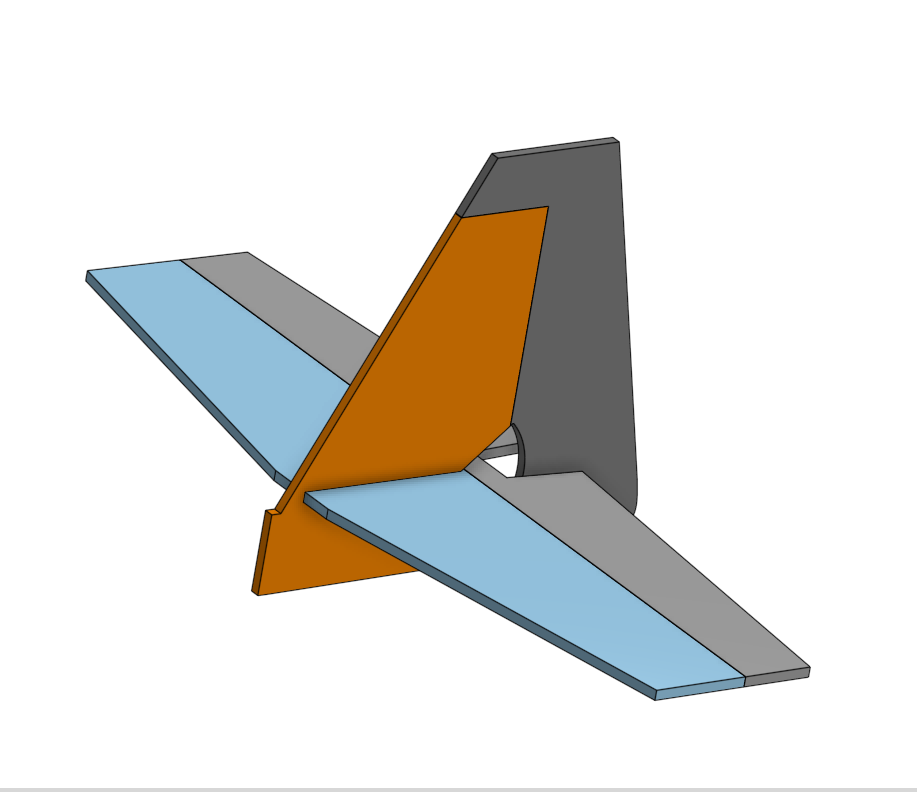

Slide the Horizontal Stabilizer through the Vertical Stabilizer as shown.



Screenshot 2025-05-12 100536.png

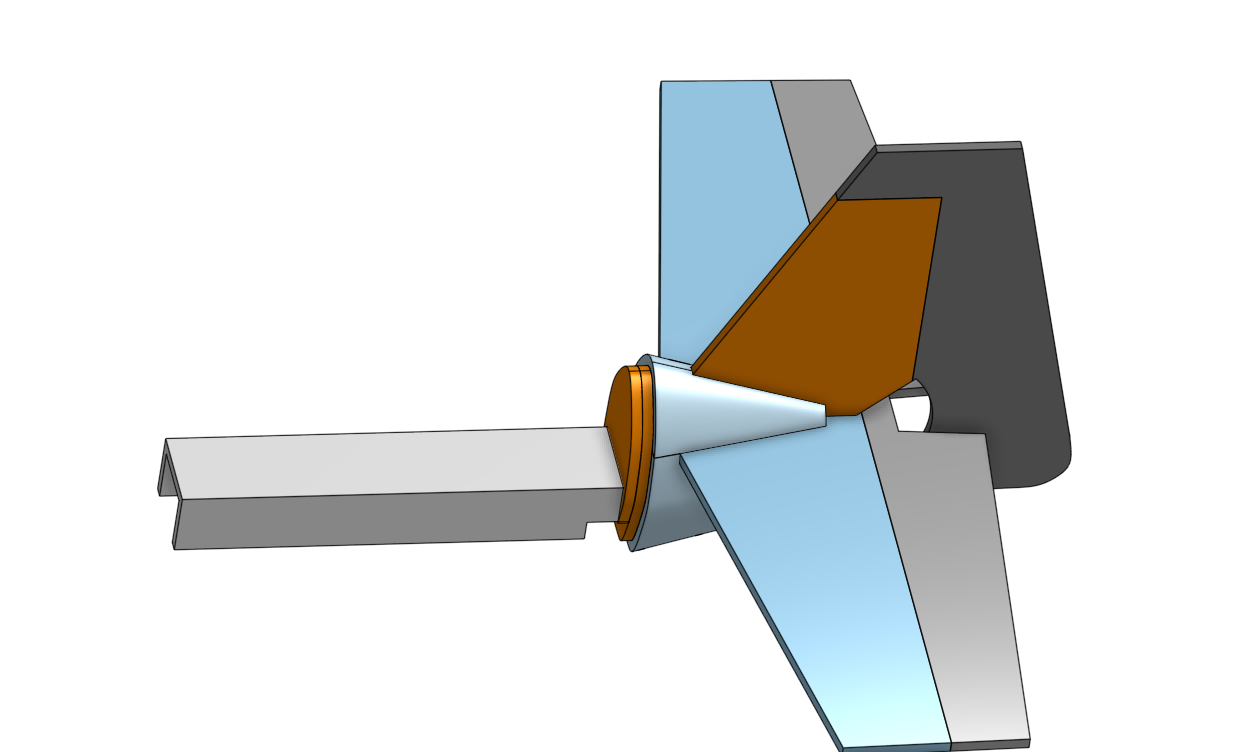

Glue the Vertical/Horizontal Stabilizer assembly to F7.




Screenshot 2025-05-12 100659.png

Glue on Skin 5 Bottom as shown.




Screenshot 2025-05-12 100716.png

Do the same with Skin 5 Top.

Now Install the servos and control rods. (servos glue onto Rear CenterPod)



Screenshot 2025-05-12 100906.png

Glue Former F5 onto main Fuselage Assembly.




Screenshot 2025-05-12 101024.png

Skin 4 then gets glued onto Former 5.




Screenshot 2025-05-12 101112.png

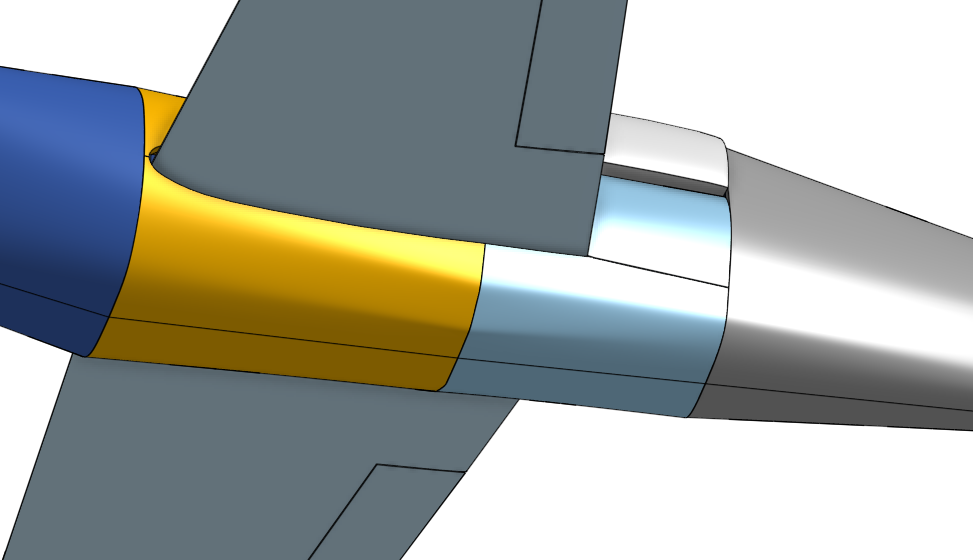

Glue Tail assembly onto main Fuselage Assembly, making sure to put glue on the rear CenterPod.




Screenshot 2025-05-12 101130.png

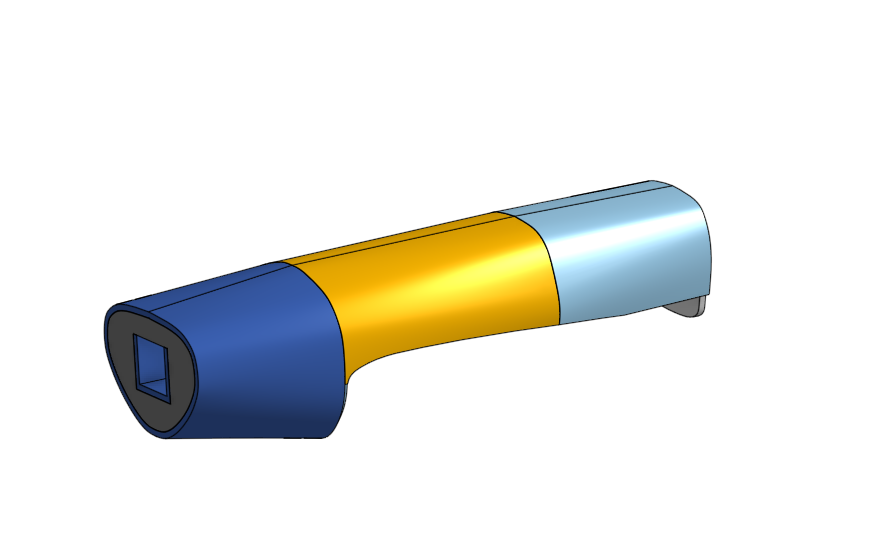

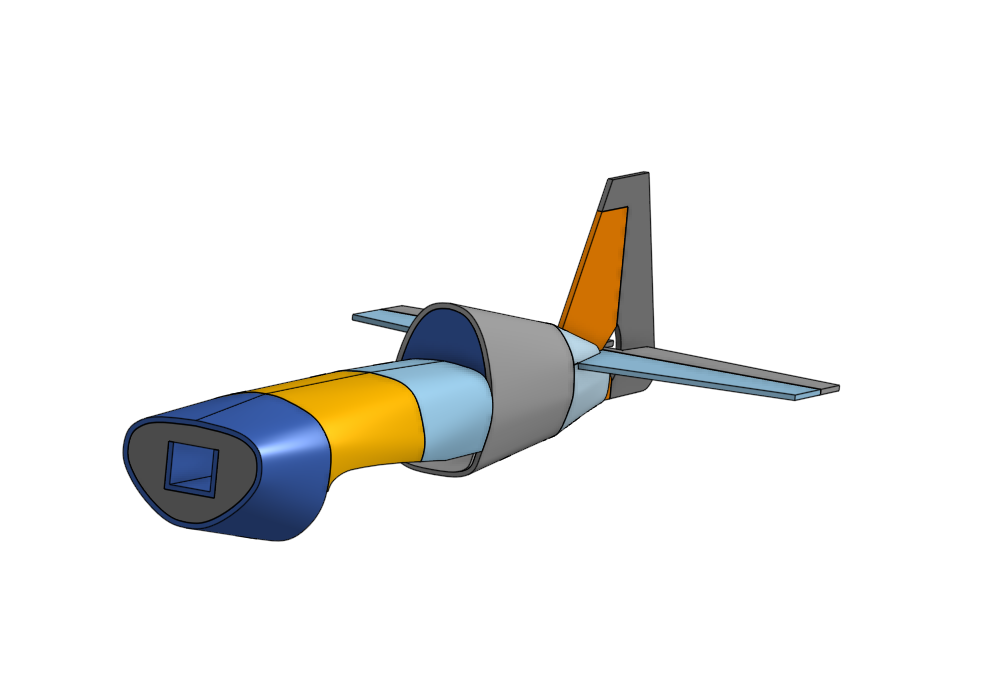

Here is how it should look.




Screenshot 2025-05-12 101217.png

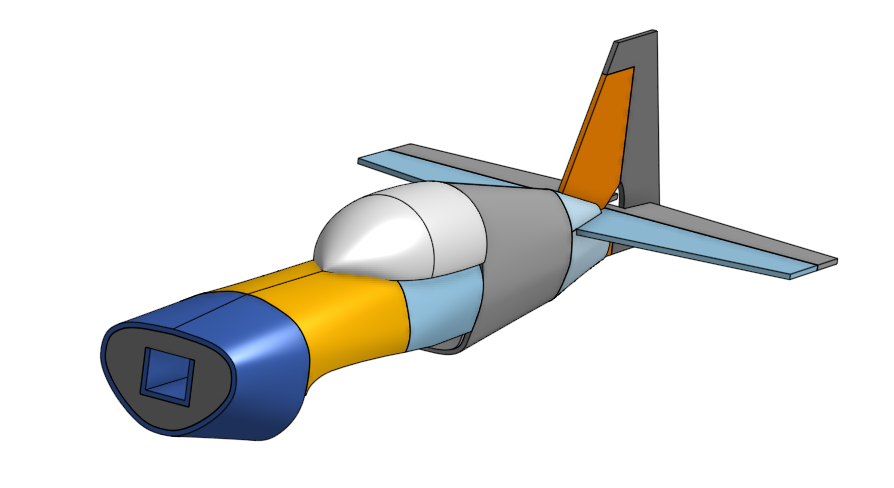

Assemble and Glue on the Canopy. (a clear canopy would look really good on this, but that's up to you)




Screenshot 2025-05-12 101516.png

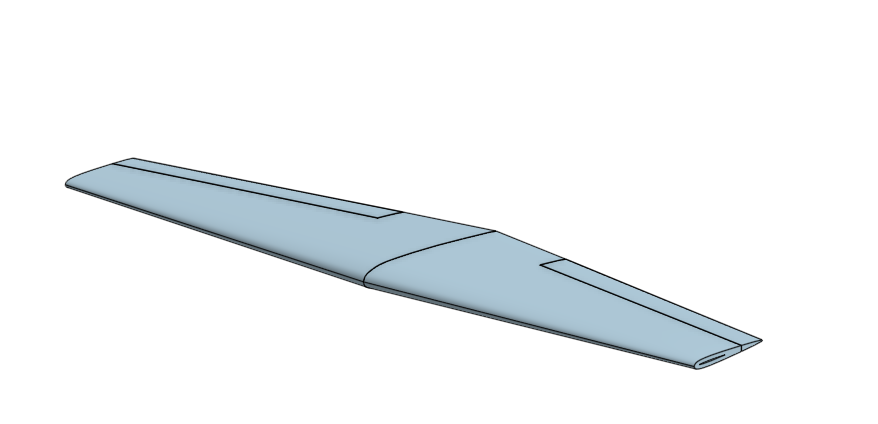

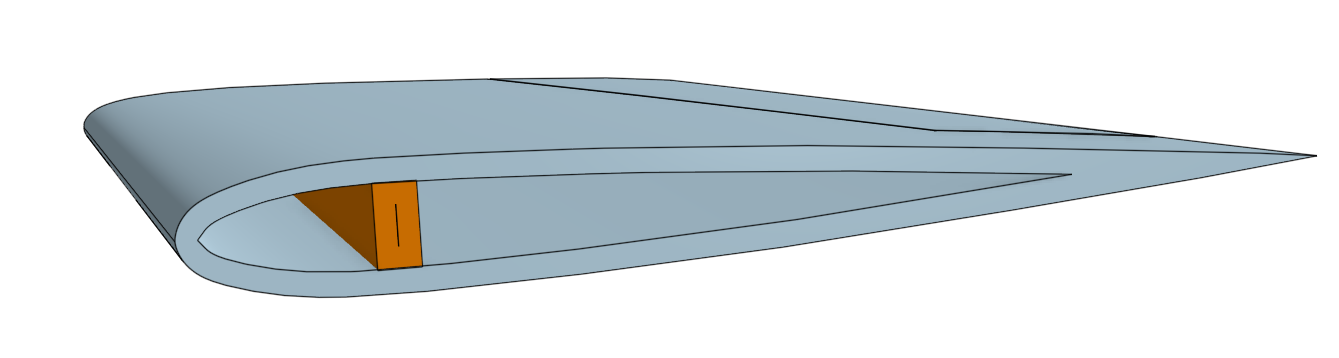

Using the Armin technique, form the wing and then glue everything together. (spar build is similar to FT P-40 Spar)
Repeat on other wing.



Screenshot 2025-05-12 101534.png

Glue the two Wing halves together with traditional FT techniques/.




Screenshot 2025-05-12 101723.png

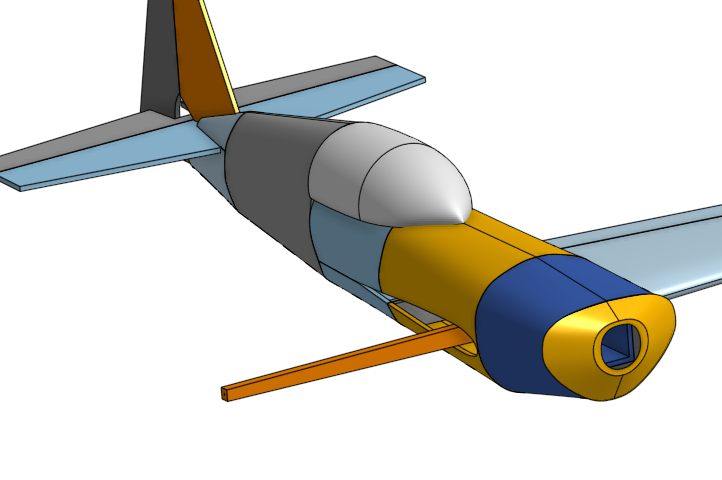

Glue wing onto Fuselage.




Screenshot 2025-05-12 101838.png

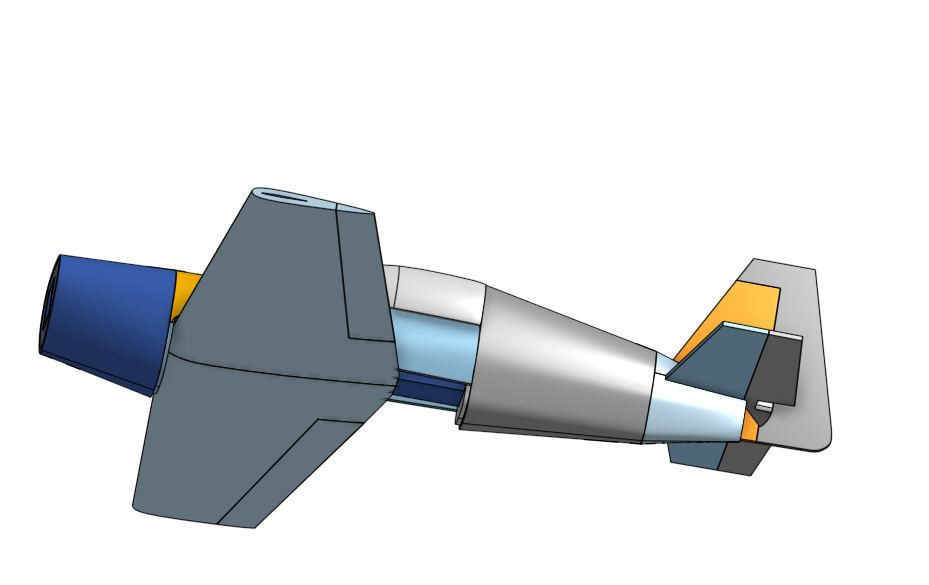

Glue Skin 2 Bottom and F3 Bottom onto Fuselage and Wing.




Screenshot 2025-05-12 101946.png

Do the same with Skin 3 Bottom, also using the other F3 Bottom





Screenshot 2025-05-12 102000.png

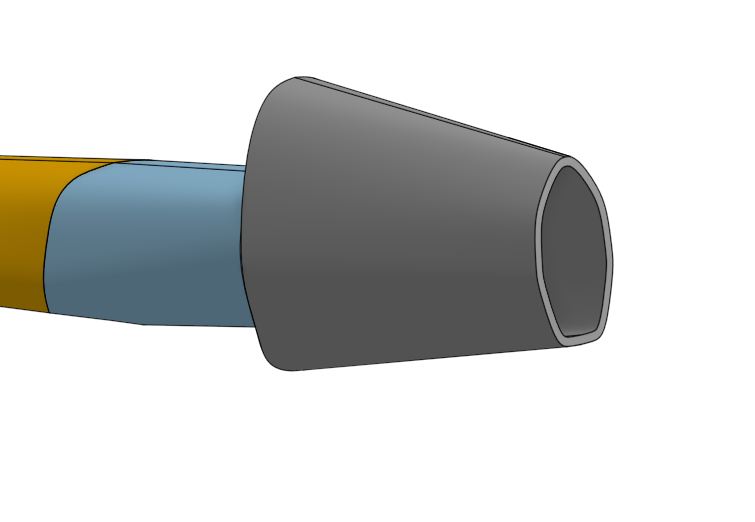

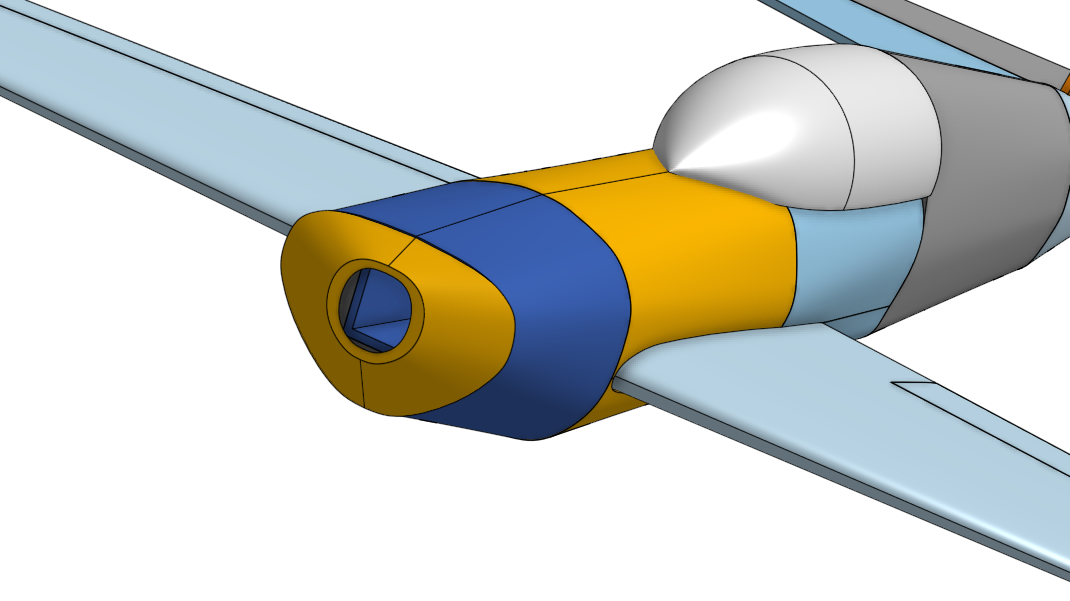

Glue on the faux cowling, (not sure how this will turn out, but hopefully it does.
