FTFC'25 MS Design I 153 designed by FlyerInStyle

[FlyerInStyle]

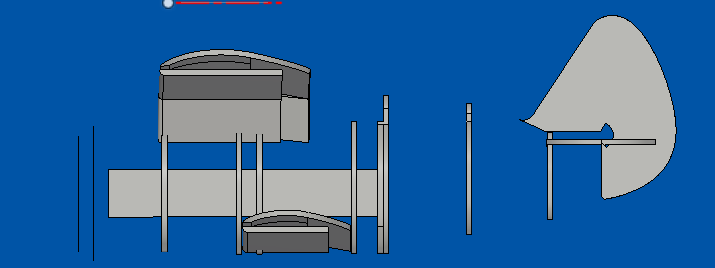

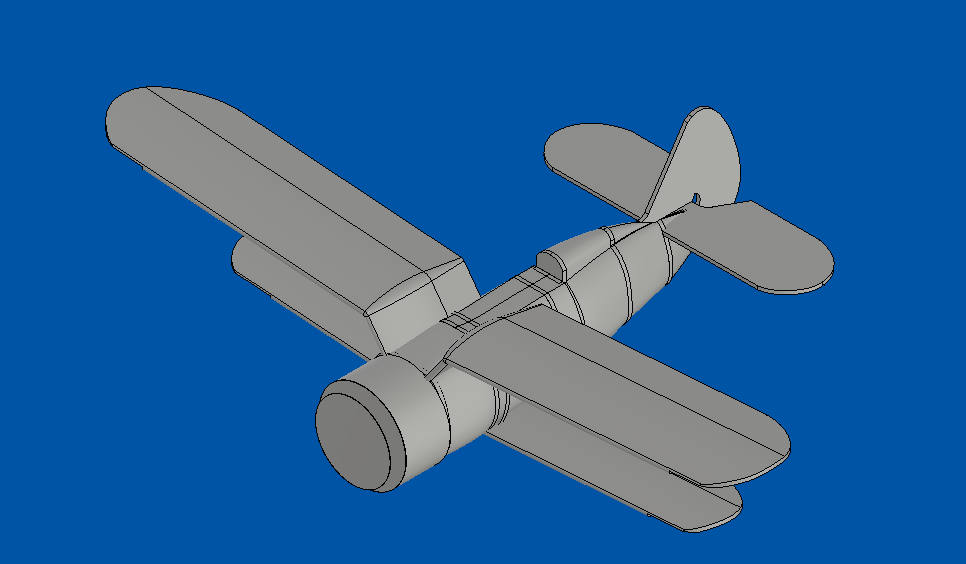

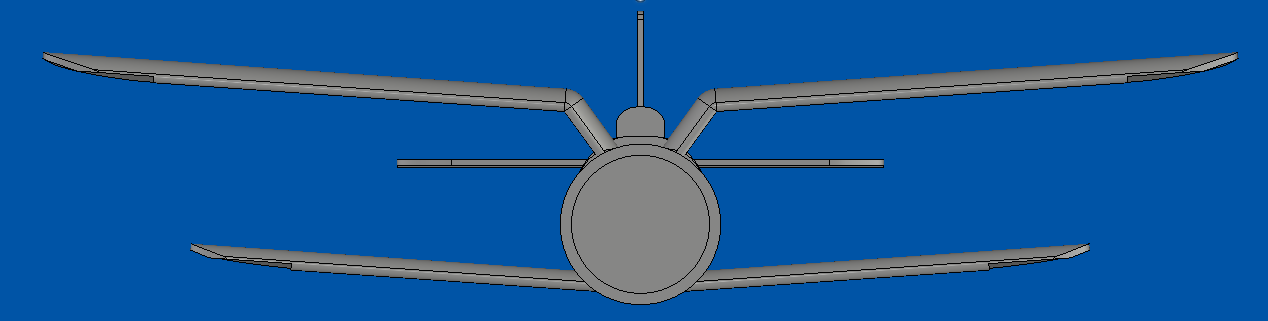

after a good amount of redesign I got it to the point that i like it, and next up is the skins and after making 2d plans (I was really unhappy with the design before, now it seems nice. I may try to make the skins in onshape, that seems to have worked well for others



[FlyerInStyle]

good with skins, just some fine tuning now, the elevator cutout is off but at this point I'll "Fix it in post" by fixing it in the 2d cad stage, itll be much easier than in 3d. The windshield is also missing but that is currently to me of minor concern



[FlyerInStyle]

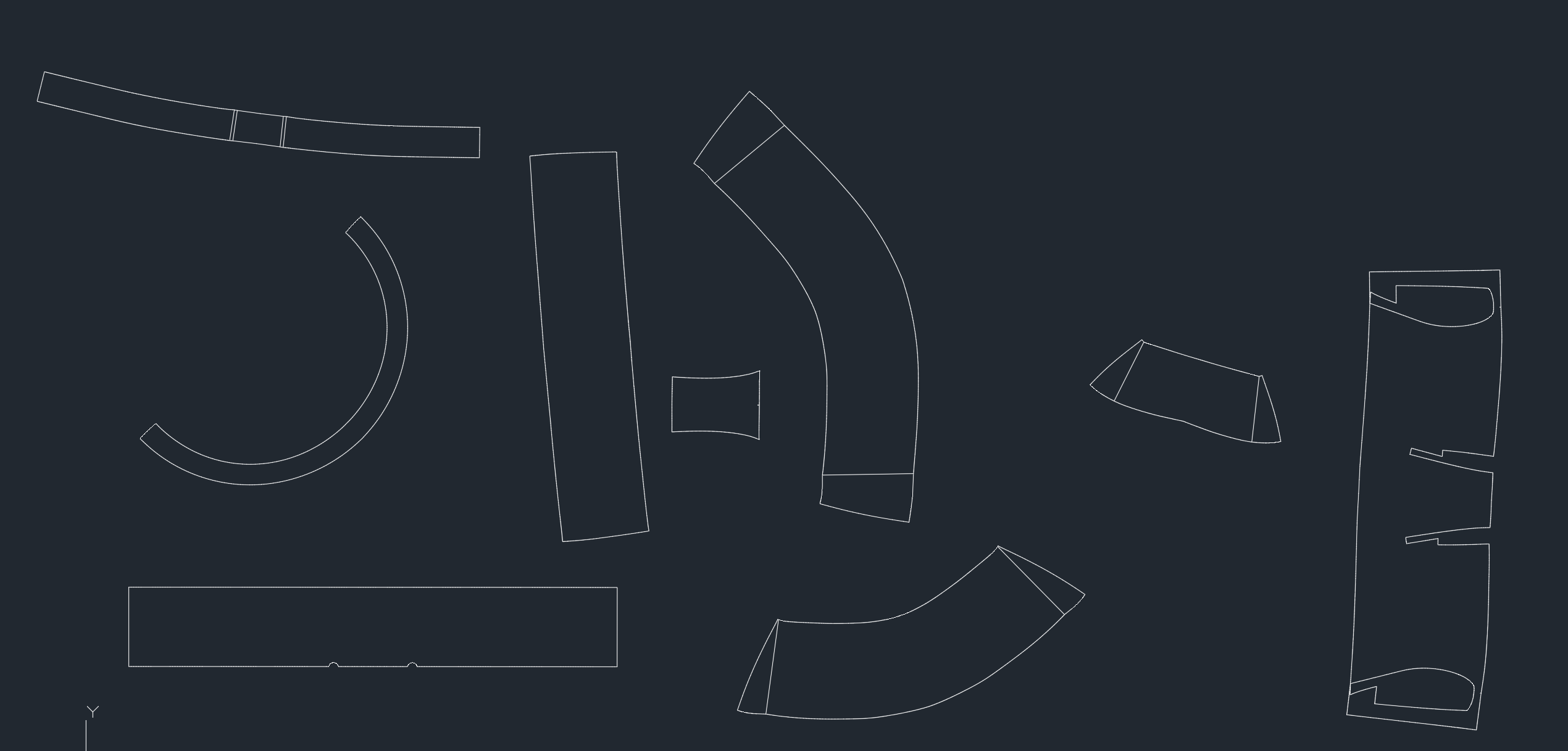

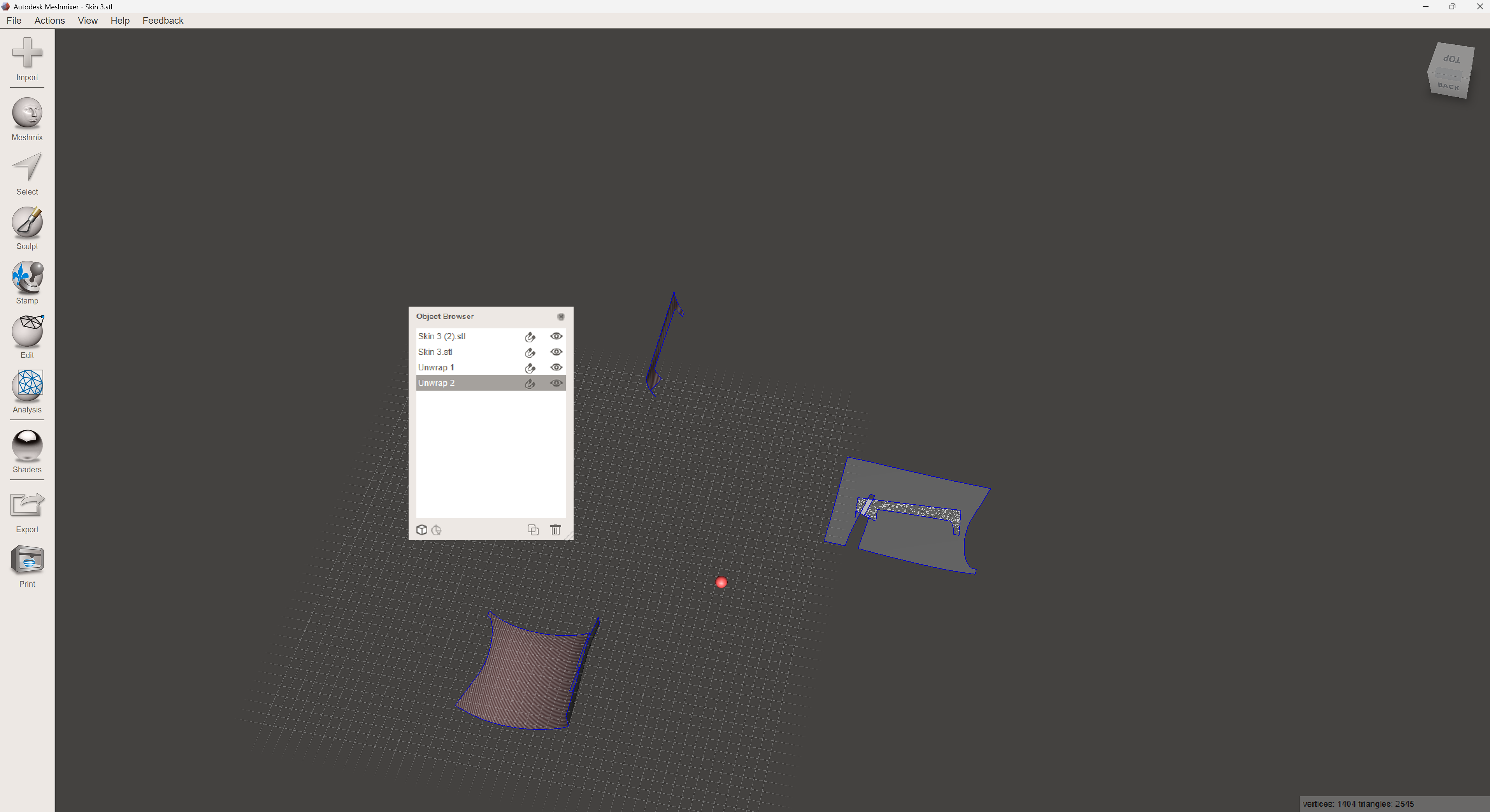

did some meshmixer unfolding and got some ready skins! now I just got to finish everything else, and may have a nice set of plans. The wing should take the longest, but I wont be unfolding that in mesh mixer, as I got a good profile from miniacRC that I used for the J21, and with a good amount of tweaking it will be very easy to get a plan down, so will now do that. A bit more time in AutoCAD and I may finally get there! for anyone wanting to replicate this, this is the process I followed:



[FlyerInStyle]

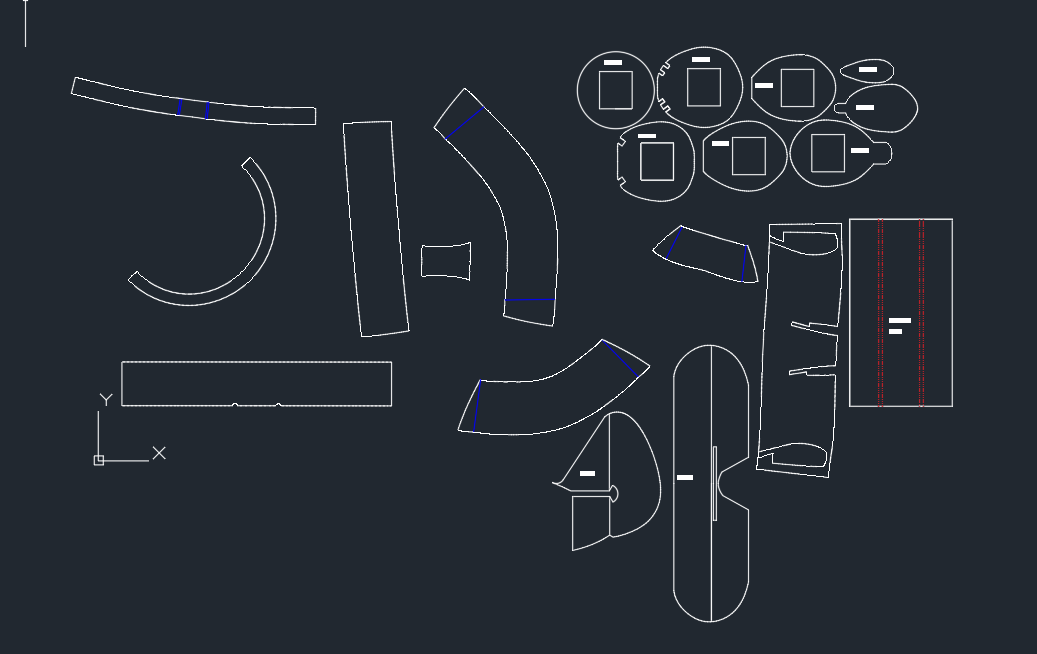

got everything unfolded except for the wings, which I am struggling with. plans are almost ready, time to start organizing a bit.



[FlyerInStyle]

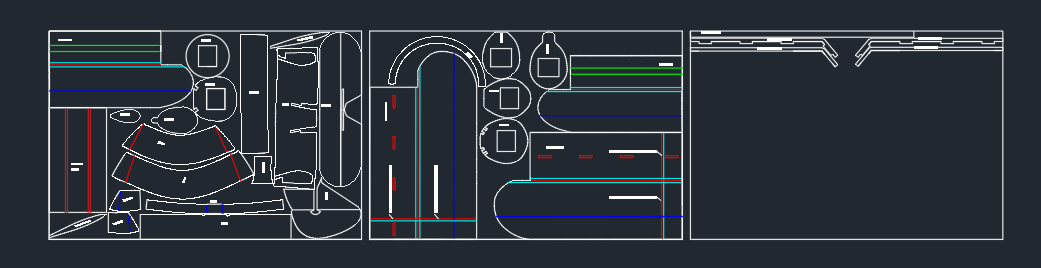

I spent a long time organizing everything into two foam sheets, I was so proud of it, and then realized I forgot the wing spars... sadly, its time to add a 3rd sheet and only put wing spars on it, at least it'll only be around 2.25 sheets... so be it. It looked so good with 2 filled up sheets.



[Mr Man]

I spent a long time organizing everything into two foam sheets, I was so proud of it, and then realized I forgot the wing spars... sadly, its time to add a 3rd sheet and only put wing spars on it, at least it'll only be around 2.25 sheets... so be it. It looked so good with 2 filled up sheets. View attachment 251429

Who needs spars? Jk😂👍



[FlyerInStyle]

Who needs spars? Jk😂👍

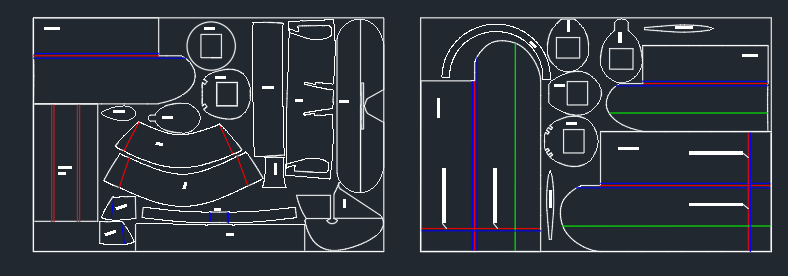

if only... after a bit more tweaking this is what I settled on



[Mr Man]

if only... after a bit more tweaking this is what I settled on View attachment 251431

Looks great!👍👍👍👍👍



[FlyerInStyle]

would anyone like to build this? I am not sure I will have the time to build and test multiple times so any input I could get would be greatly appreciated!



[FlyerInStyle]

attached here is the dwg file, I will send the pdfs in a bit, gotta wrestle with custom plot sizes in autocad



[Mr Man]

attached here is the dwg file, I will send the pdfs in a bit, gotta wrestle with custom plot sizes in autocad

Argh, I so busy! (Otherwise I would). Cause I’ve still got to build my Extra 300, Finish the Hotliner, Finish a Rocket Wing, and Maybe even Houndpup’s SR-71….



[FlyerInStyle]

Here are the PDF plans for anyone who would like to build it (hopefully there is someone who would like to build it)



[FlyerInStyle]

Argh, I so busy! (Otherwise I would). Cause I’ve still got to build my Extra 300, Finish the Hotliner, Finish a Rocket Wing, and Maybe even Houndpup’s SR-71….

good luck on your builds!



[Mr Man]

good luck on your builds!

Thanks! You too!



[FlyerInStyle]

I might bring the plans to flitefest and see if anyone is willing to build it there!



[FlyerInStyle]

for anyone test building this I forgot to adad ailerons and servo holes, but I will do that once I build this myself, hopefully before the challenge ends.



[FlyerInStyle]

I honestly cannot bring myself to building this currently, (I would build it but I can't bring myself to timing and cutting out the parts) so if anyone would like to beta build this, please let me know, I would greatly appreciate it.
