With not all that much guidance, I have gotten Gemini to give me workable dimensions, power systems, and construction methods for an RC plane, but it doesn't put it into CAD and I did have to convince it that all three gear struts should not go ahead of the CG to help the plane rotate, and I did need to know what questions to ask it in the first place - e.g. it would not have told me how much washout to include had I not asked it how much I should have

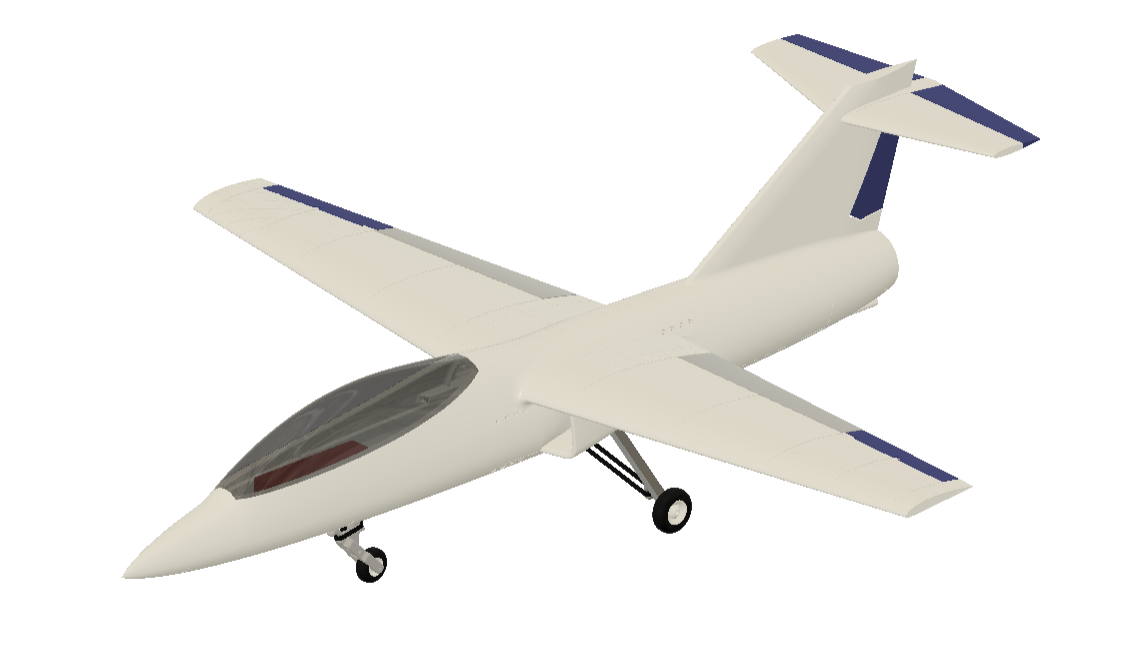

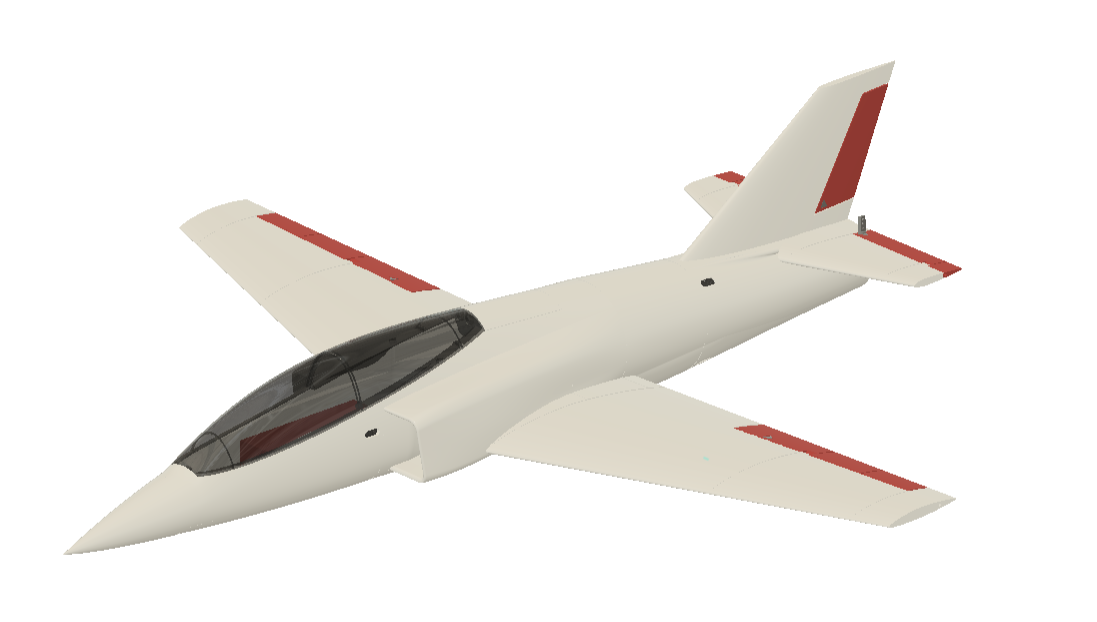

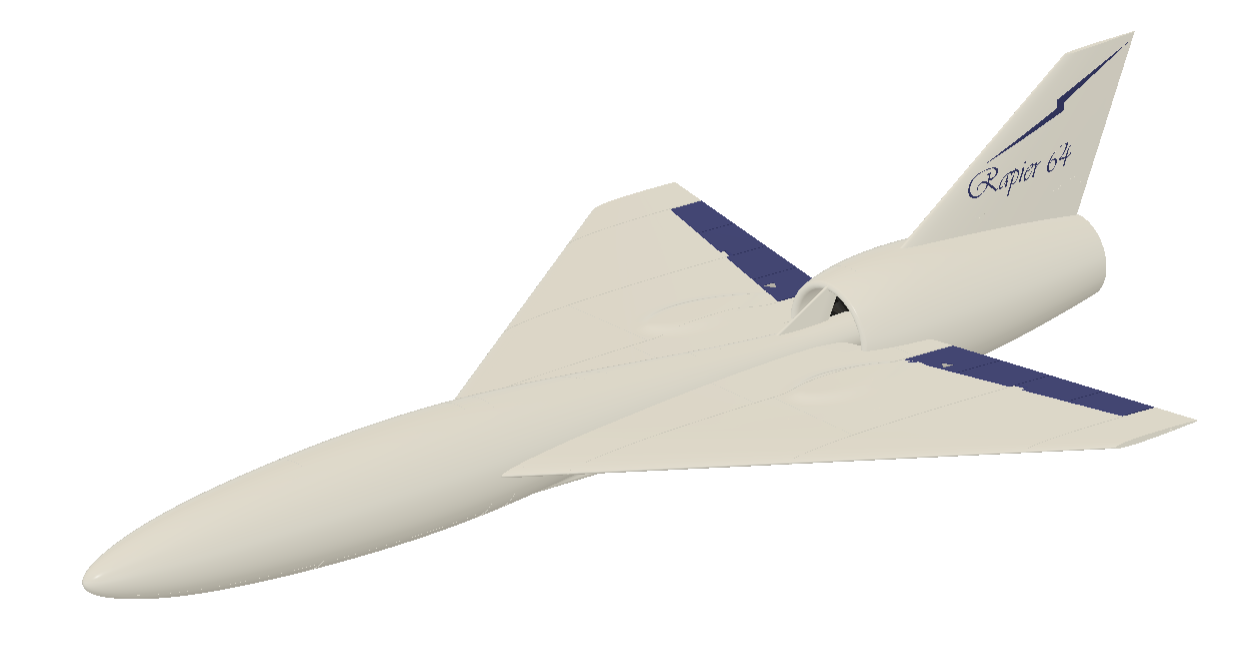

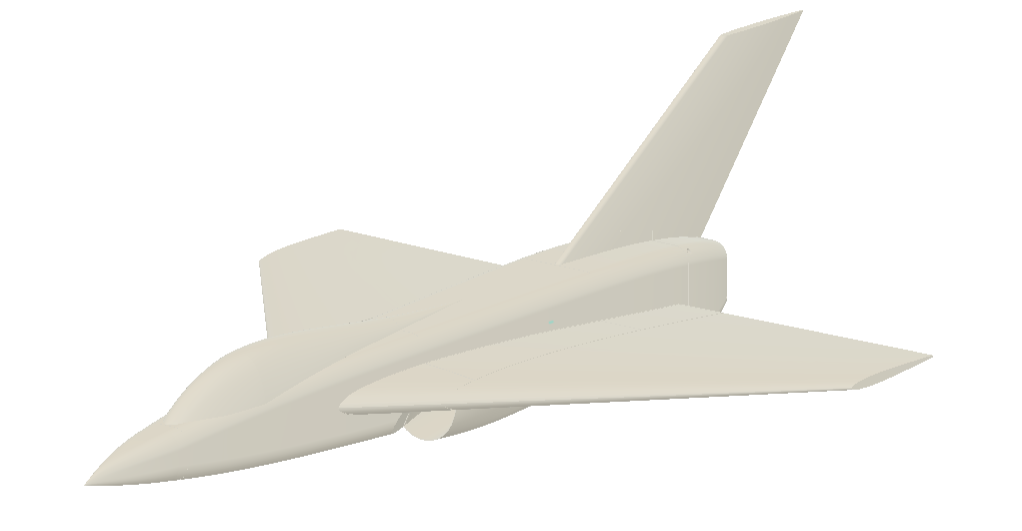

This is an example prompt that gave a fairly reasonable answer. I think the recommended CG is somewhat tail heavy but the rest seems at least plausible. The picture is very obviously wrong and has the EDF in front of the inlets
Prompt:
Could you please give me all critical dimensions required to build a 50mm EDF jet design of your choice? You may just list the airfoil types instead of needing to fully define them, but please give me dimensions like wingspan, length, wing sweep, position of the wings and tail, etc. Please also recommend a construction method and a set of commercially available parts I could use for electronics (receiver, battery, ESC, EDF unit, and servos). Finally, please generate a picture of the aircraft you have designed and described
Response:
Here is a comprehensive design concept, a dimension list, a construction guide, and a recommended electronics package for a 50mm Electric Ducted Fan (EDF) jet. I have designed this aircraft, the
"Kestrel-50", specifically to be easy to build, forgiving for a first-time EDF pilot, and highly efficient.
I. Aircraft Concept: The Kestrel-50 Sport Jet
The Kestrel-50 is a
low-wing, single-engine sport jet. It is not a scale model of a real military aircraft, but rather a dedicated "park jet" designed for performance. Its defining features are a large, high-lift wing for slow-speed stability, a simple fuselage structure, and a highly efficient, direct ducting path for the EDF.
II. Critical Dimensions
All dimensions are given in millimeters (mm) and are approximate guides for cutting your material.

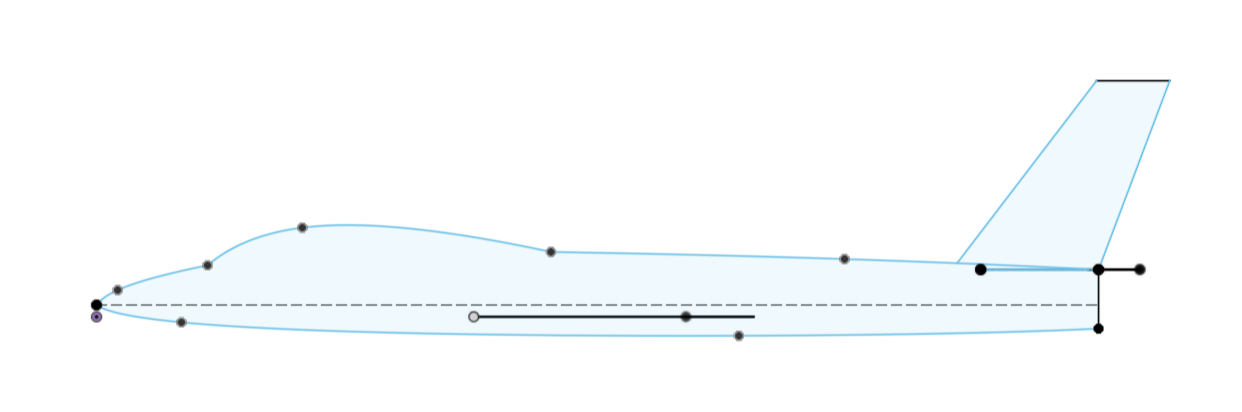

General Dimensions
| Component | Dimension (mm) |
| Wingspan (Total) | 700 mm |
| Fuselage Length (Total) | 850 mm |
| Target All-Up Weight (AUW) | 550g - 650g |

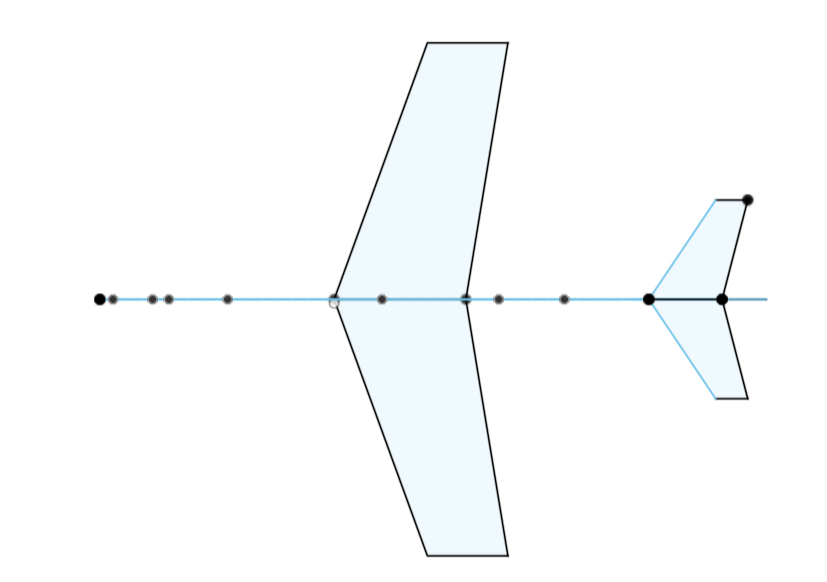

Wing Dimensions
- Airfoil: Clark Y (flat-bottom, high lift, modified slightly thinner for less drag).
- Root Chord: 180 mm
- Tip Chord: 110 mm
- Wing Sweep (Leading Edge): 20 degrees back.
- Wing Position: Mounted on the bottom of the fuselage. The Leading Edge (LE) of the root should be located 320 mm back from the nose tip.
- Dihedral: 2 degrees per wing panel (slight upward angle) for stability.
- Control Surfaces: Ailerons only (full span of the tapered section).
Tail Dimensions (Horizontal Stabilizer & Elevator)
- Airfoil: Flat plate (6mm foam).
- Span: 280 mm
- Root Chord: 100 mm
- Position: Mounted on the top edge of the fuselage at the very rear.
- Control Surfaces: Single elevator (full span).
Tail Dimensions (Vertical Stabilizer & Rudder)
- Airfoil: Flat plate (6mm foam).
- Height: 160 mm
- Root Chord: 120 mm
- Position: Mounted centrally on top of the rear fuselage/horizontal stabilizer.
- Control Surface: Rudder is optional for this weight class; elevons/elevator+aileron is sufficient. If included, make it the rear 30% of the surface.
Center of Gravity (CG)
- CG Location: This is the most critical measurement. It should be 145 mm back from the root leading edge of the wing where it meets the fuselage. Always balance your model before flying.
III. Construction Method: "Foamboard-Skin" over "Profile-Spine"
This hybrid method combines the simplicity of a profile plane with the sleek look and strength of a full-body model. It is perfect for a scratch-builder.
- The Spine (Skeleton): Cut a vertical profile of the entire aircraft fuselage from one sheet of 6mm foamboard. This defines the length and height. Cut slots where the wing spar and horizontal tail will pass through.
- Internal Formers: Cut circular or square formers from 6mm foam that define the cross-section of the fuselage (e.g., at the nose, cockpit, EDF intake, EDF exhaust). Glue these perpendicularly to the vertical spine.
- The Wing: Build the wing from a 6mm foam base panel, scoring and folding a 3mm foam top skin over a simple spar (a 4mm carbon fiber tube is highly recommended). Use the flat bottom profile for easy building.
- Ducting: Use smooth, flexible material like poster board, acetate sheet, or thin plastic rolled into a tube to create the intake and exhaust ducts. Do not use rough foam for internal ducting, as it creates too much drag.
- Skinning: Once the electronics and ducting are installed on the spine, wrap the entire fuselage structure in 3mm foamboard or thin, heat-curled Depron skin.
- Finishing: Tape all leading edges and control surface hinges with high-quality packing tape.
IV. Recommended Commercially Available Electronics
Here is a balanced package of parts available from standard hobby retailers (like HobbyKing, Motion RC, or Amazon).
| Component | Recommendation | Specifications |
| EDF Unit & Motor | Powerfun 50mm 11-Blade EDF (or FMS/E-flite equivalent) | Must be rated for 4S LiPo. Motor should be ~4300Kv to 5000Kv. |
| ESC (Speed Controller) | Hobbywing SkyWalker 40A / 50A Brushless ESC | A 40A ESC is sufficient, but 50A provides a safety margin. Must have a BEC (Battery Eliminator Circuit) to power the servos. |
| Battery (LiPo) | 1300mAh - 1600mAh 4S (14.8V) 40C+ LiPo | 4S is required for jet-like performance. Keep the capacity low to manage weight. |
| Servos | 4x EMAX ES08A II (9g) Micro Analog Servos | These are plastic gear, very light, and reliable for small models. |
| Receiver (Rx) | Spektrum AR410 (DSMX) 4-Channel or manufacturer equivalent | Minimum 4 channels: Throttle, Aileron, Elevator, (Optional Rudder). |
V. Design Picture
Based on the specifications above, I have generated a visualization of the

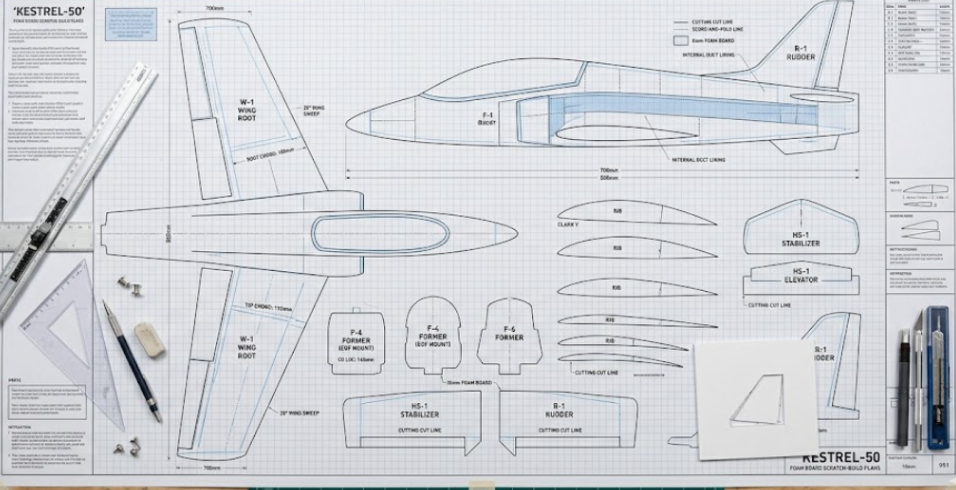

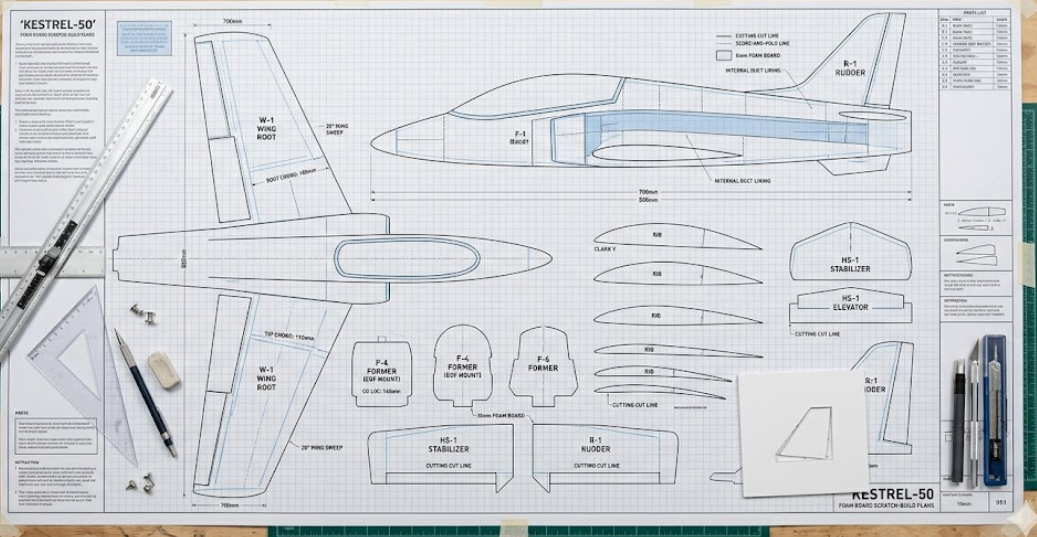

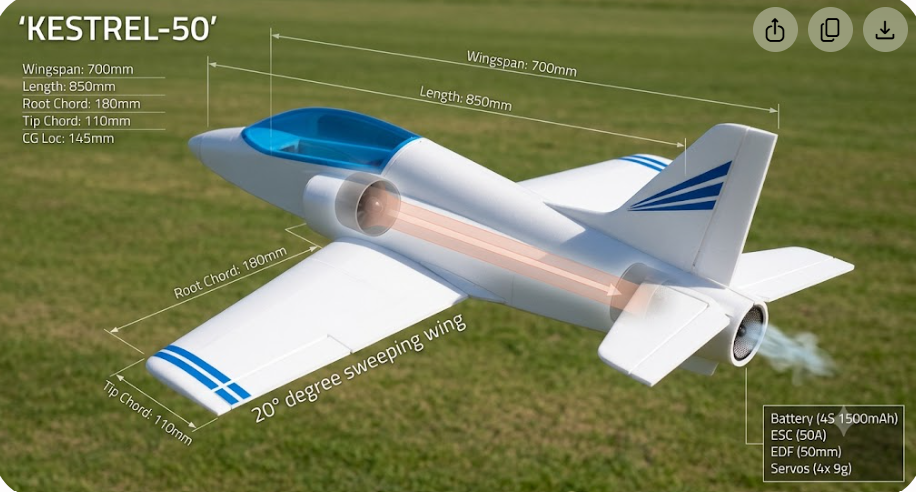

Kestrel-50 in flight, showing its final form, component layout, and specialized ducting design.
