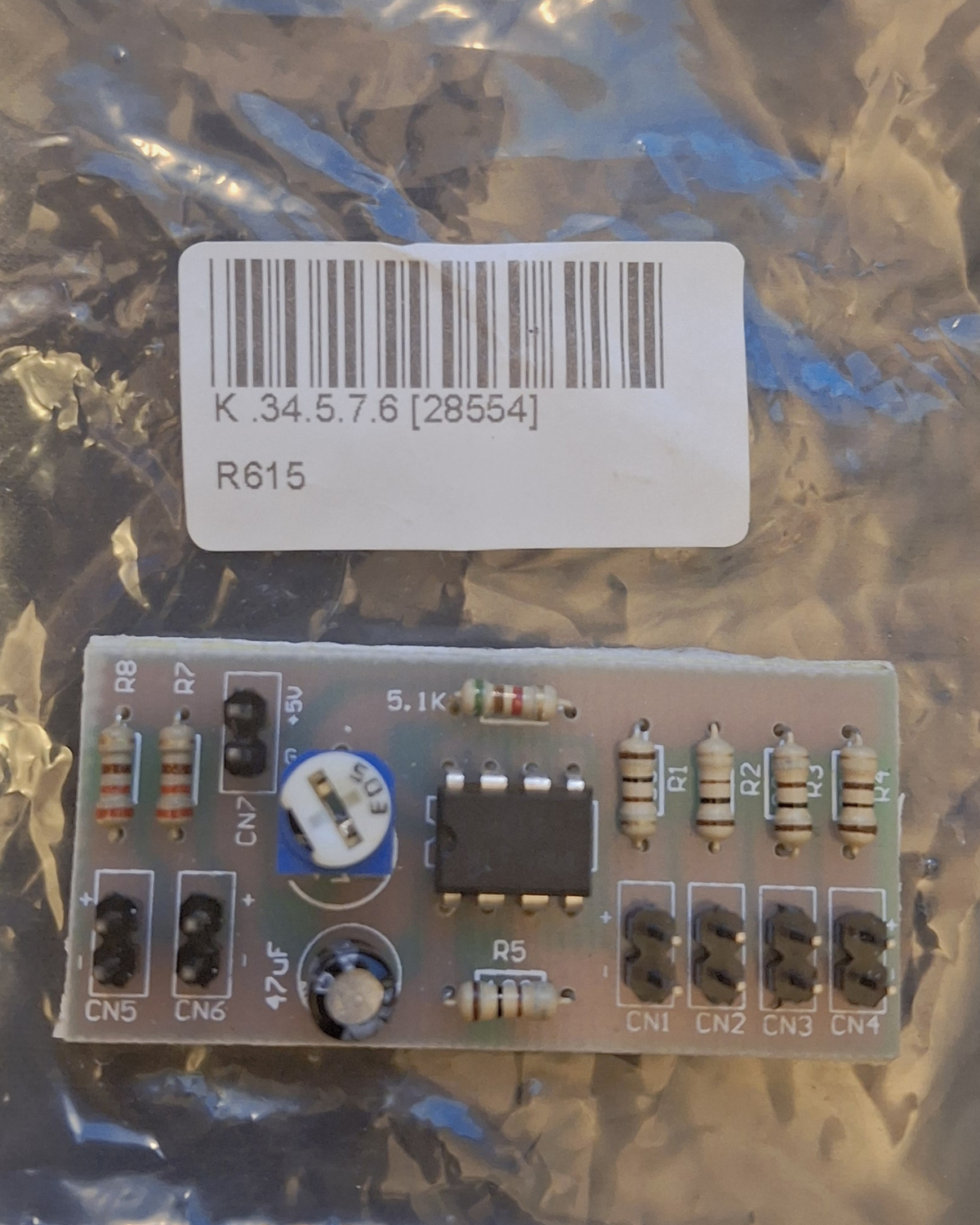

Greetings to all and I'd appreciate anyone's help in identifying the circuit/pcb that I found in a collection of RC parts that was donated to our club. It is barely visible in this shot, but the IC is a 555, and the 7 connectors are labeled CN1-CN7 with CN7 having G and +5 labels. My own guess is a timing circuit for lights, but I wasn't able to find a visual match after a few hours looking online. I'm hoping that someone can ID it so I can find a connection diagram.
