RotorX Atom build

[C0d3M0nk3y]

I decided to try out a RotorX Atom to see what these very small brushless quads are like. I'll keep track of my progress here.

Initial specs:

MK 14: RotorX Atom

motors: RotorX 1104
ESCs: DYS SN20a (SimonK)
FC: RMRC Dodo (Cleanflight)
RX: FrSky X4R-SB
telemetry: FrSky FBVS-01
props: RotorX 3020

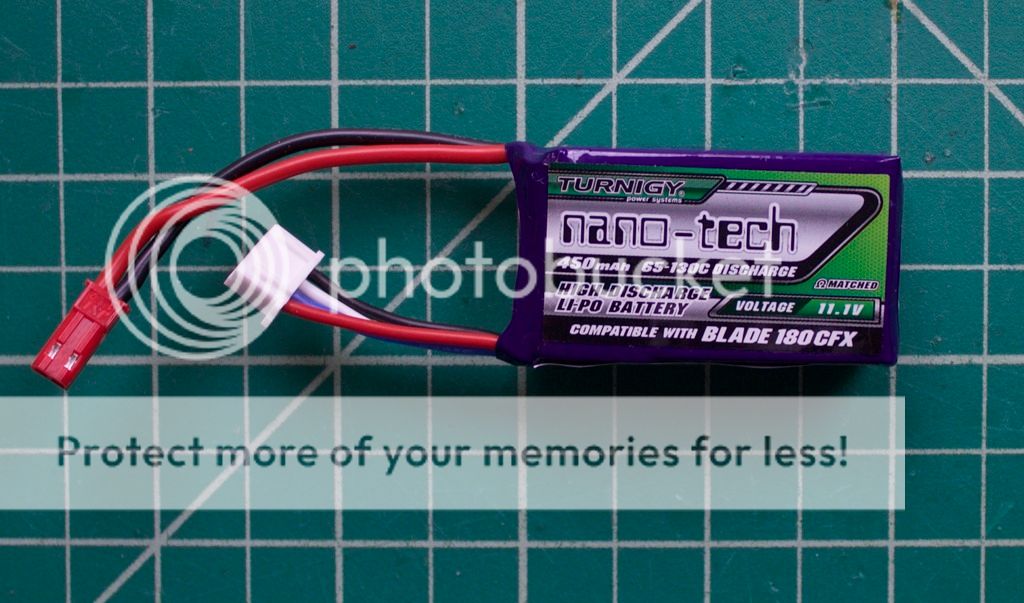

battery: nano-tech 3S 450 mAh 65C

FPV camera: Lumenier SM-600
FPV TX: Hawkeye 5.8 GHz 200 mW
FPV antenna: ImmersionRC 5.8 GHz SpiroNET

motor to motor distance: 122 mm
all up weight: 145 g
​

Current specs:

MK 14: RotorX Atom

motors: RotorX 1104
ESCs: DYS SN20a (SimonK)
FC: RMRC Dodo (Cleanflight)
RX: FrSky X4R-SB
telemetry: FrSky FBVS-01
props: RotorX 3020

battery: nano-tech 3S 450 mAh 65C

FPV camera: Lumenier SM-600
FPV TX: Hawkeye 5.8 GHz 200 mW
FPV antenna: VAS 5.8 GHz BlueBeam Ultra

motor to motor distance: 122 mm
all up weight: 141 g
​



[C0d3M0nk3y]

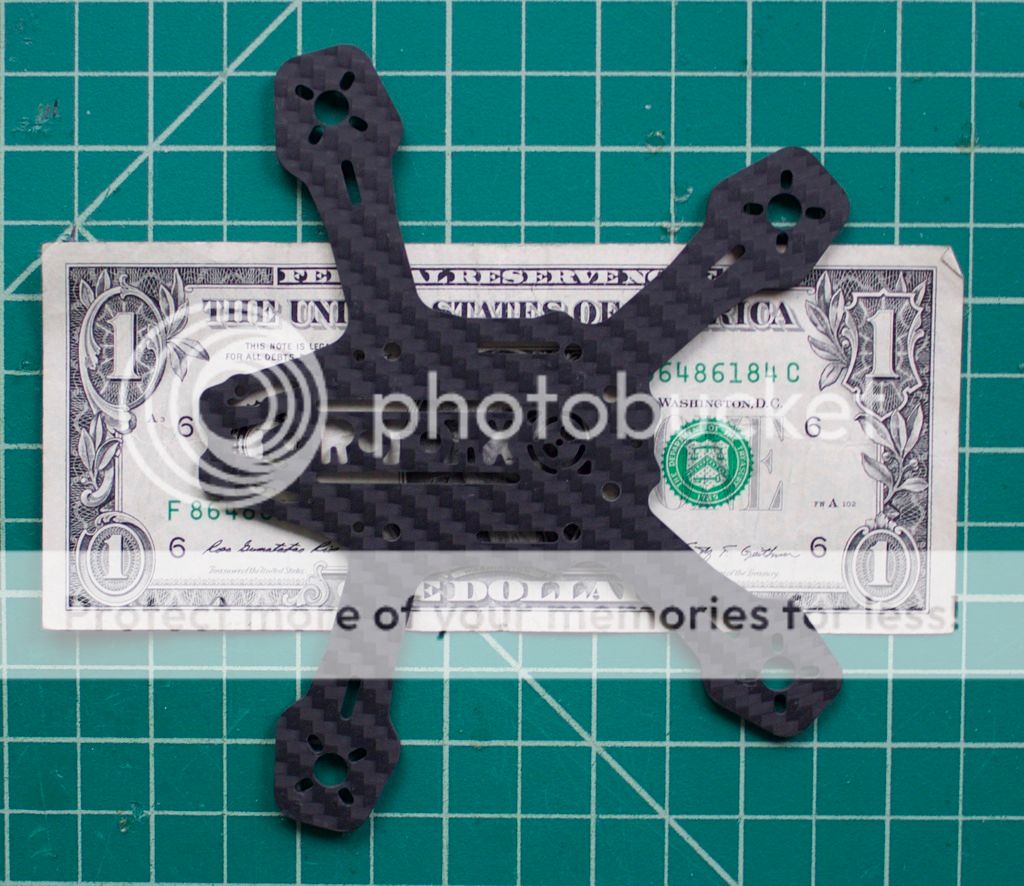

I've seen photos, but I'm still surprised at how tiny this thing is.



[narcolepticltd]

Needs 2206/2100kv cobras

This looks like a lot of fun btw... I'm seeing a lot of the 180 frames gaining popularity in the local FPV group here in Atlanta, but nothing this small. Armattan makes quality frames as well.



[Spastickitten]

6 cell?



[C0d3M0nk3y]

Needs 2206/2100kv cobras

Are these close enough?



The packaging says they're 4000 KV.

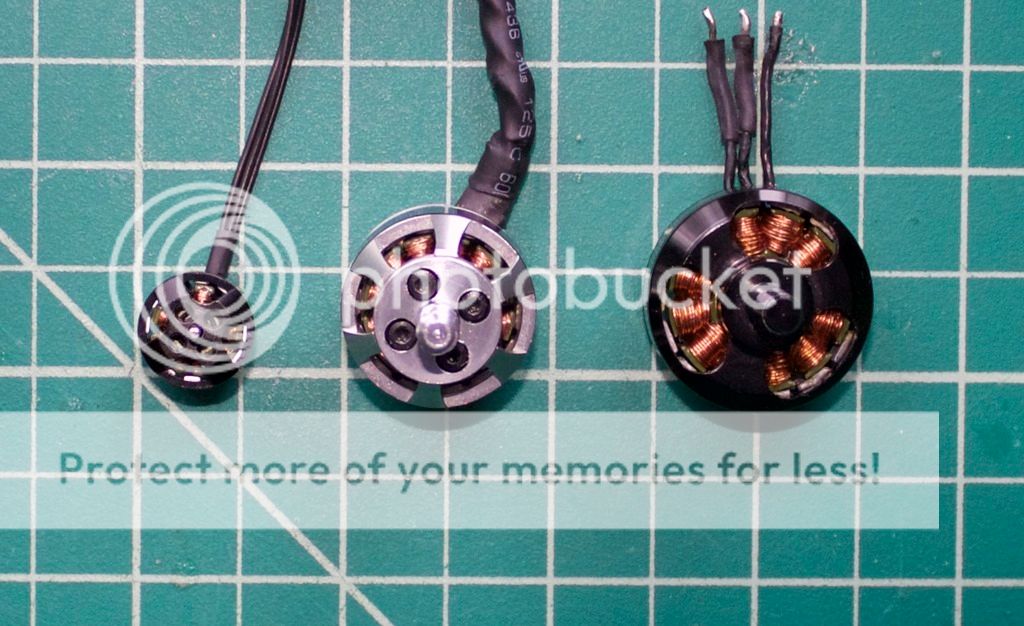

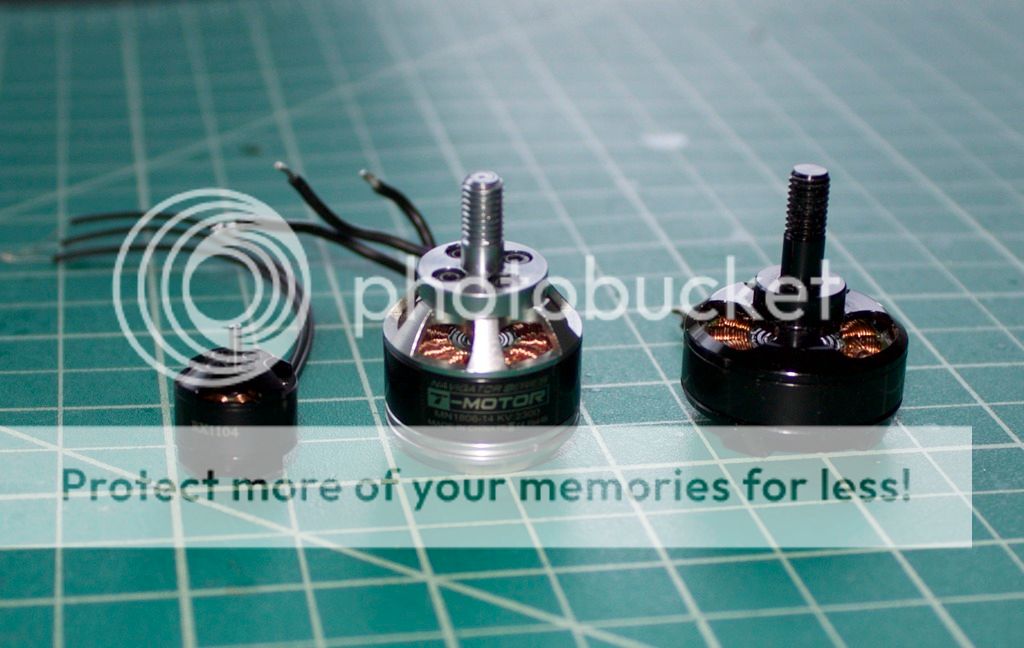

Here's one next to an 1806 and a 2204 for comparison:



[C0d3M0nk3y]

Armattan makes quality frames as well.

I don't think Armattan is actually making them. There are 3 or 4 sites I've seen selling these.



[C0d3M0nk3y]

6 cell?

Not quite.



[C0d3M0nk3y]

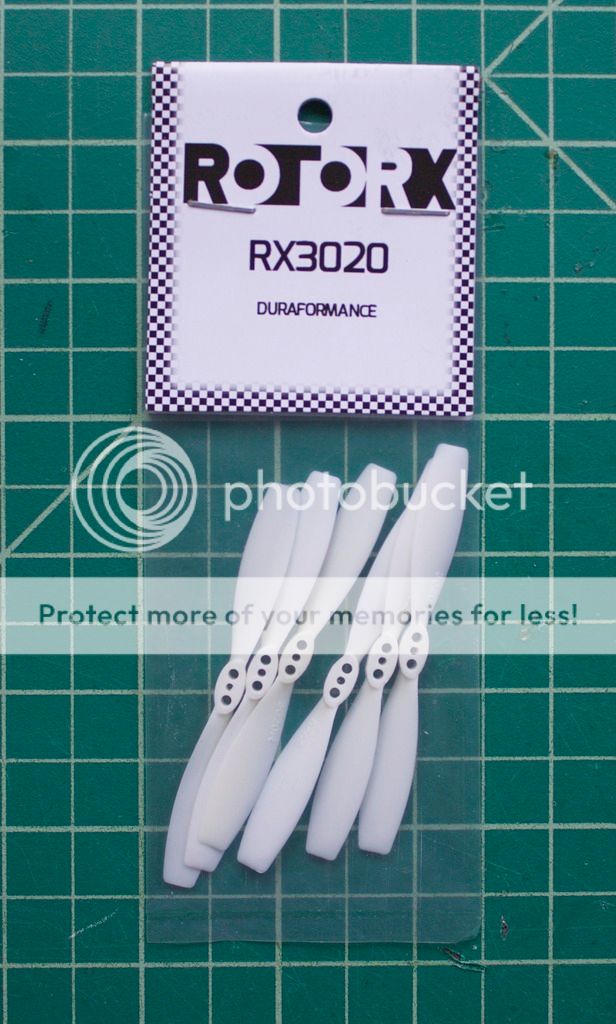

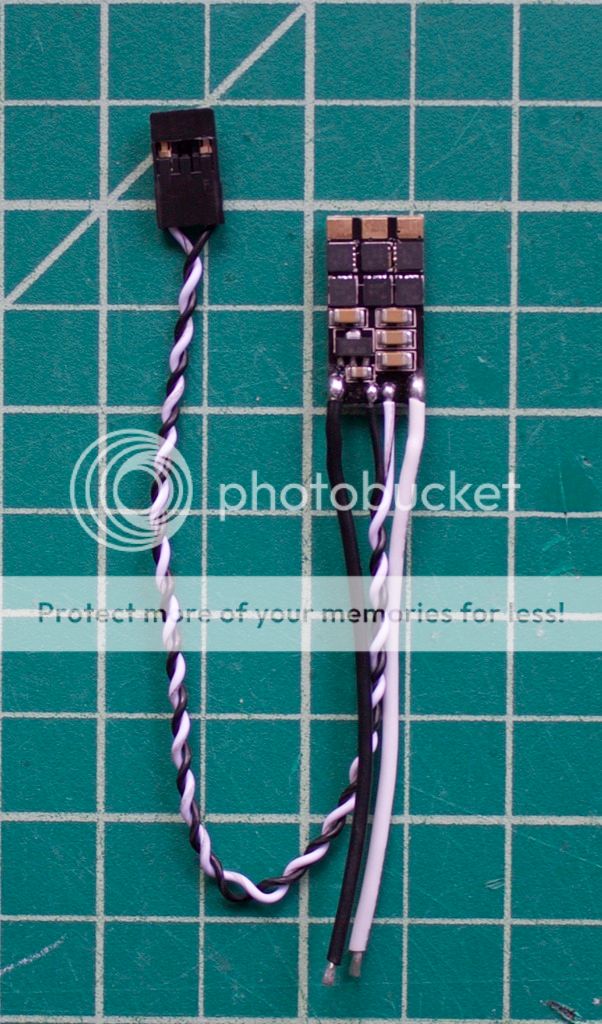

I'll be using RotorX 3020 props and SN20a ESCs. I'll probably run SimonK on the ESCs because some of the RotorX guys have had trouble with BLHeli with these motors.



[narcolepticltd]

those motors are just the right size for me to stick up my nose... I'm not responsible or mature enough for this particular copter



[mpbiv]

Sweet!!!!

I've been wanting to build something small like this for months, but I made the mistake of ordering some DYS 1306 2300kv motors when I probably should have ordered the 3100kv motors.

What made you opt for the 1104 motors for this build?



[C0d3M0nk3y]

Sweet!!!!

Thanks!

What made you opt for the 1104 motors for this build?

I'm going to try to keep it as light as I can.



[Cyberdactyl]

I could see this size racing inside an old beatup racquetball court.



[jhitesma]

And I thought 1806 motors were small. I'm looking forward to seeing your progress!



[C0d3M0nk3y]

I could see this size racing inside an old beatup racquetball court.

Oooh... something like that would be pretty rad.



[C0d3M0nk3y]

And I thought 1806 motors were small. I'm looking forward to seeing your progress!

Thanks. This build is definitely going to be a challenge for me. I've cut weight on some things on my other builds, but I've never really went after every possible gram.



[C0d3M0nk3y]

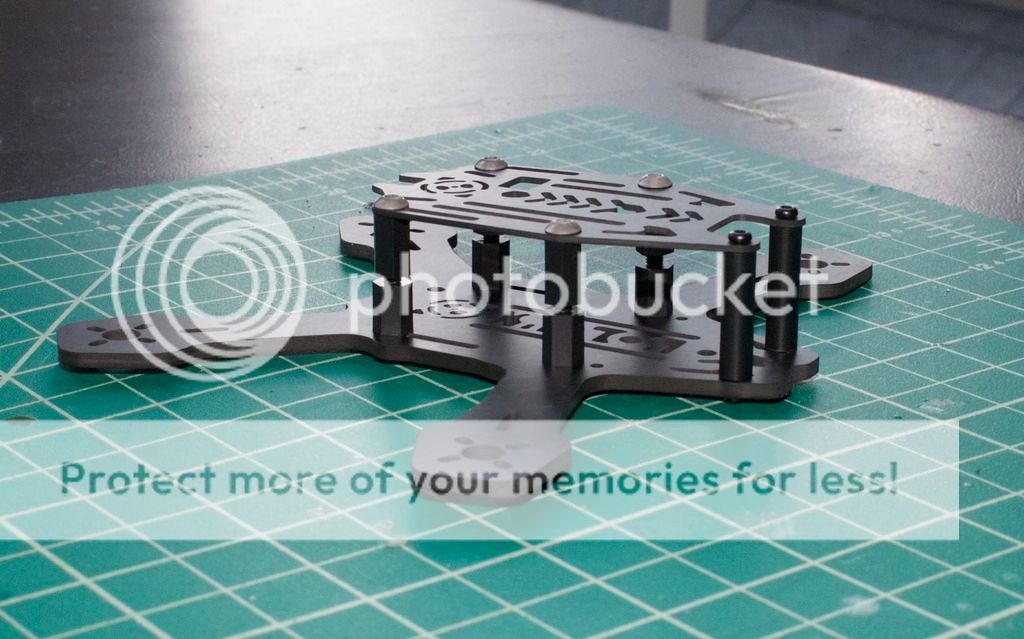

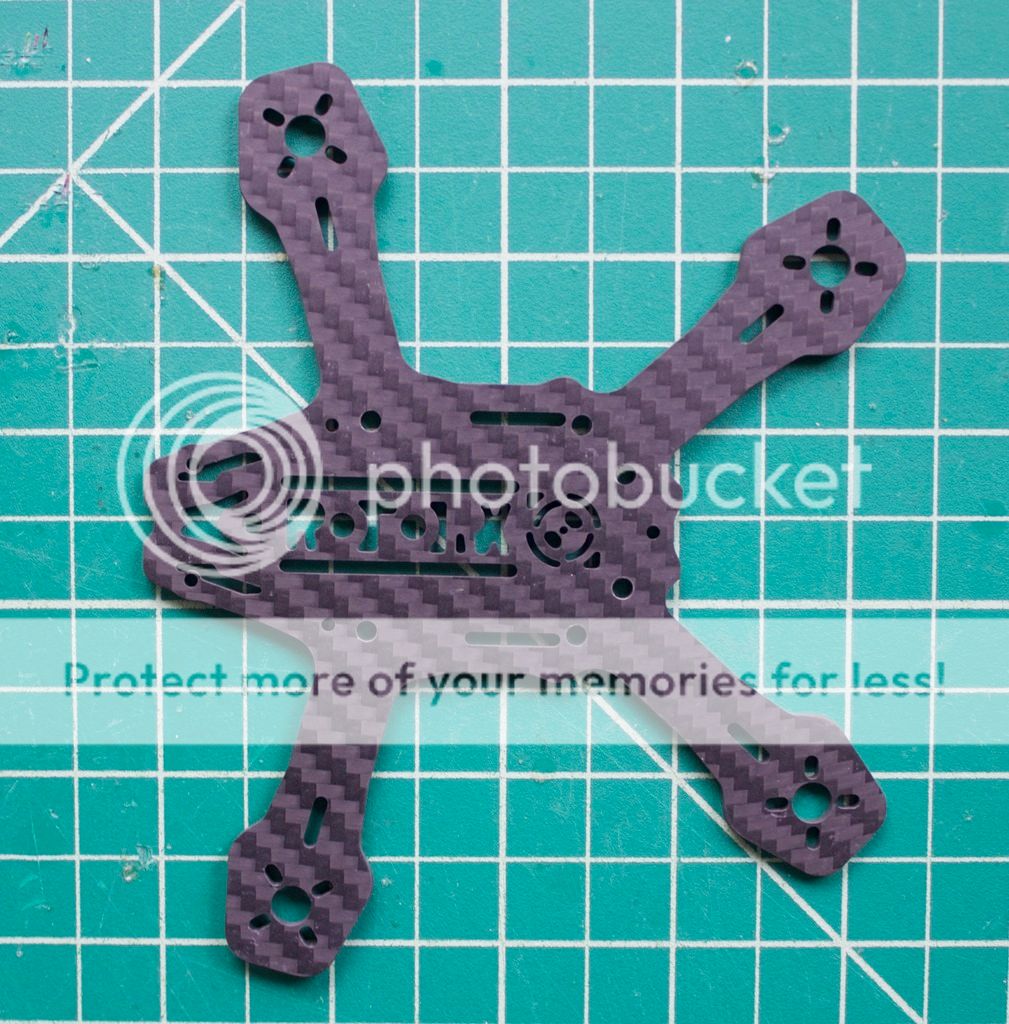

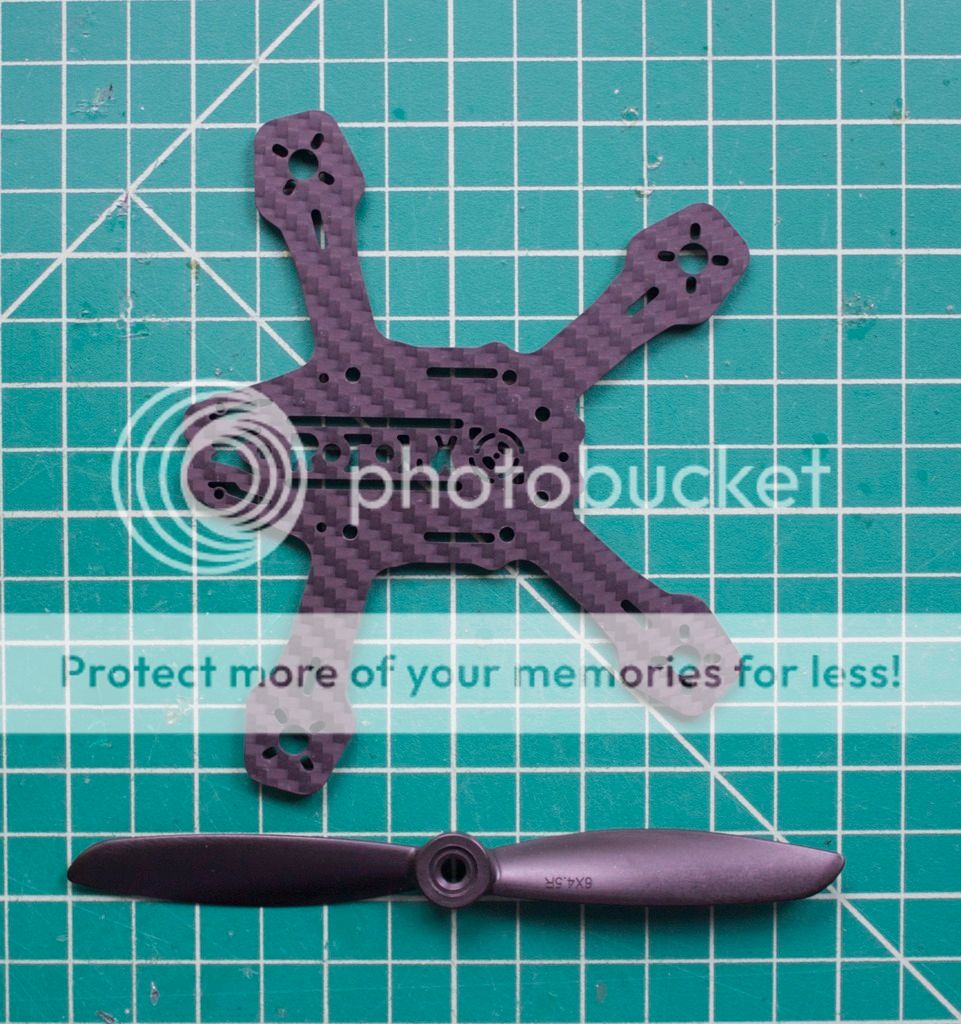

Test fit of the hardware:



The frame comes with nylon bolts for the standoffs, but I replaced them with some aluminum bolts I had. They didn't add any measurable amount of weight (by my scale anyway).

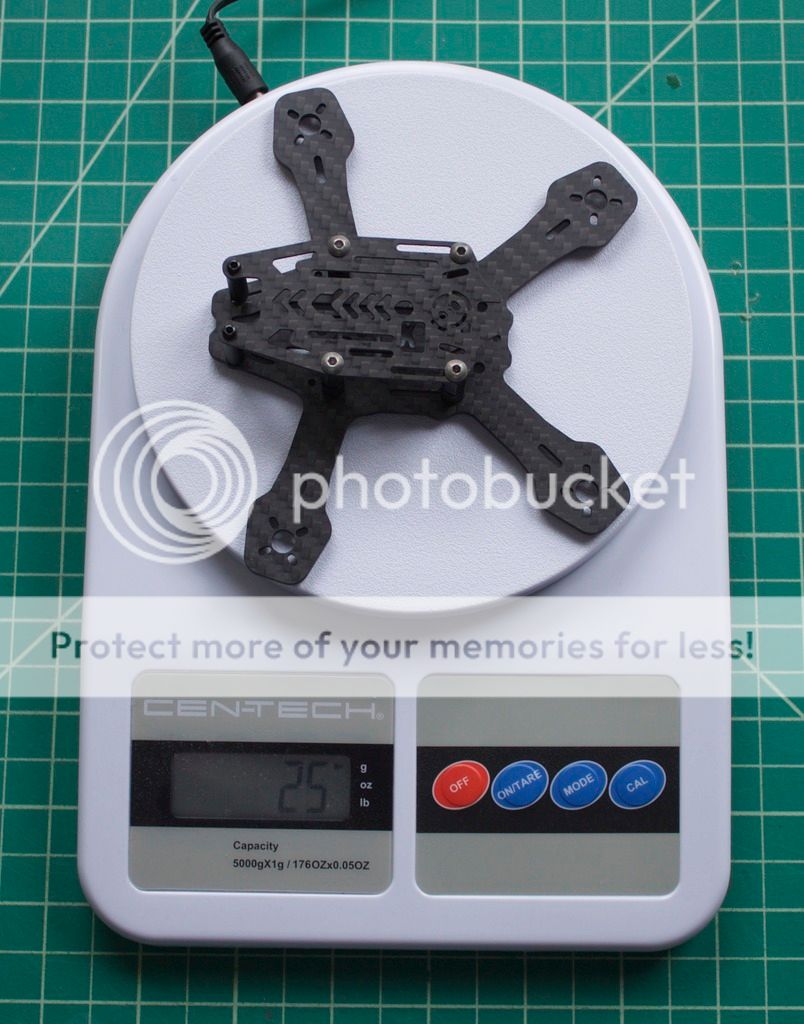

Speaking of weight, the bare frame is 25 g.



[Spastickitten]

Will it even hold a gopro?



[C0d3M0nk3y]

Will it even hold a gopro?

No, there's no way it will lift a GoPro.



[narcolepticltd]

No, there's no way it will lift a GoPro.

time to buy a Session... that way you can film every dust bunny on top of the book case as you zoom through just under the ceiling.



[Spastickitten]

don't hit them, you might break a prop!
