Crashed into the ground 3 feet ahead, snapped the nose and did damage to the fuse. (This plane weighed a ton)



[quorneng]

Airfoils?
Google the Clarke Y section. You won't go too far wrong simply copying it. If high speed is more important that nice manners just make it thinner but making a "thin" wing strong & stiff enough can be a challenge!



[Houndpup Rc]

Crashed into the ground 3 feet ahead, snapped the nose and did damage to the fuse. (This plane weighed a ton)

Ah, too bad!



[Mr Man]

I got bored today, so I started designing a F8F Bearcat, I would've used the opportunity to make a tutorial on designing planes, but I'm using someone else's computer, and can't get screencast to work. (Pics later)



[Mr Man]

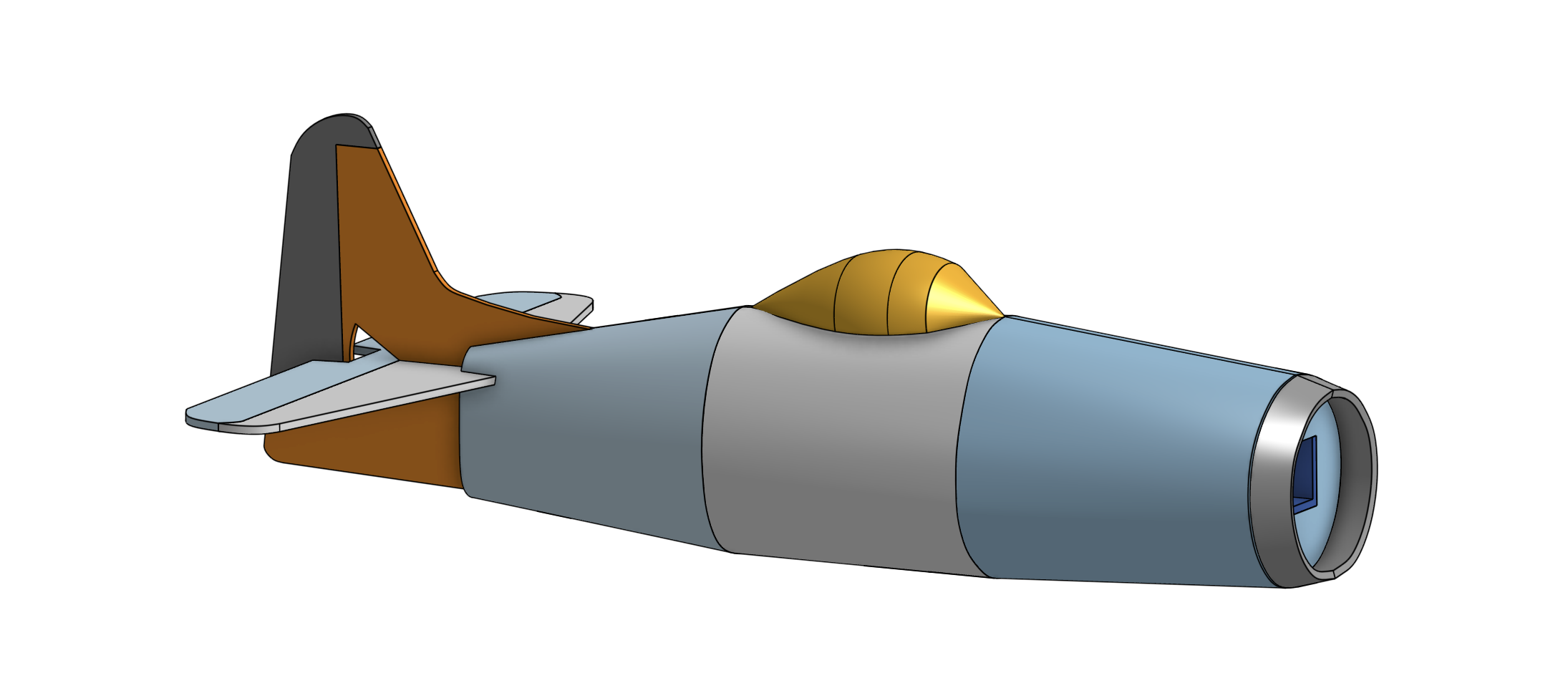

Here's the current progress.



[Mr Man]

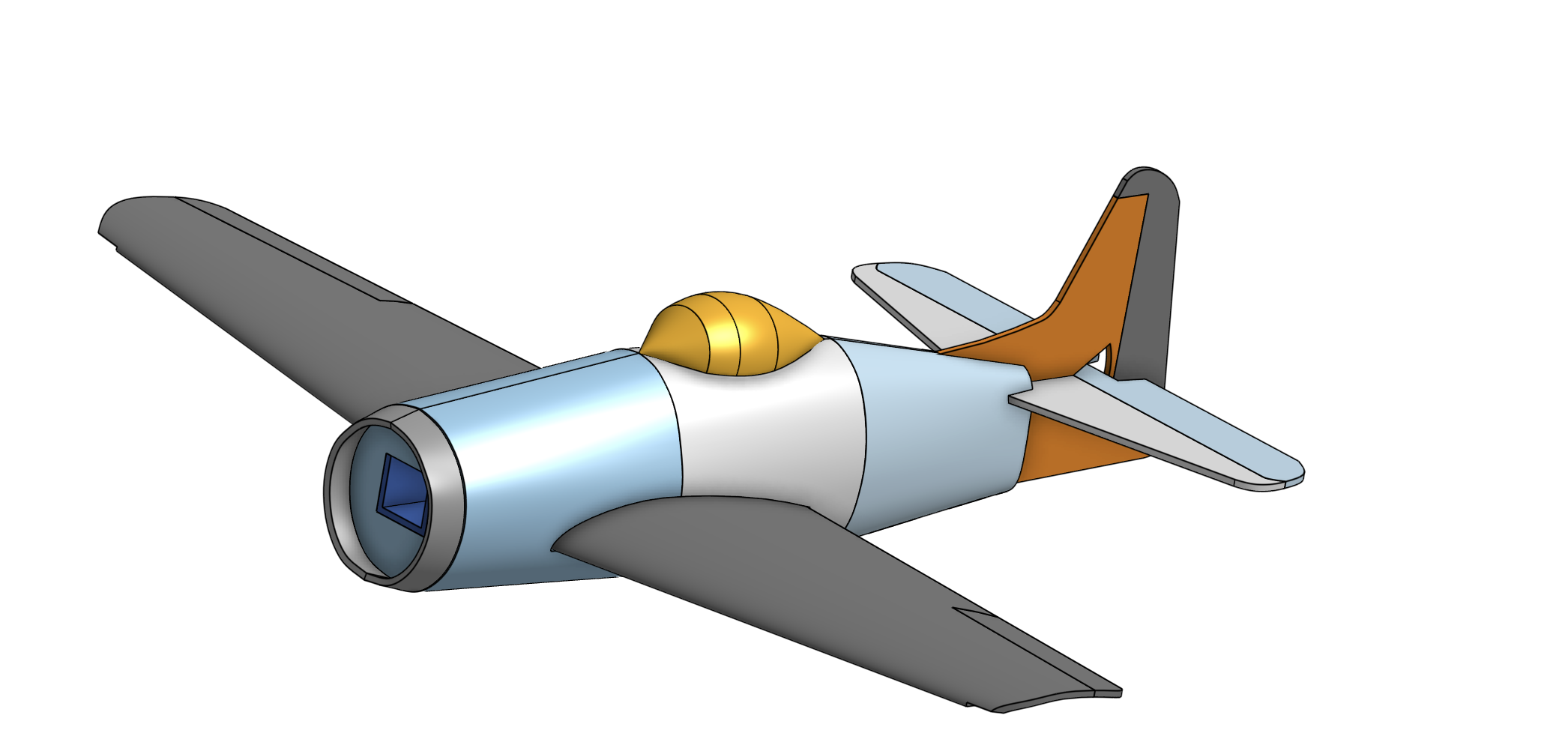

Making good progress! Still gotta make the wing spar, and a couple other minor things.



[Mr Man]

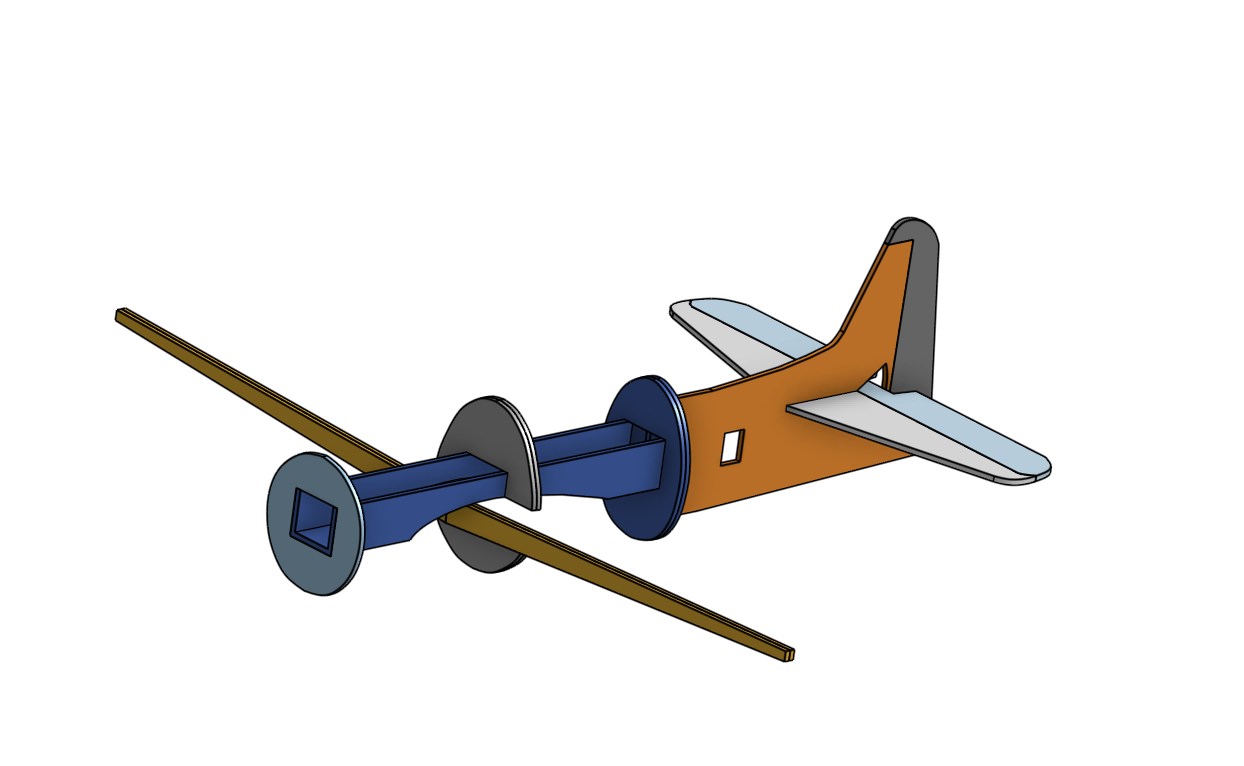

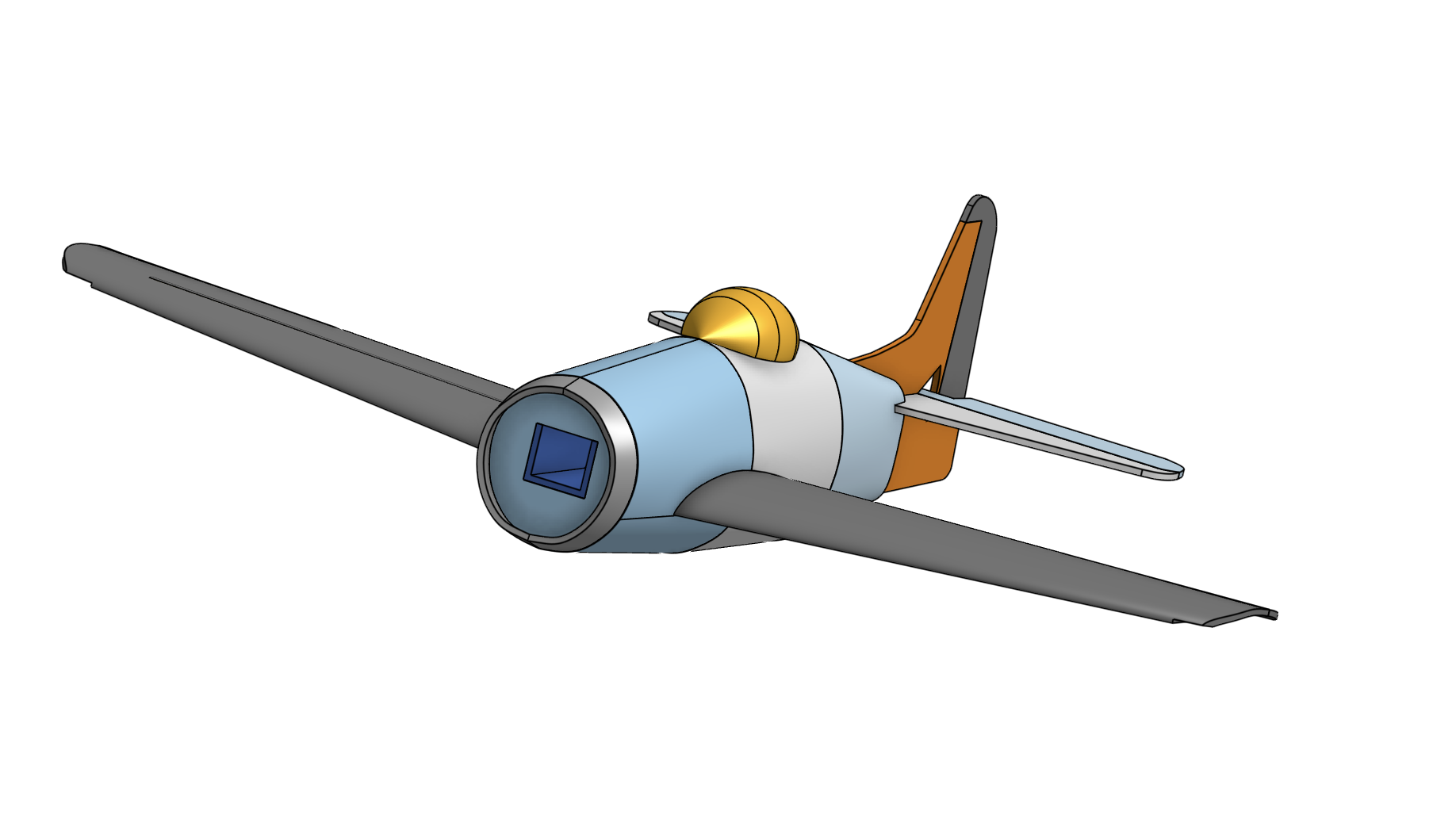

I think I'm about done! Here's how it looks, plus a view at the internals. Deep down, it's pretty simple!



[Mr Man]

Only 23 pieces!



[dberg97]

I think I'm about done! Here's how it looks, plus a view at the internals. Deep down, it's pretty simple!

That's fine work! I appreciate the simplicity.

Only 23 pieces!



[dberg97]

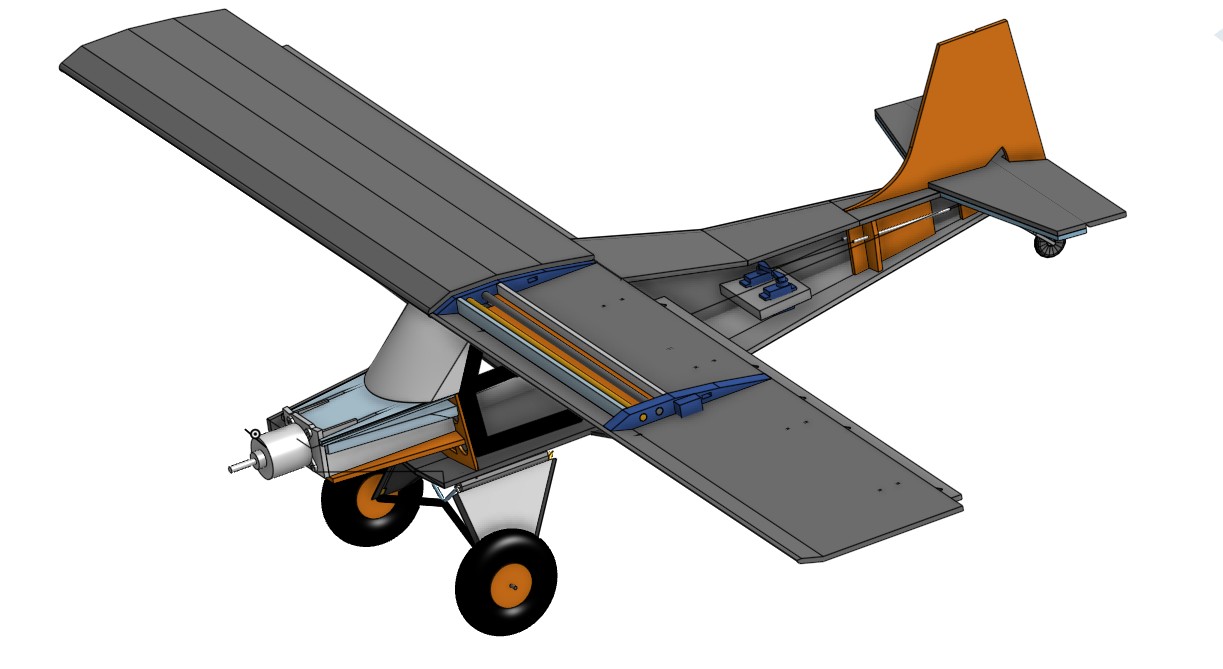

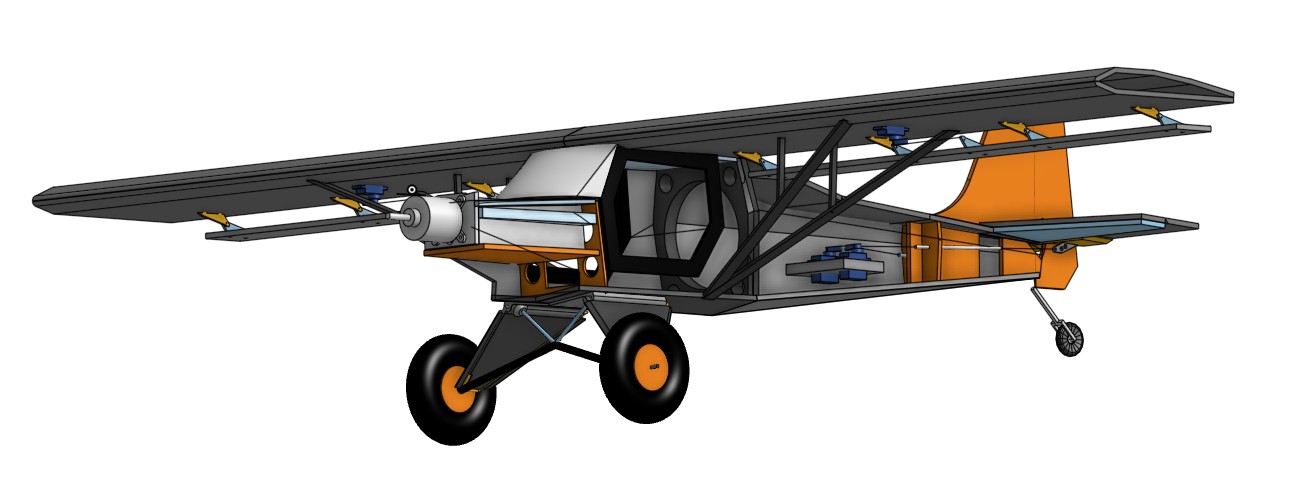

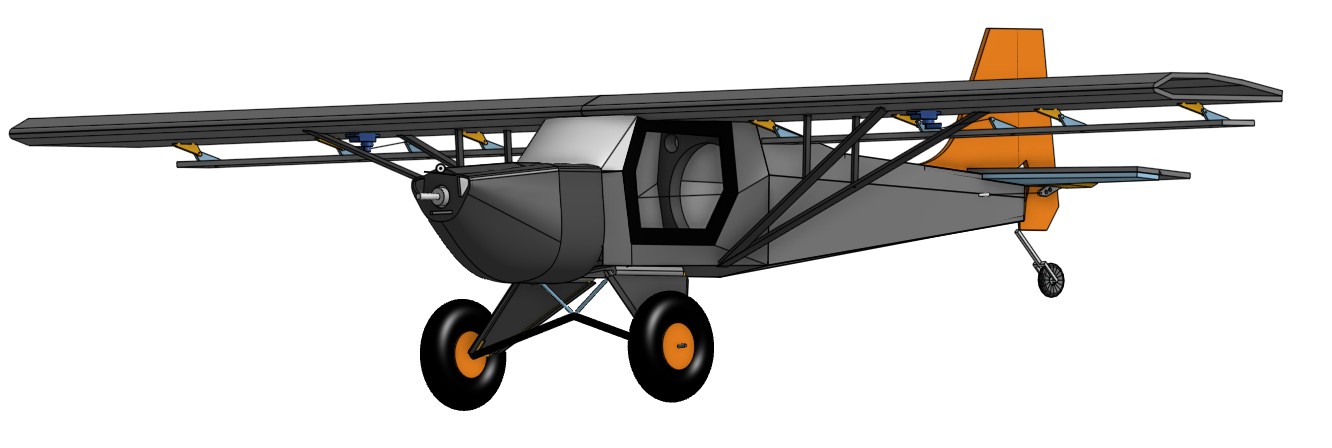

Kid wants a Kitfox. Here's my take.



[Mr Man]

Kid wants a Kitfox. Here's my take. View attachment 253566

That looks awesome!



[Mr Man]

That's fine work! I appreciate the simplicity.

Thank you! It also takes less time to design this way.



[Houndpup Rc]

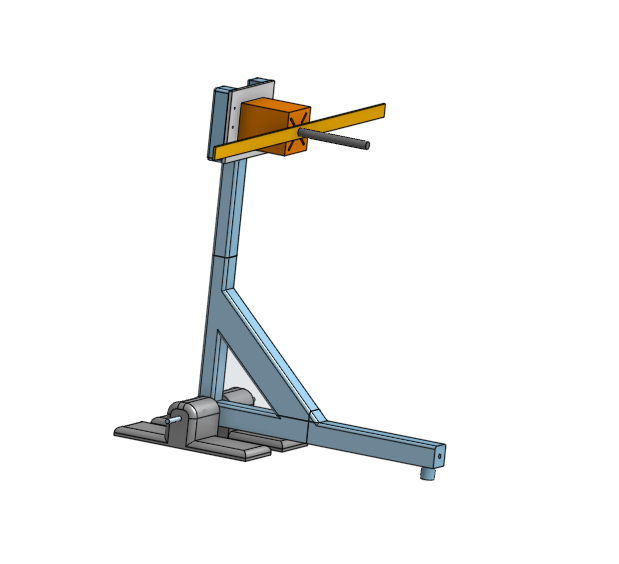

Designed up a 3D printable Thrust stand so I can do a thrust test with my 5065 400kv motor (I just got a rc Amp/watt/volt meter recently!)



[Houndpup Rc]

Yes I know..The motor and prop are sooo original! JK



[Mr Man]

Yes I know..The motor and prop are sooo original! JK

🤣🤣🤣



[Houndpup Rc]

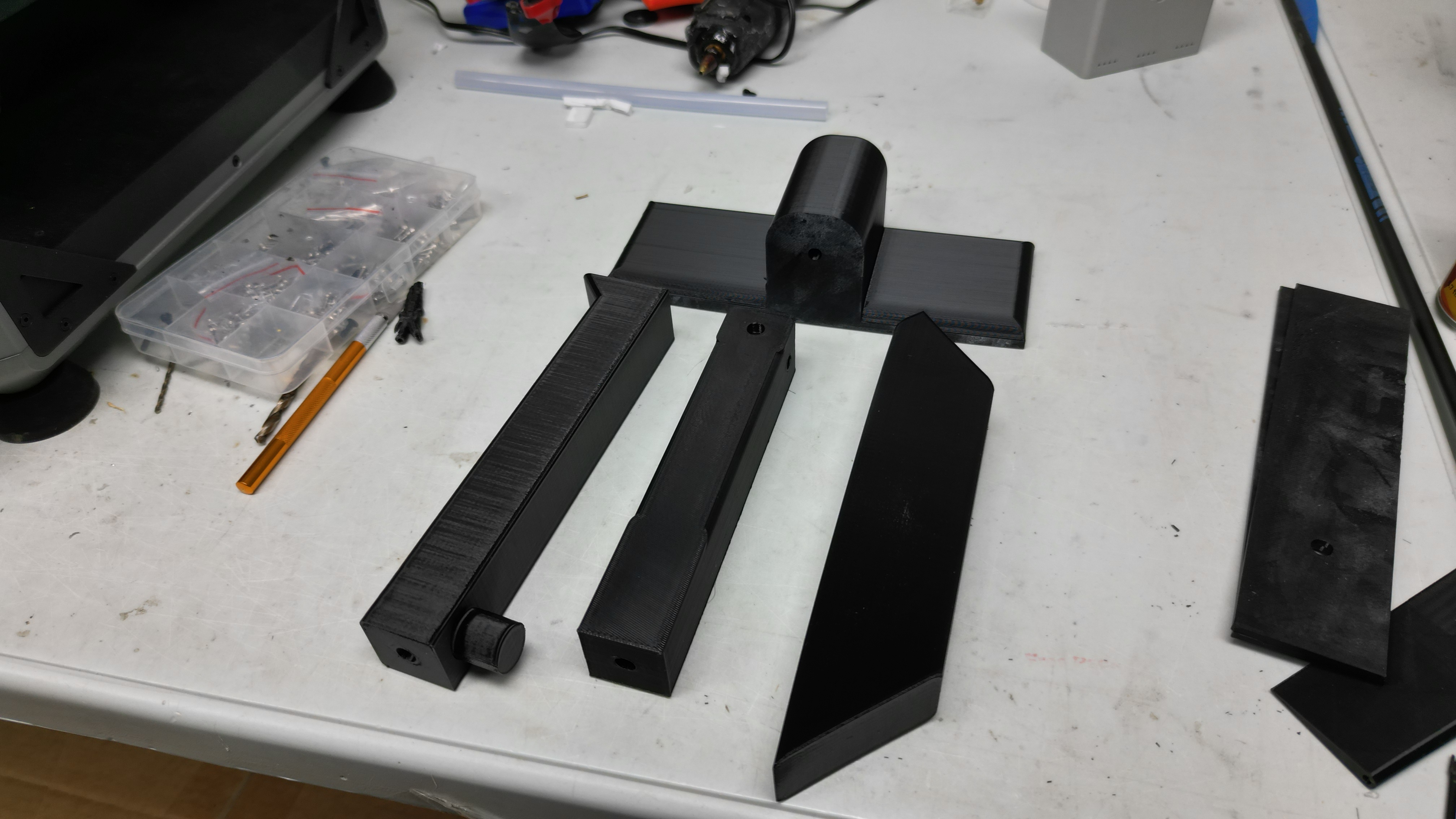

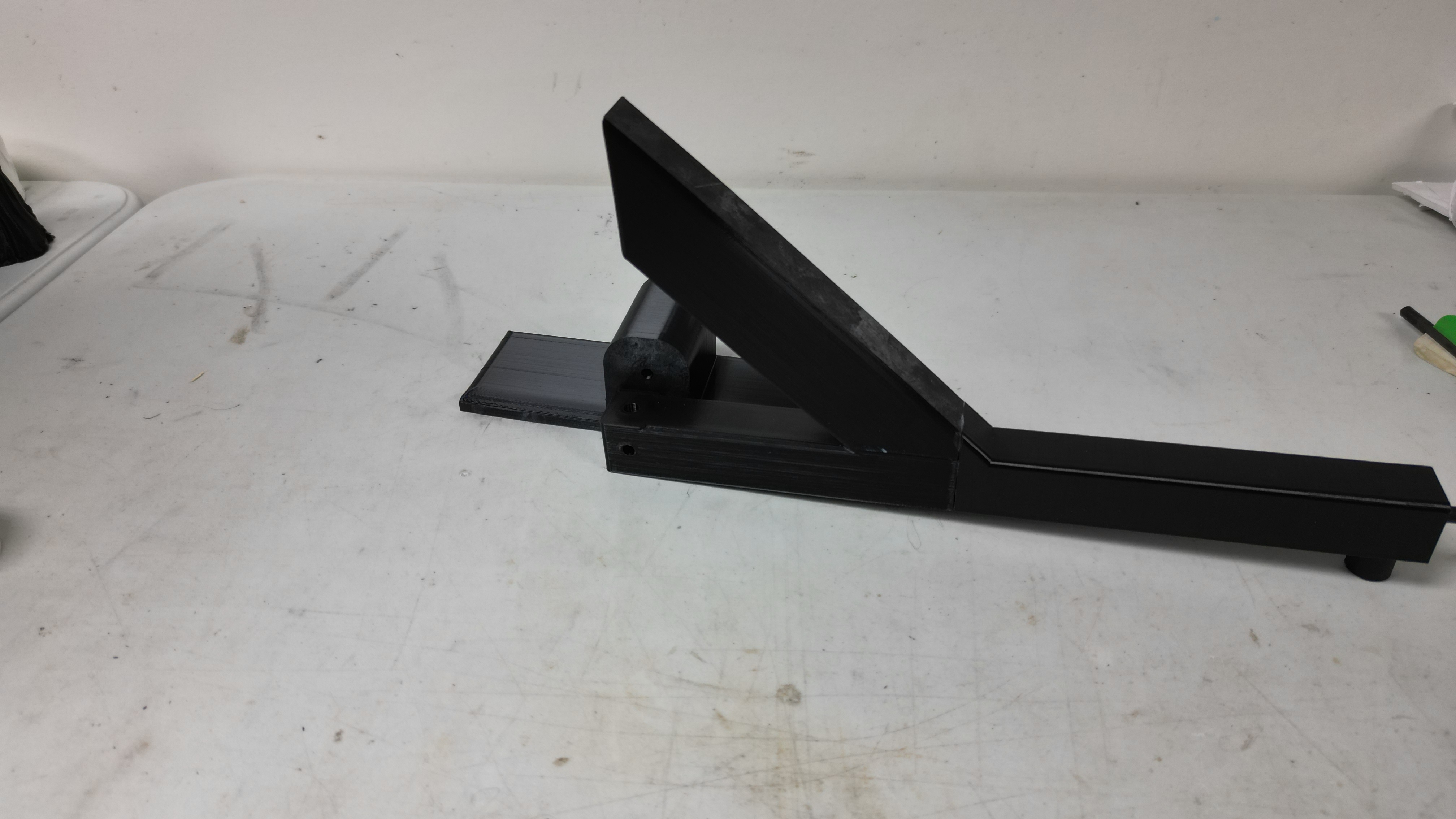

Got the first half of the proto type printed out! (Just waiting for some more PETG to come in today) Man! This thing is STRONG!)



[Mr Man]

Nice!



[Jo's squadron]

Got the first half of the proto type printed out! (Just waiting for some more PETG to come in today) Man! This thing is STRONG!)
View attachment 254346
View attachment 254347

What 3D printer do you have?



[Jo's squadron]

Slick 580 33in wingspan.



[Houndpup Rc]

What 3D printer do you have?

The Creality K1 SE (I was just going to get the Creality 3 v3 SE but this was only like $20 because its on sale here: https://amzn.to/3WPswHF)
