@Houndpup Rc can you please suggest how to CAD model this kind of foamboard airplanes? what module in fusion360 should we use? can you suggest a good tutorial where we can find how to model this kind of foldable foamboard rc airplanes?
Yup, I’m working on an Onshape tutorial series…
but @Mr Man i see in this kind of foamboard jets,the surface seems to be polygonal, whereas in your tutorial the surface is round in shape. can we apply the same technique for jets?it would be really helpful if you could also show for polygonal faced foamboard parts.
Yup, pretty much the same technique. (I’ve done it with my Radjet)
Good idea 😉 👍
Red line means cut 50% through the foam, blue line stands for crease, though I still cut partway. And green stand s for reference/optional, normally reference though.

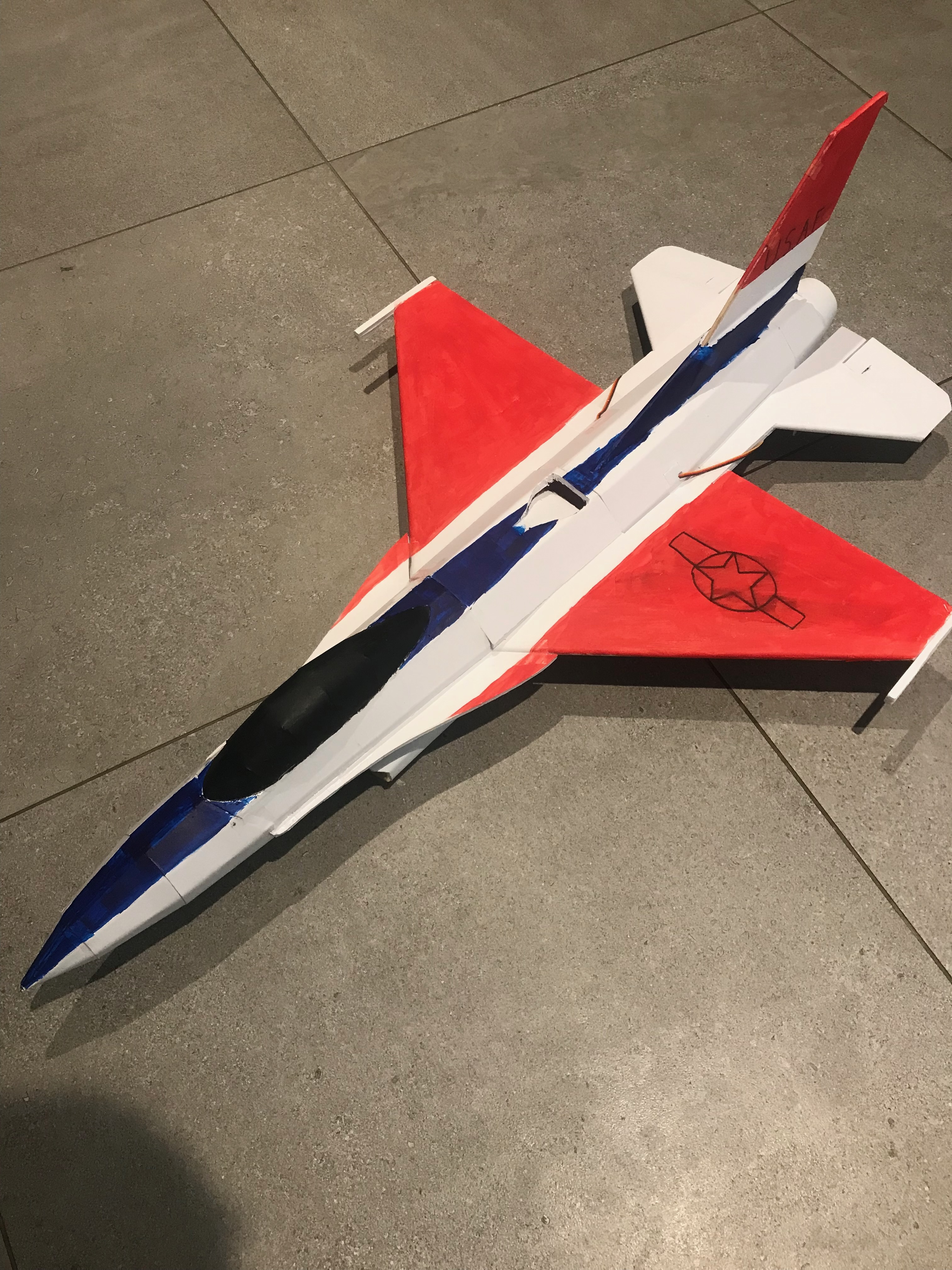

the paint I used is pretty bad so its not a clean paint job, it only looks good from far
the paint I used is pretty bad so its not a clean paint job, it only looks good from far
BTW its not spray paint which dose not help make it look better.the paint I used is pretty bad so its not a clean paint job, it only looks good from far
Cool!
