My hangar builds.

[leaded50]

i just wanted make a list of my builds, by mostly unique rare planes... some with plans, other sadly not. Mostly its "scalemodels" of prototypes, design proposals or low production aircrafts.
Some is later "dissolved" by crashes, others given away, and some just hangs around .

Aztex 30´s racer : - a remodelling of the AP Argus.


Bisnovat 5 Rocketplane: EDF version
either fully wrong propulsion, or "something ells" it didnt get into flight nicely. Demolished.

Biloxi Trainer: (plans in thread)
Chrashed , and to many repairs to keep it,

Republic RC-3 Seabee


X - plane, Fun flyer: (plans in thread)



Beechcraft D17S Staggerwing:
Wrecked.

Ikarus 452-M ( EDF jet )
Ddidnt fly nice with the 55mm EDF, Wrecked.

Mikoyan-Gurevich I-250 (Mig - 13) Prop & EDF multipower. (plans in thread)


Payen Mitsubishi PA400
Still some construction on landinggear to project.

Texaco "Mystery Ship"


Yokosuka D4Y-2s


Arsenal Delanne 20T


Moskalev RM 1 (SAM 29) EDF , 1934 delta jet project
Also seems 50mm EDF dont give enough push.

Beriev Be-4 Flying Boat


Lockheed L-133 Starjet


Moynet 360 Jupiter (plans in thread)
Wrecked after fire in air.

Chaika 050 Flying Boat/ WIG



[leaded50]

Cartoooooony P-51 (plans in thread)
unstabile in flight, and total wrecked

Sea Stryder
did fly, but very easy "go down" under water, because the center of wing LE dig in, even if chnged profile. demolished.

Gu VRD, - Russian Warbird Prototype with EDF!


Bartini jet-engined Seaplane fighter proposal of the 50´s
not a good build. great as boat... but not good surfaces for air? Demolished

Martin B-26 Marauder, Warbird light bomber.
dont really understand why, but not a nice flyer. Demolished at purpose.

Blackburn B.44
Still minor things to perhaps change. The lift/lowering of the seahull doesnt happend as wanted, and the outboard at wing floats, are too tiny.

Celera 500L -laminar flow bullet shaped plane.
Should get a "propsaver" it strikes at landing/take off. Adjustemtn of lower rear dorsalfin needed.


Peugeot HX-3D
Plans: https://forum.flitetest.com/index.php?threads/hx-3d.66436/


Peugot HX 1 Jetliner design. -dual 50mm EDF.


Fairey Barracuda (no thread)
wrecked
reworked as pusher of parts from this and the Maurader:

short time after, this was total wreck after "greeting mother earth in a inproper way"...



[leaded50]

De Havilland DH.103 Hornet


SAAB J27 (warbird prototype)


Supermarine Spitfire 2


I.A.R 80 - (plans in thread)


Experimental EDF Flying Boat Sailplane
wrecked. 50mm EDf was a bit too small for this one. Smaller size would been better, great gliding, and on water.

Piper Jet (PA47)


Cartoon fatty P-38
Chrashed, with fuselage and wing into parts. Its buildt up with more or less fragile internals, thats hard to just fix. Perhaps build new later on. Flew quite nice.


RK - 800 ("tandem" sliding wing areal fighter)
Atill the changing wingarea construction under work. A few different approaches havent given quite what wanted.


Grokhovsky G-38


Sukhoi Su 80


Supermarine High Performance Day Bomber
Plans: https://forum.flitetest.com/index.php?threads/supermarine-high-performance-day-bomber.66985/
Folding prop ruined, and wrecks frontpart. Fixed, but will not use folding prop later.

Curtiss CW21 Demon Mini v.1
Plans: https://forum.flitetest.com/index.php?threads/curtiss-cw21-demon-mini.67130/
Chrashed many times, glued together, and still ok to fly.



[leaded50]

Yokosuka 12-Shi Special Flying Boat (H7Y)
Plans: https://forum.flitetest.com/index.p...-shi-special-flying-boat-h7y-by-leaded50.224/
have had problem with water coming into hatch/canopy by stopping from speed on water, fixed now.

Bartini T-200 military/passenger transport airplane


Pegna P.c.1 - 1921 Schneider Cup Racer
Plans: https://forum.flitetest.com/index.p...cup-racer-ftfc21-seaplane-design-build.67437/
been on water at speed tests, accidently take off by a water test.

McDonnell XP-67 "Moonbat"


Beriev Be - 103 (Snipe) amphibious seaplane, build in foamed pvc plastic.
watertests completed.

the "4"
a "STOL" capable trainer , in air, crashed, and up again many times.

The Privateer Amphibian, catamaran hulled seaplane
watertests done. First test jhad a weaker prop, and shattered the prop "ring-duct" and needed new rebuildt.

Diamond D-42 Twin Star


Icarus Aerospace TAV -Wasp / Branta - Canadian Tactical Air Vechile multirole platform, with changes of wing extensions.
Plans: https://forum.flitetest.com/index.php?threads/icarus-aerospace-tav-wasp-branta.68191/


Virgin Galactic VSS Unity SpaceShipTwo - EDF 70mm
some trouble/rework to get the boomwings to function as should.

Ca-15 Kangaroo, Aussie Mega-"Mustang"


Sesquiplane Fighter, Nieuport 31
Plans: https://forum.flitetest.com/index.php?threads/nieuport-31-sesquiplane-fighter.68358/
been in air at test. Easy take-off

Northrop T38 Talon. NASA version EDF Jet
Stabilizer surfaces get twisted when had elevator full surface movement. Reworked to stab with elevator surfaces.

Nemeth Parasol/Umbrellaplane - circular wing plane
Plans:
Completed & ready for testings.



[leaded50]

Thread who shows more on how i start on making my builds, and further on. Some tips& tricks are shared in div buildthreads too.

https://forum.flitetest.com/index.php?threads/my-way-of-scratchbuilding-from-ground-up.65375/



[leaded50]

Avro, first plane with locked cabin for pilot too

Dayton Wright RB-1 racer .( wingattack angle at LE)

FaradAir Beha (EDF)

Douglas 312 (pusher)

Bolkhovitnov (Sparka) here 1. version with single motor, later it came 2 in line and contraprop)

Grushin GR1. Ruined by attack of the Germans under the war, when was on a train to Moscow for control/testing.

Zlin XIII, Yogoslavian fighter prototype.

Hydrojet (EDF seaplane)

Fiat CR42 Falco

Fiat G.55 Centauro

Twinboom sportplane (pusher)



[leaded50]

Arrow 985-20 (ideas of Boeing for a small fighter (EDF)

Borokov Florov D was an experimental fighter aircraft designed in the USSR in 1940. Mixed power by a piston engine driving the pusher propeller, gaining enough speed to get the the ramjets in the tailbooms to "kick" speed.


SAAB J27. Twinboom pusher.



[Off-topic jes]

I don’t think you’re ever gonna be bored or have ever been bored those are some of the strangest best plans I’ve ever seen, good job!



[leaded50]

I don’t think you’re ever gonna be bored or have ever been bored those are some of the strangest best plans I’ve ever seen, good job!

Thanks @Off-topic jes , more is coming.....



[Kartman24]

Love the Yokosuka D4Y, Would that fly off grass ok on the floats?



[leaded50]

Love the Yokosuka D4Y, Would that fly off grass ok on the floats?

Like the planetype my self! . No it cant take off on grass, tips a bit forward, and prop easy get too ground. But its just a couple seconds, and the floats are away, and electric landing gear can be used without any grassproblem



[Kartman24]

I have an earlier Yokosuka type i am going to make, on floats as well, i am thinking of putting some thin wheels into the frontvof the floats so it won't tip forward.



[Jade_Monkey07]

The pa400 and the delanne 20t are two I have wanted to build for a while. Love your colors on both, great choice on the bronze/copper look.



[Designer2010FT]

I really like the Moskalyev RM1.

Only thing I would add is to have them to the same scale (1:6 is popular) to compare. There is a nice profile model f the Moskalyev RM1here:

RM-1 Supersonic Fighter

Build a Soviet X-Plane Written by Larry Kruse Review As seen in the May 2020 issue of Model Aviation. Download free plans!

www.modelaviation.com

Any videos or video channel?

Probably off-topic but there are some unusual designs which you could try to build and document or video.

I will post them here. Here is one.

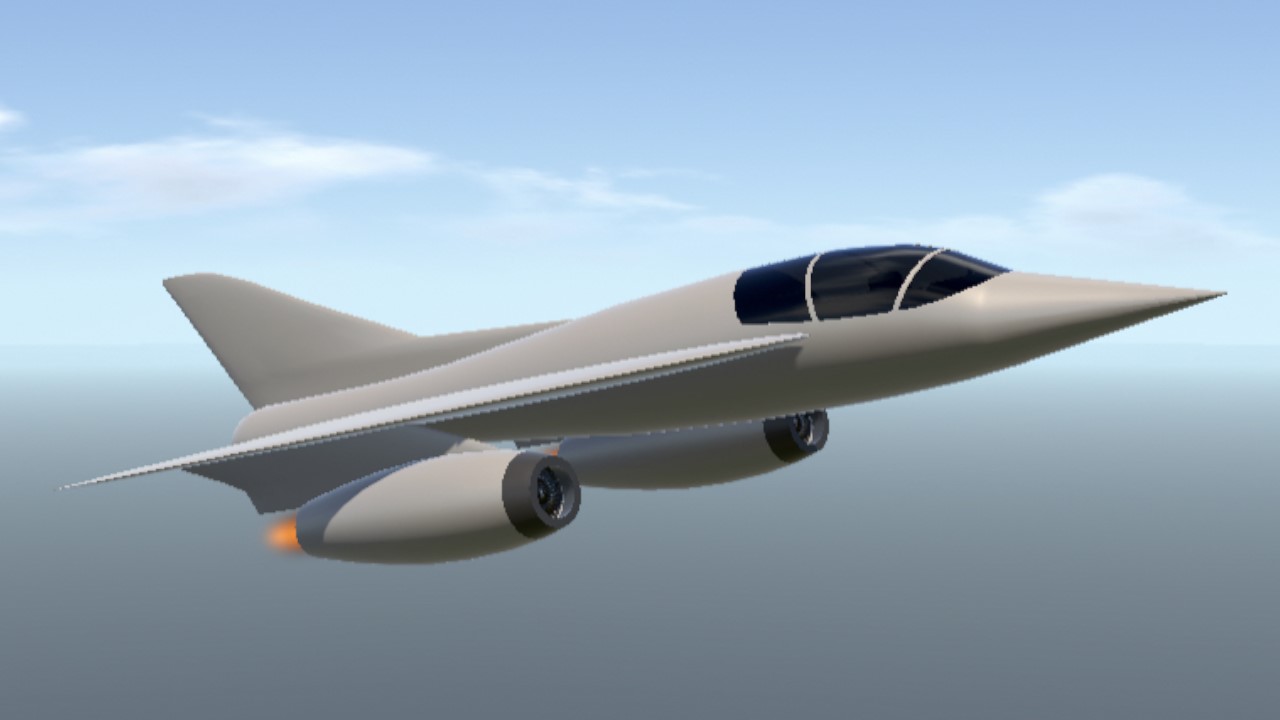

SimplePlanes | FMA I.Ae. 48

PC and mobile game about building airplanes.

www.simpleplanes.com

Another one:

Morane-Saulnier MS1000

Salut à tous, Je ne poste pas bien souvent par ici, m'étant plutot inscrit pour admirer les belles choses dont nous gratifient chaque jours les éminents membre

aviation-illustree.forumactif.com

If you are interested I could send you a list, or PM or post the list here.

A tribute to the incredible aircraft designers of the past.



[leaded50]

Well, the I.Ae. 48 will not be easy make scalelike, because of the small diameter EDF needed vs rest of plane size. By eg using 50mm EDF´s , it will be needed approx 15 - 1700mm + length of the model, and then the two 50mm érs wouldnt give enough thrust, it will need bigger EDF´s . if wanna make the plane scale like in foamboard. Thats something who is seeing by many of the jetplanes.... scale like they are with too small jetsizes/intakes, vs the planesize to fit using by edf´s. If dont care about the scale likeness, or maked very very light , using .eg. other materials than foamboards, or as just a 3D version.... it can be done, but not scalelike. (or close enough adjusted, that not seen the wrong sizes easy)

The Morane-Saulnier MS 1000 design proposal, most everybody plans it from the intermediate design, not the final one , but yes , that plane is possible make as a EDF version. Had info/drawings around it stored in some years. But the modelpicture here in silver is also not the finished design. ( versions in the picture under)

I have a lot of designs stored at my computer, some weirdos, some protoypes, some just design proposals eg. (for sure approx. 100 planes or more Whatever any plane i build, it should be something special, unique with it. The history, technical in view, lines, eg.
Its more fun and give pleasure build a Lockheed Constellation scalelike, than any Boeing 747 eg.

Anyway, if wants, your free to post a list here. You never know, perhaps you found any interesting one, that ive not seen info about yet. And as i can see, your known in french language( ? ), im not.



[Designer2010FT]

It did not occur to me that the EDF diameter also needs to fit into the scale fuselage or nacelles.

I can read French but English is more or less my first language.

I will post the linked pictures of the interesting models here at a later date.



[leaded50]

It did not occur to me that the EDF diameter also needs to fit into the scale fuselage or nacelles.

I can read French but English is more or less my first language.

I will post the linked pictures of the interesting models here at a later date.

Yeah, EDF diameter can be trouble. A 30mm EFD gives approx 190-260g thrust, a 50mm gives approx. 550-700g thrust, a 70mm around 1500 - 2200g thrust. All depending on type! ( and how many blades, motor power, eg. Better ones = higher price)
.And "in my head" i want min. a 1:1 power to ensure can easy take off without need to throw it, or using bungee to do it. I want it to gain speed on a grassy track, if not, its not enough thrust for me!

If its close to scale with just 30mm EDF, than you see what total weigth should be approx. 2 such EDF, flying weight total approx 500g. when its not as easy built a plane that would be approx 1500mm long/wide to fit scaled. Perhaps even want use a battery that easy can weight 2-300g also.....
