Mighty Mini Master Series Spitfire

[Grifflyer]

I am going to start building this in the next couple days and was wondering if anyone knew what size spinner would fit best, thanks!

A 1 1/2 inch diameter spinner would work the best.



[Aviator08]

DXF files are attached. Thanks GriffFlyer for producing such a fine set of plans and allowing these dxfs to be shared. I've joined the smaller polylines to make continuous polys for cutting and removed the extraneous stuff like text. Where parts require more than one copy, I've duplicated them as required. So really nothing to do but arrange the parts as required and apply the required machining op and output to gcode. I can't wait for the weekend to get cracking on this build. Planning to print your 3D printed parts too GriffFlyer.

Thanks for posting Gremlin RC ! Laser cutting out a set now.



[Aviator08]

Done!



[Aviator08]



[Aviator08]



[Aviator08]



[Aviator08]



[Grifflyer]

View attachment 165609

Great work!!!



[Aviator08]

Great work!!!

Thanks , Nice work on the plans, very minimal trimming, everything fits like it's supposed to.

Let me know if you ever want a design laser cut once you get it all worked out. I will cut it for you.



[Grifflyer]

Thanks , Nice work on the plans, very minimal trimming, everything fits like it's supposed to.

Let me know if you ever want a design laser cut once you get it all worked out. I will cut it for you.

That's awesome!!

Thank you so much, I will keep that in mind!!!



[Cycle Pilot]

I'm planning on building this in the next day or two. How does the hatch attach to the fuselage so it doesn't fly off inflight? I don't see any skewer. Thanks.



[Grifflyer]

I'm planning on building this in the next day or two. How does the hatch attach to the fuselage so it doesn't fly off inflight? I don't see any skewer. Thanks.

I've just been using friction to hold it on, no problems to speak of yet. If you want you can always use a few magnets to make sure it's super secure.



[Cycle Pilot]

So, I finished the Spitfire tonight. It's ready for its maiden flight in the morning. Here are the specs...

1) I went with 9g servos (the 5g servos are a pain to find cheaply right now. Thanks COVID-19).
2) I added a rudder to the build.
3) Emax 2205 2600kV motor.
4) 6x3 prop for the test tomorrow but I'm going to downsize to 5x4.5 when they arrive on Monday.
5) 3S 850 LiPo.
6) 20 amp ESC for now. I'd like to upgrade to a 30 amp. Again... stock is an issue.
7) All in weight is 315 grams. That's going to go up a touch when I add the fairings at the wing root.
8) CG was right on the money with the battery tucked up front.

This was my first "complex" build and it was a ton of fun. I'm finally getting the hang of building these planes. I recently built the mini Mustang and it's one of my favorite airplanes to fly. The thing is a little rocket ship. I'll let you know how the flight goes.

I've just been using friction to hold it on, no problems to speak of yet. If you want you can always use a few magnets to make sure it's super secure.

Thanks! It fits perfectly. And thank you for designing a cool plane. One other quick question. This was my first build without a "power pack." Is ESC cooling an issue with it closed off from airflow? Just wondering.



[The Hangar]

So, I finished the Spitfire tonight. It's ready for its maiden flight in the morning. Here are the specs...

1) I went with 9g servos (the 5g servos are a pain to find cheaply right now. Thanks COVID-19).
2) I added a rudder to the build.
3) Emax 2205 2600kV motor.
4) 6x3 prop for the test tomorrow but I'm going to downsize to 5x4.5 when they arrive on Monday.
5) 3S 850 LiPo.
6) 20 amp ESC for now. I'd like to upgrade to a 30 amp. Again... stock is an issue.
7) All in weight is 315 grams. That's going to go up a touch when I add the fairings at the wing root.
8) CG was right on the money with the battery tucked up front.

This was my first "complex" build and it was a ton of fun. I'm finally getting the hang of building these planes. I recently built the mini Mustang and it's one of my favorite airplanes to fly. The thing is a little rocket ship. I'll let you know how the flight goes.



Thanks! It fits perfectly. And thank you for designing a cool plane. One other quick question. This was my first build without a "power pack." Is ESC cooling an issue with it closed off from airflow? Just wondering.

Man, I’d better build one of these for myself soon! They sure seem like an awesome build!



[Grifflyer]

So, I finished the Spitfire tonight. It's ready for its maiden flight in the morning. Here are the specs...

1) I went with 9g servos (the 5g servos are a pain to find cheaply right now. Thanks COVID-19).
2) I added a rudder to the build.
3) Emax 2205 2600kV motor.
4) 6x3 prop for the test tomorrow but I'm going to downsize to 5x4.5 when they arrive on Monday.
5) 3S 850 LiPo.
6) 20 amp ESC for now. I'd like to upgrade to a 30 amp. Again... stock is an issue.
7) All in weight is 315 grams. That's going to go up a touch when I add the fairings at the wing root.
8) CG was right on the money with the battery tucked up front.

This was my first "complex" build and it was a ton of fun. I'm finally getting the hang of building these planes. I recently built the mini Mustang and it's one of my favorite airplanes to fly. The thing is a little rocket ship. I'll let you know how the flight goes.



Thanks! It fits perfectly. And thank you for designing a cool plane. One other quick question. This was my first build without a "power pack." Is ESC cooling an issue with it closed off from airflow? Just wondering.

That's awesome!! Do you have any pics?
I run a 30 amp esc and I haven't got any heat issues even though it doesn't get airflow.



[Cycle Pilot]

That's awesome!! Do you have any pics?
I run a 30 amp esc and I haven't got any heat issues even though it doesn't get airflow.

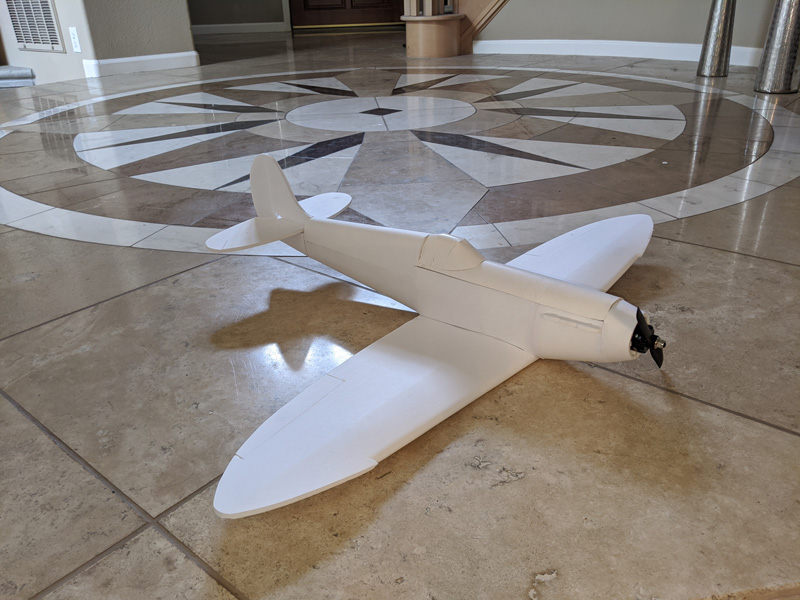

That's good to know about the ESC. I'm hoping the 20 amp works until I can get a 30 amp. Here's a picture...



[Cycle Pilot]

Maiden flight was a success. It wasn't as stable as the Mini Mustang. That thing is rock solid. CG is exactly where it needs to be so I'm guessing the control throws and expo were off so I dialed those back. Here's what I'm going with.

Ailerons: 20 degrees
Elevator: 17 degrees
Rudder: 18 degrees
Expo: 30%

I'll do another flight tomorrow. It's got a TON of power and looks so cool. Great airplane!



[Aviator08]

Paint is on.



[Aviator08]

Grifflyer do you have a graphic file for this aircraft?



[Grifflyer]

Paint is on.
View attachment 166478 View attachment 166479

She's gorgeous!!!

Grifflyer do you have a graphic file for this aircraft?

Yes I do
