*Unofficial* FT Simple Cub

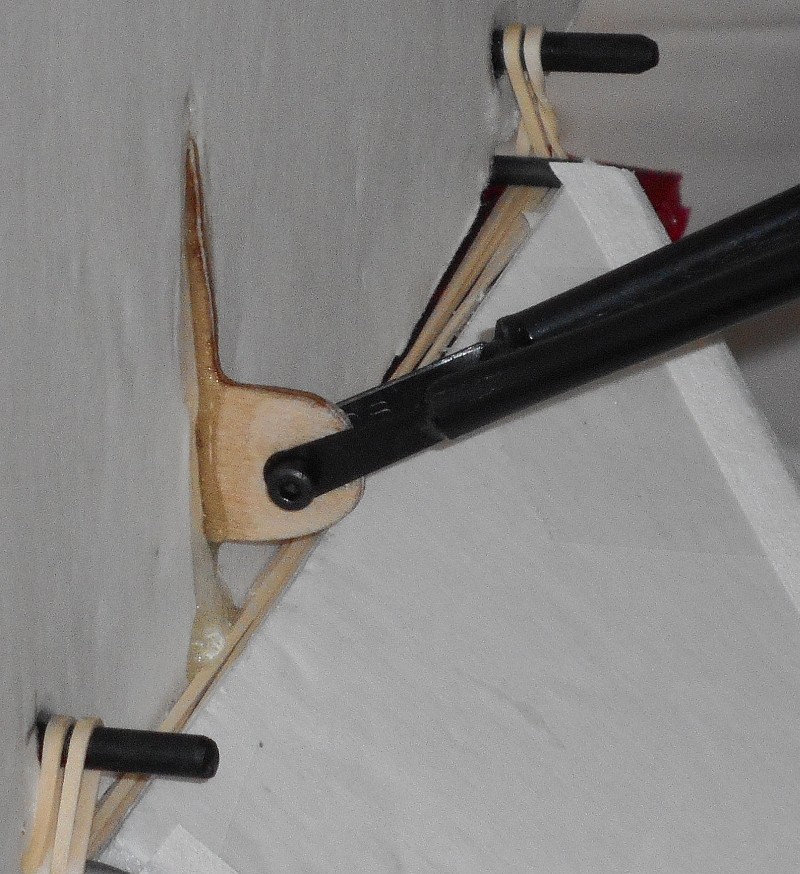

Went with rubber bands on the wing, bottom of the struts have a nut and bolt, top is a quick click control rod end. There is a foam
doubler where the ply tabs are mounted, They are epoxied in, they have holes in the embedded part for a better hold.






Here is my fleet - 3 simple cubs - a J2, a PA 18 super cub on floats and an almost finished E2 - still to do the landing gear details & wing struts. Hope to fly them soon when the weather allows. Also in the picture, my FT Pietenpol, Peanut-scale J2 and Stevens Pietenpol under construction - what a month!
Fleet.jpeg E2 2.jpeg E2 3.jpeg

Servo Arm Question?

Hey, I've been watching the vids for a couple of years now, and I finally jumped in and bought the Simple Cub. This is my first foam board build. I have a question, and I have searched for it, but been unable to find an answer.

In the build video, Josh uses the shortest arms for the servos with only 1 hole when centering them. Later in the vid when he is installing them, he puts the control wire in the middle holes on the servo arms. So my question is, which one's are correct? Thanks for your help.

I put the wire in the servo arm hole that is the same distance from the pivot point as the hole in the control horn to the hinge.
I found the ailerons were way too sensitive and moved the wire so I had the least amount of movement. Now it is still twitchy but tamed with some expo and rate changes. Flies more like a cub and not an Edge 3D plane.


Forster

Slow, low and dirty.
Hey, I've been watching the vids for a couple of years now, and I finally jumped in and bought the Simple Cub. This is my first foam board build. I have a question, and I have searched for it, but been unable to find an answer.

In the build video, Josh uses the shortest arms for the servos with only 1 hole when centering them. Later in the vid when he is installing them, he puts the control wire in the middle holes on the servo arms. So my question is, which one's are correct? Thanks for your help.
I moved mine so I could achieve the throw gauge movement for low rate with the amount of movement provided by the servo. I think I used the middle hole as well. My plan (if I ever find a minute to finish the ailerons) is to set the low deflection up as the regular rate and cut back 20% for the low rate while I'm getting used to the airplane. I'm admittedly not much of a pilot so I throw caution at everything.

That has been my experience as well and like you have been upping the wheel diameter to accommodate bumpy fields. Had not though about Timber tires but will give that a try this season. I have also had issues with the landing gear mount. I like the plane well enough to build another, but this time I will use to ply reinforcement around the gear slot and use 3d printed gear mounting instead of the foam board. Btw, Nice paint scheme.


Forster

Slow, low and dirty.
That has been my experience as well and like you have been upping the wheel diameter to accommodate bumpy fields. Had not though about Timber tires but will give that a try this season. I have also had issues with the landing gear mount. I like the plane well enough to build another, but this time I will use to ply reinforcement around the gear slot and use 3d printed gear mounting instead of the foam board. Btw, Nice paint scheme.
I'm in the process of learning by destruction with my Cub (#2 is already on the bench). I have the timber tires and built the steerable tailwheel with modeling plywood (just cut it to fit the taper with the hole aligned at the rudder pivot point, doubled the ply where the wire goes through to 1/4", and hot glued the wire to the rudder - so it goes rudder, plywood mount, trails about 1.5" and wheel) and I mounted the front wheels using the original wire and slot, but using plywood on both sides the wire. For Cub part deux, I'm going to make a slotted plywood sandwich of sorts to mount the gear wire in. The plan is to cut two 1/8" sections that fit the current gear slot and pieces of plywood 1/4" wide and the length of the slot (tapered at the bottom where the landing gear wire comes out). That gets epoxied together to form the gear mount and then gets mounted in the fuselage slot. I'll bend the landing gear wire so the outside of the wire fits inside the hole created by the 1/8"x1/4" spacers and extends 1/16" above the top of the plywood mount. Once the wire is inserted, I'd zip tie the gear wire in the plane just to hold it in. That way if the gear wire needs repair or replacement I can cut a zip tie and pull it. On my current Cub I bent the wire slightly forward to save props during grass field landings. That seems to make it balance better too.

Here are some pictures of my recent build of the FT SIMPLE CUB. My printed and glued on engine graphic looks great, shocks made from straws, and number temple which i spray bombed. entire plane was spray bombed. Tailwheel was a lego wheel which I upgraded to a 1/2"foam wheel now. Used a Coat Hanger for the landing gear and the dowel rods slide up and down inside the foam. 1000mah and 1300mah 3s batteries I will be using. Still have not flown it yet but looks great on the wall!
. sc1.jpg

Last edited:

Forster

Slow, low and dirty.
Couple of flights yesterday, some observations and some questions.
1. The timber 1.5M wheels worked great, even using the under diameter landing gear wire provided in the kit. With the B powerpack and a 1000mah battery I seemed to have plenty of power.
2. Full length Ailerons need way less movement for maiden flights with novice pilots (personal opinion).
3. I wouldn't mind another set screw on the engine mount. Mine came loose yesterday and fortunately I could hear it and land the plane before the engine came loose.

Questions:
Any opinions about splitting the flaps and ailerons or just using outboard ailerons?
Anyone using aft mounted tail servos? (Rather than the traditional mounting under the wing)

As an aside, after dialing back my aileron rates on the Cub I did the same thing to my Champ S+ which makes it much easier to fly in expert mode (due to my otherwise lacking ability).

Last edited:
Receiver Question

I have looked, but I have not been able to find an answer to this. I am new to flying and this is my first FT plane. I have a lemon receiver and I am not sure how to mount it. Can someone show me a pic of their receiver mounted in the power pack? Also what did you mount it with? Thanks :confused:


Forster

Slow, low and dirty.
I mounted mine alongside the inside of the fuselage with self-adhesive velcro. You can place it on the power pod as well (behind the ESC).


Forster

Slow, low and dirty.
Thanks for the help.
Sure. Don't know what your previous flying experience is, but the Simple Cub (with standard control throws) can be a handful at first. If you're using it as a trainer you can dial down the ailerons and rudder for the first couple flights (I think my ailerons are 1/2 the low gauge setting) to make it more "cub-like". I plan on using expo settings at some point and adding flaperons into the mix (about 1/2 flap) for landing. I don't need any help with take-offs, with the B pack motor, a 9x4.7 ARES prop and 1000mah battery this thing can take off in a couple of feet on grass (I'm using Timber 1.5M wheels).
