Here is my version:
2830 motor with a 9x6 prop using the 2200mah Ovonic 35C 3 cell battery
Landing gear wire was the handle from an old home depot bucket with 2.5" Dubro Low Bounce tiers
Steerable tail wheel assembly from Amazon
3D printed parts include the 7cyl radial engine (weight-96g), motor fire wall, wing struts, control horns
Vinyl decals designed in inkscape and printed on home printer
All parts covered with colored/clear packing tape using the Experimental Planes technique
Lower wing is held on with 2 nylon toilet tank bolts/nuts
The weight of the 3D printed engine perfectly places the CG right at the leading edge of the lower wing
Flying weight is 1.190Kg (2 lbs, 10 oz)
Now if these Central California coastal winds will die down a bit, I will maiden her.
The last pic is the real plane I modeled the livery from.
View attachment 223759 View attachment 223760 View attachment 223761 View attachment 223762 View attachment 223763 View attachment 223764

Older post I didn't notice, but that 3D printed motor looks Awesome! Whole build looks great. Trust your maiden went well? I bet you get lots on complements at the field.



[hunterdave99]

Thanks for the great plan. For some reason, I have to make all the strut support for the upper wing 1 1/4 longer to get some clearance from the fuselage

I ended up designing and 3D printing little attachments that glued to the fuselage and wings. The struts then are attached with small M2 screws and nuts. This makes the upper wing and struts removeable and i had already made the lower wing removeable with the plastic toilet bolts.



[hunterdave99]

Older post I didn't notice, but that 3D printed motor looks Awesome! Whole build looks great. Trust your maiden went well? I bet you get lots on complements at the field.

Flies well slow and scale looks great in the air. The 3D printed motor did restrict air to the motor a bit. It got hot and started to melt the 3d printed firewall. I opened up the front a little and drilled some small vent holes in the engine block and problem solved. The main gear bent too easily so i designed and printed a complete landing gear complete with a removable battery hatch. Good and strong now. The wide red stripes on the wing and fuselage i created with decal paper did fade so i replaced them with red packing tape and they look much better.



[hunterdave99]

I ended up getting reassigned from Vandenberg Space Force Base, CA to Wright Patterson Air Force Base, OH. Now i get to fly on the actual 5000' runway at Wright Field. The PT-17 looks good with the Air Force Museum in the background.



[Yankee2003]

I ended up getting reassigned from Vandenberg Space Force Base, CA to Wright Patterson Air Force Base, OH. Now i get to fly on the actual 5000' runway at Wright Field. The PT-17 looks good with the Air Force Museum in the background. View attachment 233272

Plus you get to go to that cool little hobby store across the street from the museum.



[Jonny Gum]

I ended up getting reassigned from Vandenberg Space Force Base, CA to Wright Patterson Air Force Base, OH. Now i get to fly on the actual 5000' runway at Wright Field. The PT-17 looks good with the Air Force Museum in the background. View attachment 233272

Looks great! Well done!



[Jonny Gum]

A motor from a C pack kit, with a 2200 3C battery. I think mine balanced with a maybe 1/2 oz of extra weight. It was cool when the upper wing came off, and it landed just fine. It's not super with rolls (it IS a biplane after all), but if you turn up your ailerons, it'll do some tricks.

could add a top wing aileron mod



[Jonny Gum]

CG located right on the leading edge worked great with mine. Found location in some balsa plans on Outerzone. Wing section would normally be semi-symetric, so I needed a bit of down trim, but CG feels good.
View attachment 223711 View attachment 223710
View attachment 223708

beautiful



[Jonny Gum]

View attachment 223692

great build!



[Jonny Gum]

Here is my version:
2830 motor with a 9x6 prop using the 2200mah Ovonic 35C 3 cell battery
Landing gear wire was the handle from an old home depot bucket with 2.5" Dubro Low Bounce tiers
Steerable tail wheel assembly from Amazon
3D printed parts include the 7cyl radial engine (weight-96g), motor fire wall, wing struts, control horns
Vinyl decals designed in inkscape and printed on home printer
All parts covered with colored/clear packing tape using the Experimental Planes technique
Lower wing is held on with 2 nylon toilet tank bolts/nuts
The weight of the 3D printed engine perfectly places the CG right at the leading edge of the lower wing
Flying weight is 1.190Kg (2 lbs, 10 oz)
Now if these Central California coastal winds will die down a bit, I will maiden her.
The last pic is the real plane I modeled the livery from.
View attachment 223759 View attachment 223760 View attachment 223761 View attachment 223762 View attachment 223763 View attachment 223764

Love that engine! Nice build!



[Jonny Gum]

You all are amazing! I'm seeing so many awesome builds of the Stearman, and I'm proud that this design is still alive! Thank you everyone!

I am currently wrapped up in college for flight training and maintenance education, but I hope to be spending a bit more time with the RC hobby soon. Unfortunately, I haven't checked this thread since last March, and I apologize that I have not seen yall's amazing builds until now.

Current Ideas- 40" C pack Pitts Special, 50" C pack Bird Dog, 65" M pack Pitts Special



[Combat20]

Here is my version:
2830 motor with a 9x6 prop using the 2200mah Ovonic 35C 3 cell battery
Landing gear wire was the handle from an old home depot bucket with 2.5" Dubro Low Bounce tiers
Steerable tail wheel assembly from Amazon
3D printed parts include the 7cyl radial engine (weight-96g), motor fire wall, wing struts, control horns
Vinyl decals designed in inkscape and printed on home printer
All parts covered with colored/clear packing tape using the Experimental Planes technique
Lower wing is held on with 2 nylon toilet tank bolts/nuts
The weight of the 3D printed engine perfectly places the CG right at the leading edge of the lower wing
Flying weight is 1.190Kg (2 lbs, 10 oz)
Now if these Central California coastal winds will die down a bit, I will maiden her.
The last pic is the real plane I modeled the livery from.
View attachment 223759 View attachment 223760 View attachment 223761 View attachment 223762 View attachment 223763 View attachment 223764

Can you share the .stl files used to make your PT-17?



[hunterdave99]

Can you share the .stl files used to make your PT-17?

I uploaded the parts onto Thingiverse:
https://www.thingiverse.com/thing:5853801/files

It was all stuff I just pieced together in Tinkercad.
Kind of crude but it works.
The radial engine is already on Thingiverse.



[f-35lover]

If someone told me that plane was a factory made I'd believe it! great job.



[toptecone]

Thanks Johnny! What would be a better way to spend summer vacation than to hole up in basement (dining room in my case) with hot glue gun
View attachment 175782
Had to make an investment for landing gear though
View attachment 175784

i built this and once I got enough weight in the nose for proper CG it fly great and looks good to.



[Fly for Pete's sake]

(GO TO PAGE 11 FOR PLANS AND BUILD VIDEO)


So I have always been around the real Stearman because my grandfather restores and flies them. I decided to make the Stearman because I had a balsa wood kit lying around for a rubber band powered model. I took the plans to Staples and got them scaled up to a 40 inch wingspan and built it. The fuselage uses a box surrounded by formers and outer skin to make a beautiful (completely foam board) fuselage. The wings use a new wingtip technique to make more realistic wingtips, and inside the wing is a box spar. This version only has ailerons on the bottom wing, just like the original, but still has plenty of aileron control. The paint scheme on the plane matches my grandfathers stearman- even the numbers on the side. All my plans are hand drawn but if anyone knows how to make online plans I would love to post them for everyone to use!

Note- I will bring this to Flite Fest Ohio 2019- See ya there!

Flight- This thing flies on rails! It flies amazing in calm weather, but gets bumped around a lot in the wind due to the second wing.

Specs- Power Pack B or C recommended, 40 inch wingspan, 4-5 sheets of foam to build, 9x6 wood prop is my favorite prop.
View attachment 134220
View attachment 134221
View attachment 134222
View attachment 134225

I'm no



[Fly for Pete's sake]

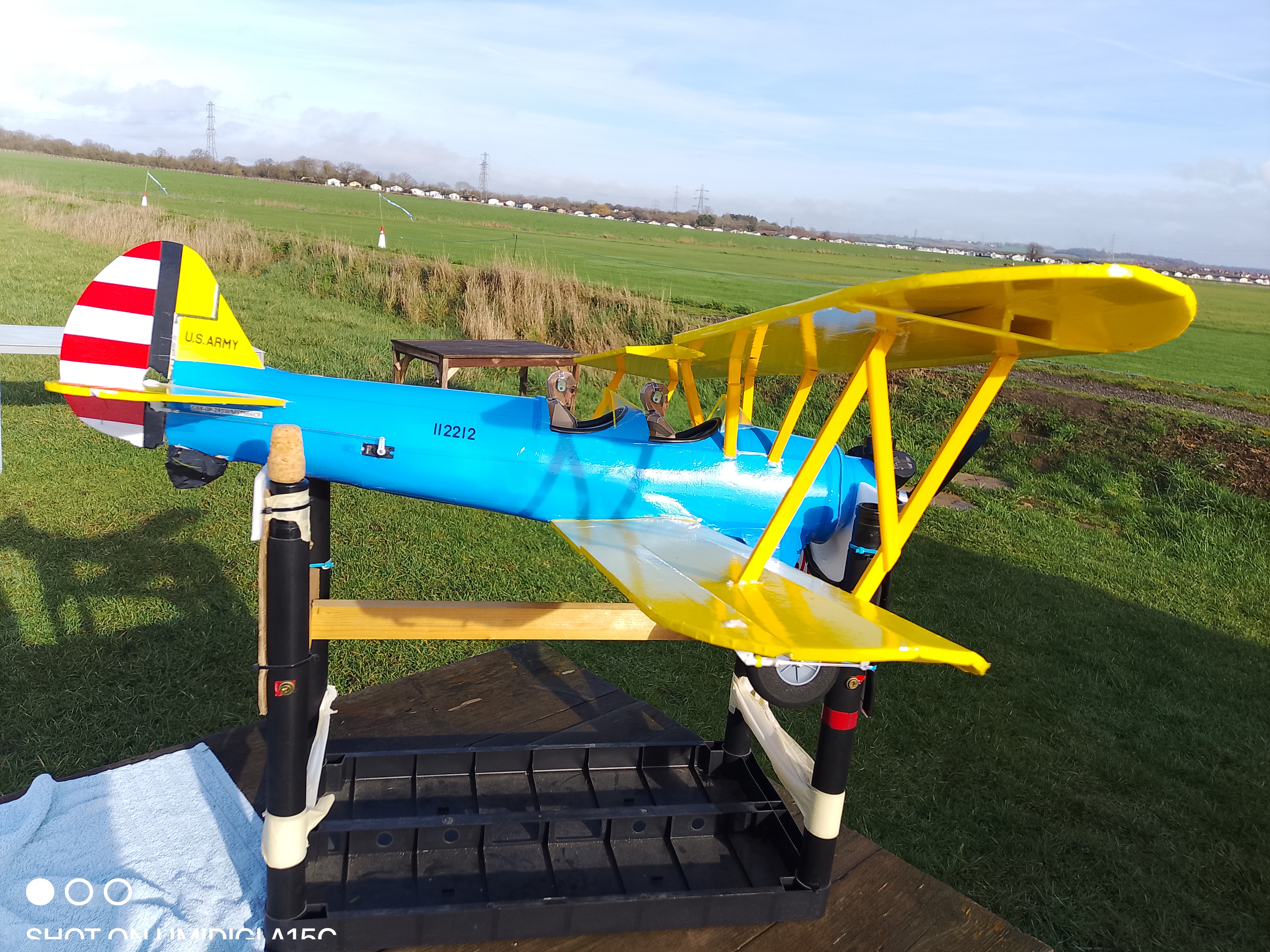

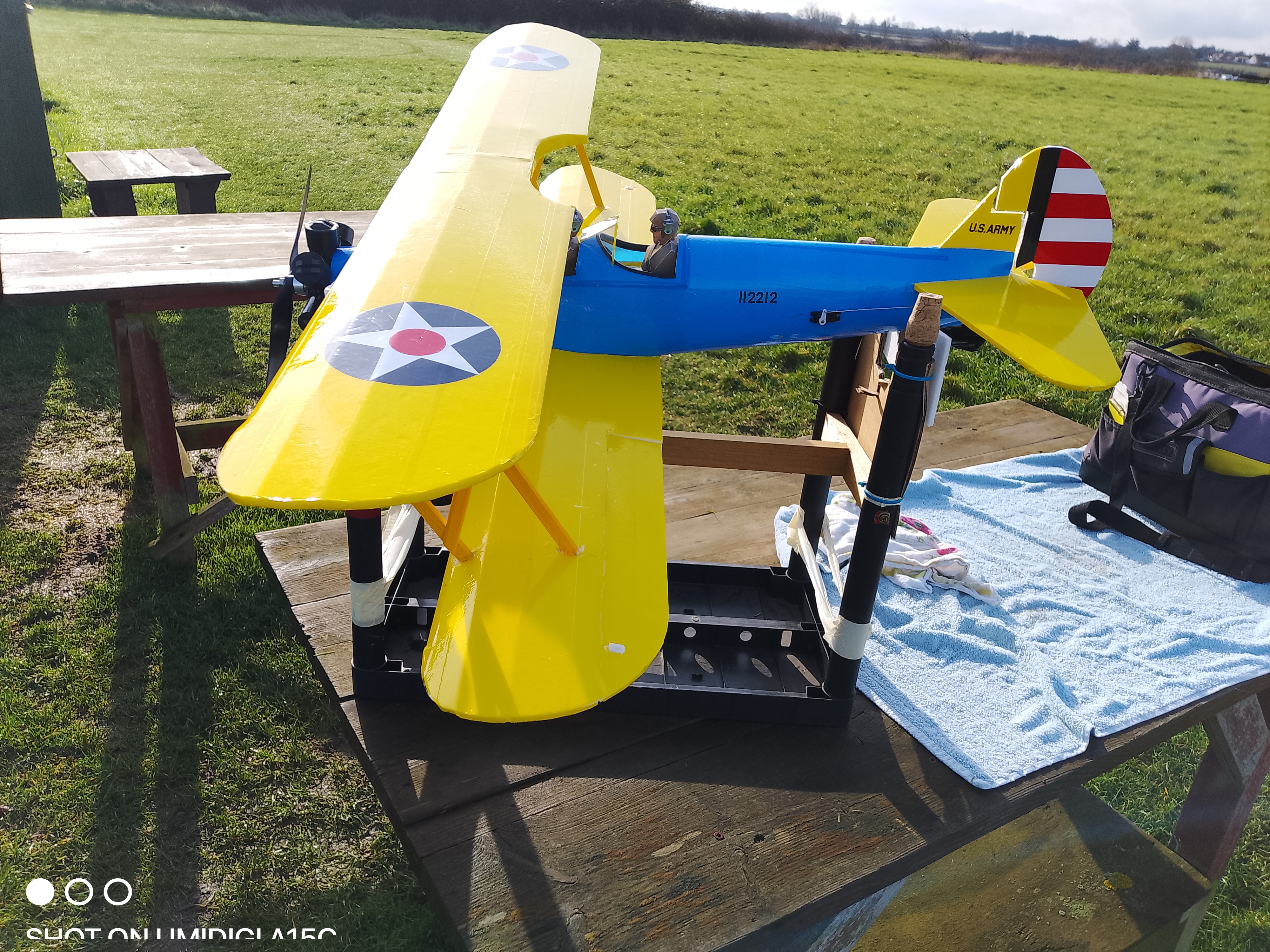

I built this plane - from your plans - over winter and enlarged it by %20
I skinned the fuse with 3mm Depron covered in blue wrapping tape. The decals are cut from coloured sticky back plastic. The pilots are 'paper'.
It looks/flies great.
Many thanks!!!!

NB. I had to lengthen the wing struts as the dimensions were a little too short.
Also DON'T put the engine cylinders on UNTIL you're happy with the prop/motor thrust angle???(I needed a little right/down thrust on maiden flight) Then I fitted the cylinders/disc.



[Mr NCT]

I built this plane - from your plans - over winter and enlarged it by %20
I skinned the fuse with 3mm Depron covered in blue wrapping tape. The decals are cut from coloured sticky back plastic. The pilots are 'paper'.
It looks/flies great.
Many thanks!!!!

NB. I had to lengthen the wing struts as the dimensions were a little too short.
Also DON'T put the engine cylinders on UNTIL you're happy with the prop/motor thrust angle???(I needed a little right/down thrust on maiden flight) Then I fitted the cylinders/disc.

That's beauty!
